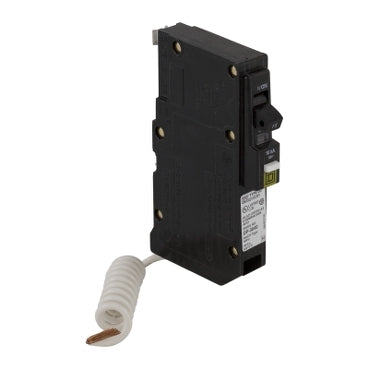

QO115AFI | Schneider Electric Mini Circuit Breaker, QO, 15A, 1 Pole, 120/240VAC, 10kA
- Regular price
- $127.00
- Sale price
- $127.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO115AFI
Description
The Schneider Electric QO115AFI is a 15A, 1-pole, 120/240VAC mini circuit breaker. Featuring a 10kA interrupting capacity, it provides reliable protection. This combo arc fault breaker, with pigtail wiring and plug-in mount, enhances electrical safety and is part of the QO series known for quality and performance.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO115AFI |
| Item | Plug In Circuit Breaker |
| AC Voltage Rating | 120/240 VAC |
| Amps | 15 |
| Circuit Breaker Type | Arc Fault Circuit Interrupter |
| DC Voltage Rating | Not Rated |
| Depth | 2.91" |
| Length | 3" |
| Max. AIR Rating | 10kA |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Number of Poles | 1 |
| Terminal Connection | Screw Clamp |
| Width | 0.75" |
Information About QO115AFI
The QO115AFI belongs to the Schneider Electric QO series of plug-in circuit breakers engineered for reliable overload, short circuit and arc fault protection. It operates at 120/240 VAC with a 15A rating and incorporates combo arc fault technology capable of detecting both parallel and series arcing conditions. The breaker includes pigtail wiring for secure panel connection, a compact profile for quick installation and a screw clamp terminal for strong conductor retention. Built to comply with electrical safety standards, the unit supports wire sizes from 14 to 8 AWG and delivers consistent performance in both new installations and retrofit panel upgrades.
Key Features:
- 15A, 1-Pole Configuration: Provides standard branch circuit protection for residential and commercial wiring systems.
- Combo Arc Fault Protection: Detects and mitigates both series and parallel arc faults, reducing fire risk and improving electrical safety.
- 10 kA Interrupting Rating: Ensures robust protection against high-level fault currents in compliant electrical panels.
- Plug-In Mount Design: Allows fast installation and replacement within QO series load centers without complex wiring changes.
- Pigtail Wiring Connection: Offers secure and reliable panel bonding with simplified termination.
- Wide Voltage Compatibility: Operates at 120/240 VAC for flexibility across common North American electrical systems.
- Durable QO Series Construction: Built with proven Schneider Electric manufacturing standards for long service life.
- Screw Clamp Terminal: Maintains strong conductor retention and supports wire sizes between 14 and 8 AWG.
The QO115AFI delivers the reliability and precision required for dependable branch circuit protection with advanced arc fault mitigation.
