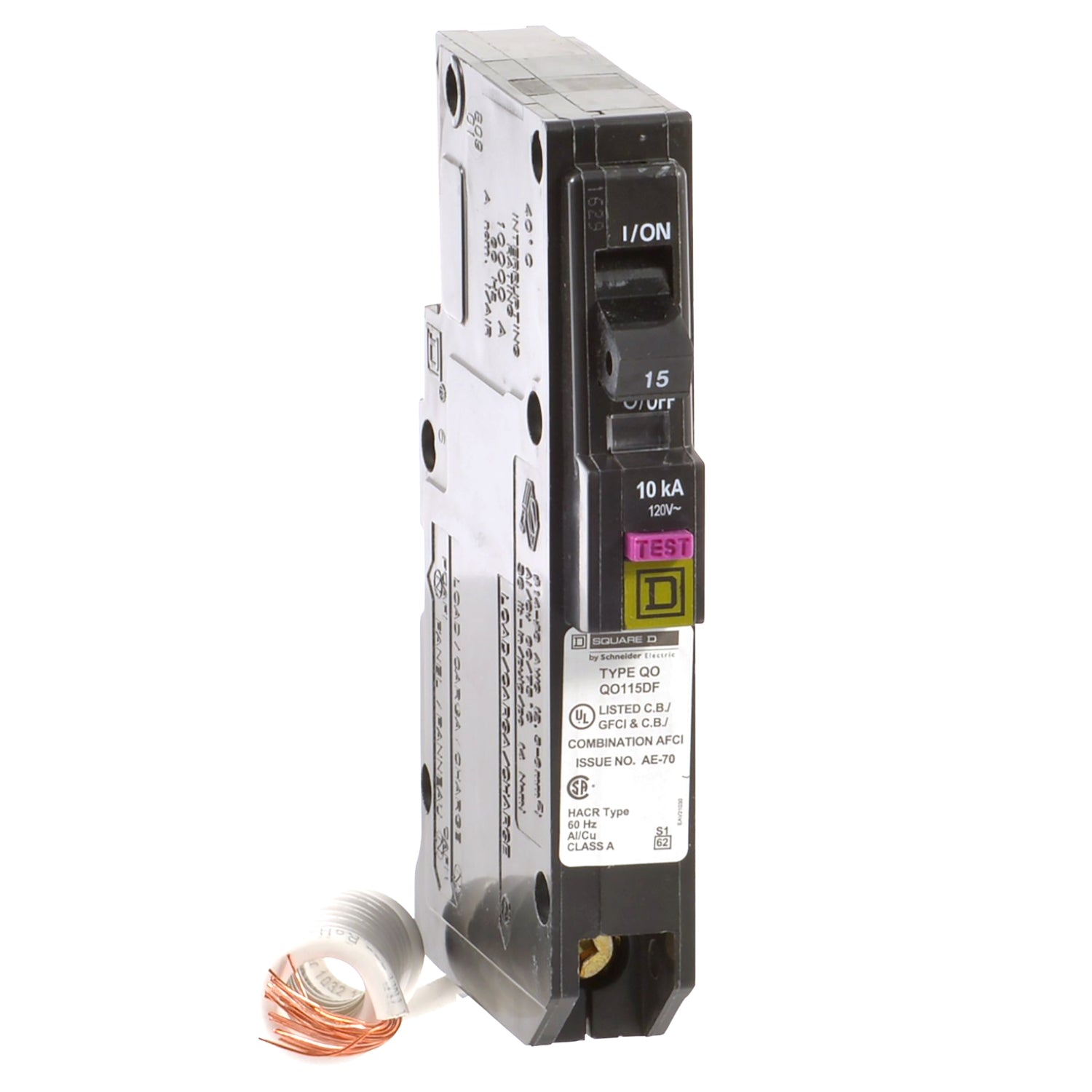

QO115DF | Schneider Electric Mini Circuit Breaker
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO115DF
Description
The QO115DF Mini Circuit Breaker, part of the QO series, is a 15A, 1-pole thermal magnetic circuit breaker designed to provide overcurrent protection and switching capability for both AC and DC systems. Featuring an over center, trip-free toggle mechanism, it ensures quick make, quick break action and includes positive handle indication for operational clarity.
Equipped with VisiTrip trip indication, this circuit breaker offers visual confirmation when tripped, indicating interruption of the circuit. It supports a comprehensive range of features and factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, enhancing its versatility.
Technical Specifications
|
Part # |
QO115DF |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
15 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Combination ARC-fault and ground fault |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Connections Terminals |
Pigtail neutral |
|
Interrupt Rating |
10 kA at 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.76 in (121 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.60 lb(US) (0.272 kg) |
Information About QO115DF
The QO115DF Mini Circuit Breaker, part of the QO series by Square D™, is designed for providing overcurrent protection and switching capabilities in both AC and DC electrical systems. This 1-pole thermal magnetic circuit breaker features an over-center, trip-free toggle mechanism ensuring quick make and break actions with positive handle indication. It incorporates VisiTrip trip indication, offering a visual signal when the breaker trips and interrupts the circuit.
Designed with versatility, the QO115DF supports various factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, enhancing its functionality across different applications. Rated at 15A and 120VAC, this circuit breaker boasts a robust 10kA breaking capacity suitable for handling electrical faults effectively. It is designed for plug-in mounting, facilitating easy installation and maintenance.
One of the notable features of the QO115DF is its dual-function capability with a pigtail, providing combined arc fault and ground fault protection. This enhances safety by detecting and mitigating both arc faults and ground faults, thereby reducing the risk of electrical fires and shocks.
