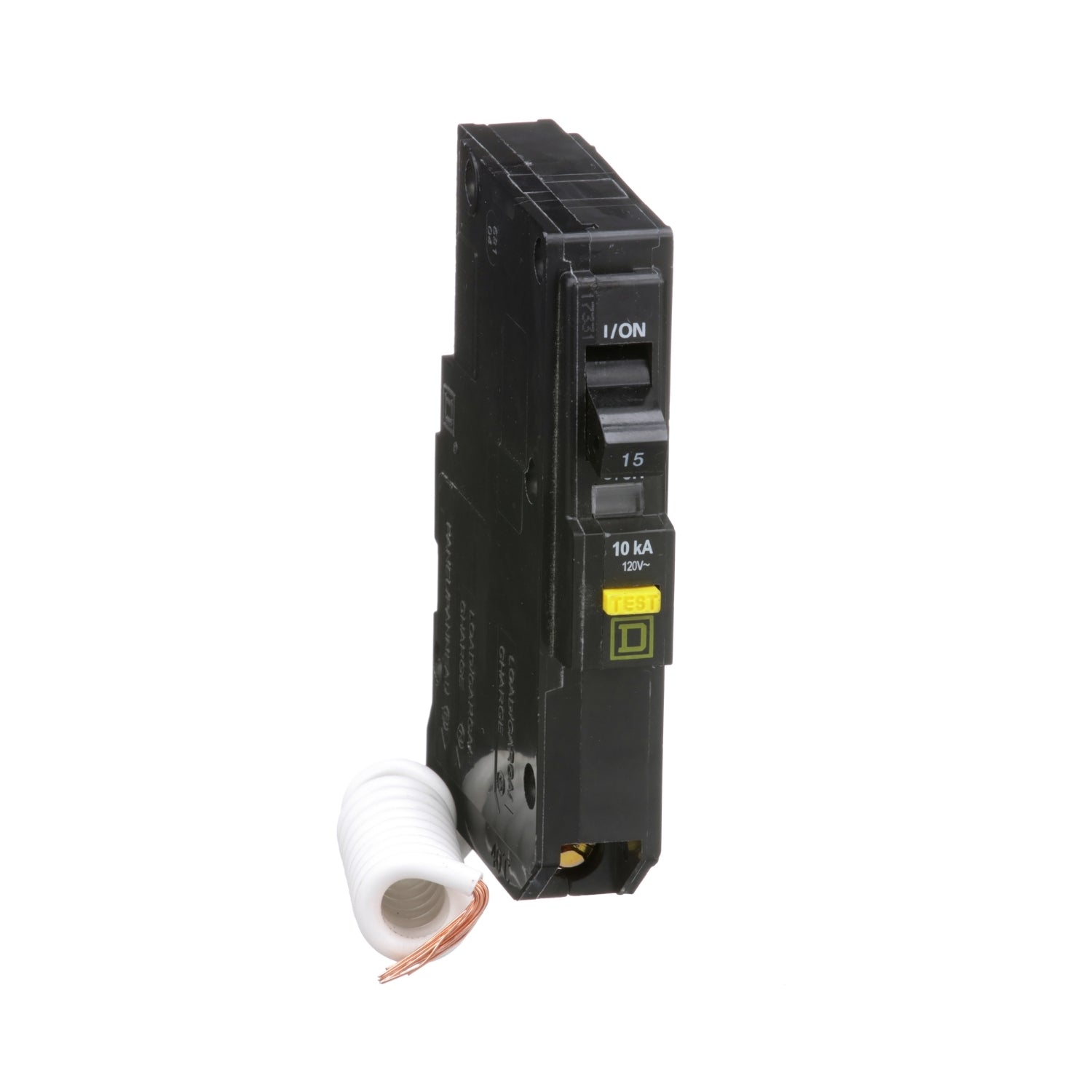

QO115GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO115GFI
Description
Square D Qwik-Gard Circuit Breaker, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO/100A Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 0.75 in W x 2.91 in D Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO115GFI |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 15 A |
| Connection type | Pressure Plate |
| Dimensions | 2.91 in L x 0.75 in W x 4.12 in H |
| Frame | QO/100A |
| Frequency Rating | 50/60, 60, 60 Hz |
| Interrupt Rating | 10 kA |
| Mounting type | Plug-On |
| Number of Poles | 1 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 40 deg C |
| Trip Type | K-Curve/Thermal Magnetic, Thermal Magnetic, Thermal/Magnetic |
| Type | Class A Ground Fault |
| Voltage Rating | 120 VAC |
| Wire Size | 12 to 8 AWG, 14 to 8 AWG |
Information About QO115GFI
The QO115GFI from Schneider Electric is a compact and specialized Mini Circuit Breaker designed for enhanced safety in residential and commercial electrical systems. With a 15 A amperage rating and a voltage rating of 120 VAC, it provides essential circuit protection with integrated Class A ground fault protection.
This 1-pole, single-phase breaker features a pressure plate connection type, ensuring secure and reliable wire connections suitable for wire sizes ranging from 12 to 8 AWG for aluminum and 14 to 8 AWG for copper. Its dimensions are 2.91 inches in length, 0.75 inches in width, and 4.12 inches in height, making it space-efficient and suitable for Plug-On mounting types.
The QO115GFI utilizes a thermal magnetic trip mechanism, offering effective protection against overloads and short circuits. It operates at a frequency rating of 50/60 Hz and has an interrupt rating of 10 kA, ensuring reliable performance in interrupting fault currents and maintaining electrical system safety.
Designed with a temperature rating of 40 degrees Celsius, the QO115GFI is engineered to operate reliably in typical environmental conditions found in residential and commercial settings. It meets stringent safety standards for ground fault protection (GFCI), making it ideal for installations where protection against ground faults is critical, such as kitchens, bathrooms, and outdoor areas.
The QO115GFI is part of Schneider Electric's comprehensive range of Mini Circuit Breakers, known for their durability, efficiency, and compliance with safety standards, ensuring dependable circuit protection in residential and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
