Part #: QO115PAF Manufactured by: Schneider Electric
Regular price
$72.00
Sale price
$72.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The QO115PAF is a 15A, 1-pole mini circuit breaker from the QO series, specifically designed for providing robust overcurr...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: QO115PAF
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: QO115PAF

Description / Specifications

Description

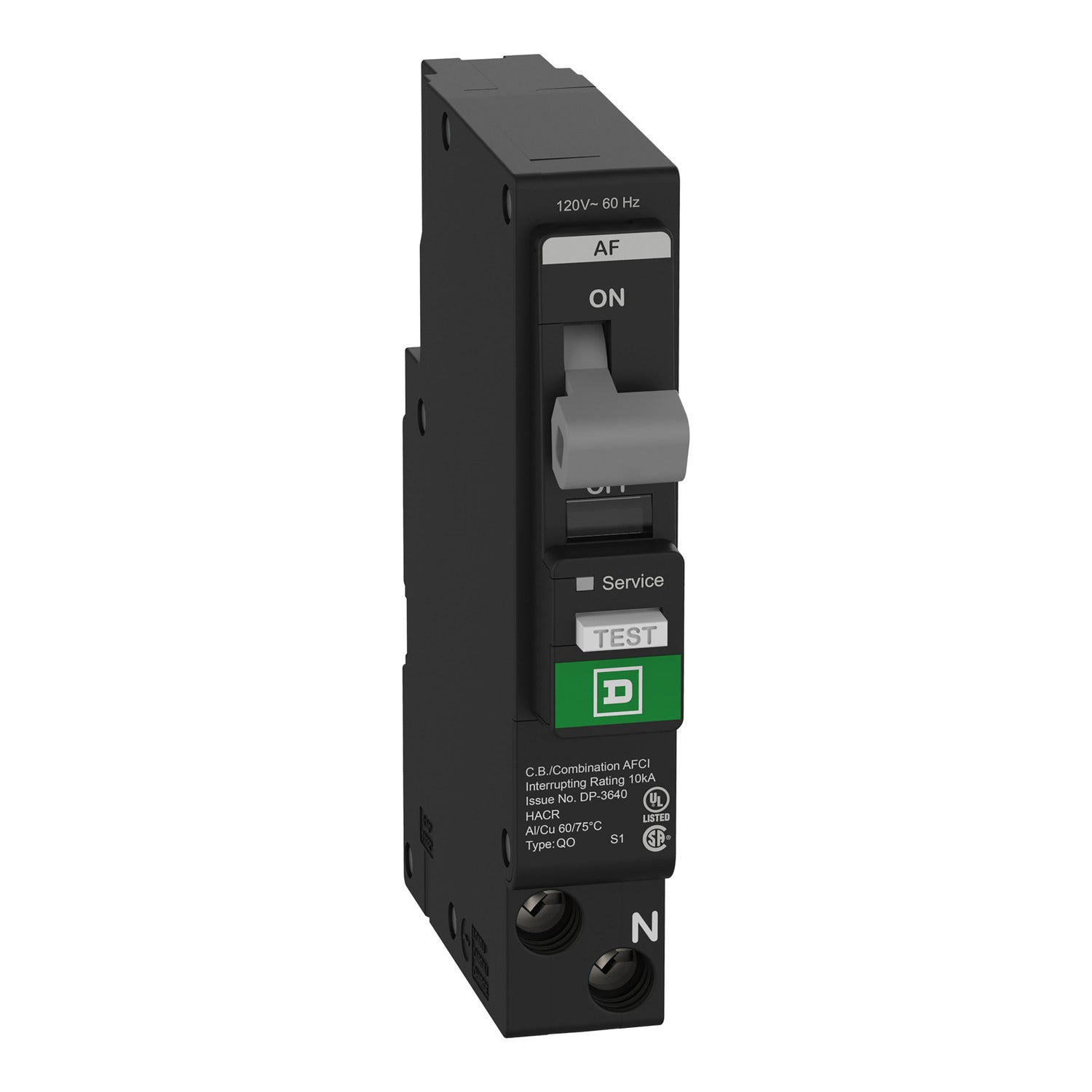

The QO115PAF is a 15A, 1-pole mini circuit breaker from the QO series, designed for providing overcurrent protection and switching in both AC and DC systems. Featuring a thermal magnetic mechanism, it incorporates an over center, trip-free toggle for quick make and break action, along with positive handle indication. The breaker includes VisiTrip trip indication for visual notification of tripped circuits.

Rated for 15A at 120VAC, this QO circuit breaker offers a 10kA breaking capacity and utilizes plug-in mounting. It is equipped with a combination arc fault feature and utilizes a plug-on neutral connection method. Additional features include compatibility with a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches.





Technical Specifications


Part #

QO115PAFGF

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Product Type

Miniature circuit-breaker

Range

QO

Current Rating

15 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Combination ARC-fault

Ratings

HACR rated

Electrical Connection

Pressure plate

Connections Terminals

Plug-on neutral

Interrupt Rating

10 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper



AWG 12...AWG 8 aluminium

Tightening Torque

35.40 lbf.in (4 N.m)

Height

2.72 in (69.08 mm)

Width

0.75 in (19.05 mm)

Depth

4.10 in (104.14 mm)

Net Weight

0.35 lb(US) (0.159 kg)





Information About QO115PAF

The QO115PAF is a miniature circuit breaker from the QO series, designed to provide overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism that ensures quick make and break actions, accompanied by positive handle indication for operational clarity. They are equipped with VisiTrip trip indication, offering visual confirmation when the breaker trips to interrupt the circuit.

Rated at 15A for 120VAC applications, the QO115PAF boasts a robust 10kA breaking capacity, suitable for handling potentially high fault currents. It is designed for plug-in mounting, facilitating straightforward installation and maintenance procedures. Notably, this model integrates a combination arc fault feature along with a plug-on neutral connection method, enhancing safety and convenience in residential and commercial electrical installations.

QO circuit breakers, including the QO115PAF, adhere to stringent safety standards, being UL Listed under UL File E84967 and CSA Certified under CSA Master Contract 153555. They are recognized for their reliability in providing essential electrical protection and are compatible with a comprehensive range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches.
