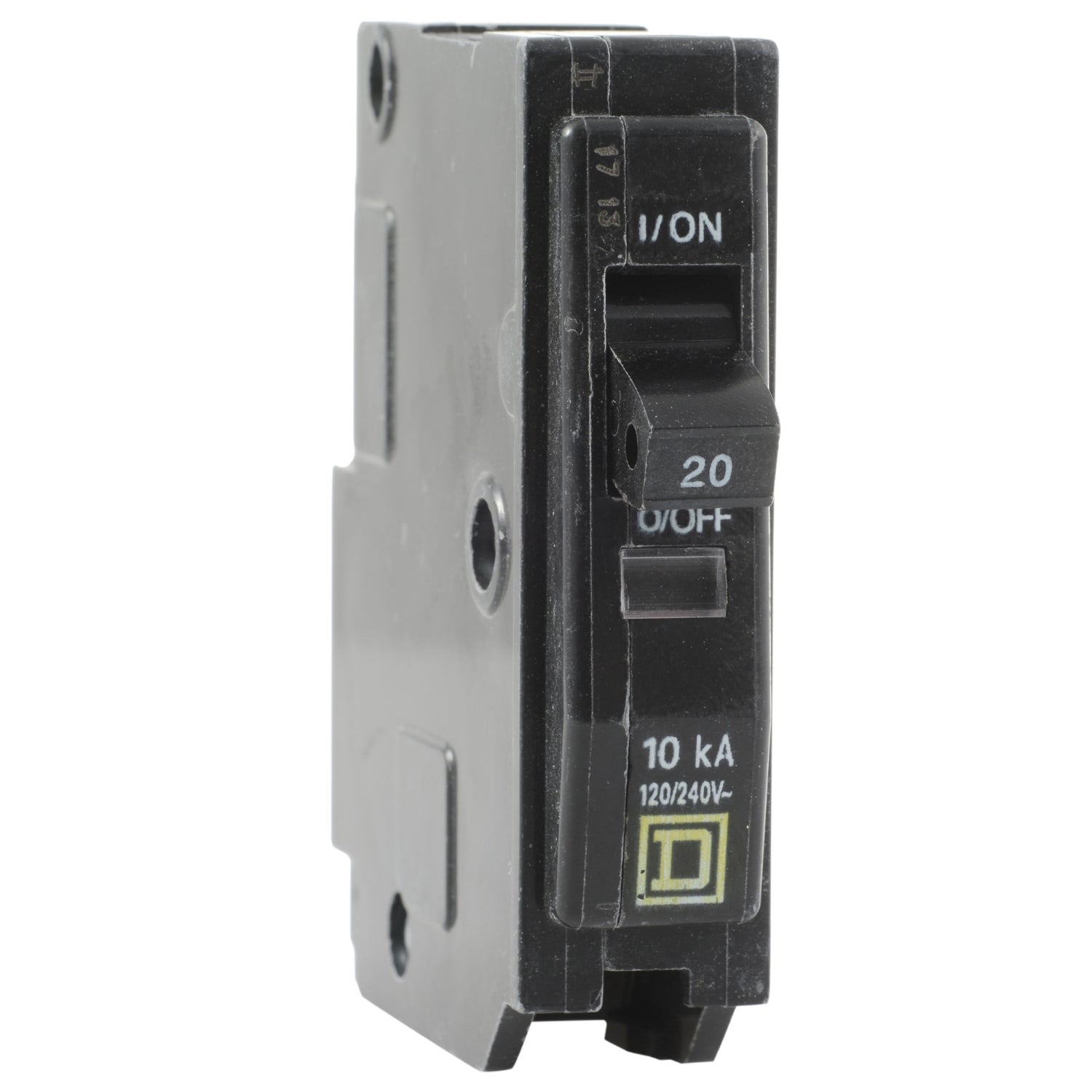

QO120 | Schneider Electric Mini Circuit Breaker
- Regular price
- $29.00
- Sale price
- $29.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO120
Description
The QO120 is a mini circuit breaker designed for overcurrent protection and switching in both AC and DC systems. It features a one-pole configuration with a thermal magnetic mechanism, offering reliable operation. Equipped with an over-center, trip-free toggle mechanism, it ensures quick make and quick break action, with positive handle indication for ease of use.
Additionally, the QO120 includes VisiTrip trip indication, providing a visual signal when the circuit breaker has tripped, indicating interruption of the circuit. It comes with a range of features and factory-installed accessories, such as shunt trips, auxiliary switches, and alarm switches, enhancing its functionality and versatility.
Technical Specifications
|
Part # |
QO120 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.25 lb(US) (0.113 kg) |
|
Ambient Rating |
104 °F (40 °C) |
Information About QO120
The QO120 Mini Circuit Breaker belongs to the QO and QOB series, designed to offer overcurrent protection and switching functionality for both AC and DC systems. These circuit breakers feature an over-center, trip-free toggle mechanism with quick make and quick break actions, along with positive handle indication for added safety. Additionally, they incorporate VisiTrip trip indication, providing a visual signal when the circuit breaker has tripped, indicating an interruption in the circuit.
These circuit breakers come with a comprehensive range of features and support for factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, enhancing their versatility and adaptability to various applications.
The QO120 Mini Circuit Breaker is specifically a 1-pole device with a current rating of 20A at 120/240VAC, making it suitable for a wide range of electrical systems. With a breaking capacity of 10kA, this unit ensures reliable protection against overcurrent events. Its plug-in mounting configuration facilitates easy installation and maintenance.
