QO120DF | Schneider Electric Mini Circuit Breaker
- Regular price
- $150.00
- Sale price
- $150.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO120DF
Description

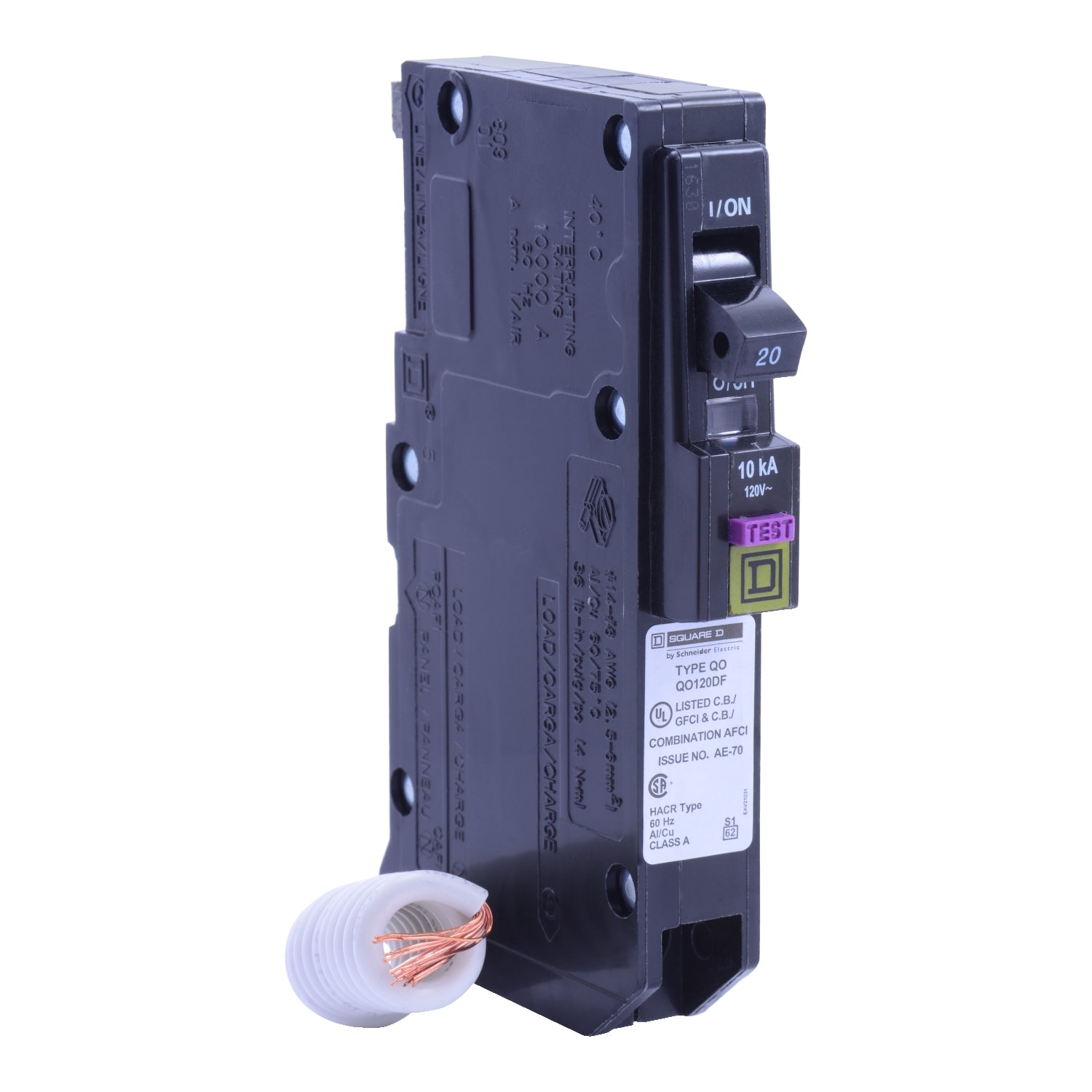

The QO120DF is a mini circuit breaker belonging to the QO series, featuring a one-pole configuration and a current rating of 20A. Designed for use in 120VAC systems, it provides overcurrent protection and switching capabilities for both AC and DC applications. Equipped with a thermal magnetic trip mechanism, it offers an over-center, trip-free toggle mechanism with quick make and quick break action, along with positive handle indication for clear status identification.
Additionally, the QO120DF includes VisiTrip trip indication, offering a visual indication when the circuit breaker has tripped and interrupted the circuit. This unit is capable of withstanding a breaking capacity of 10kA. It features plug-in mounting for convenient installation.
Furthermore, the QO120DF boasts a dual function feature with pigtail, providing combination arc fault and ground fault protection. This enhances safety by addressing both types of faults in the electrical system.
Technical Specifications
|
Part # |
QO120DF |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Combination ARC-fault and ground fault |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Connections Terminals |
Pigtail neutral |
|
Interrupt Rating |
10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.76 in (121 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.60 lb(US) (0.272 kg) |
Information About QO120DF
The QO120DF is a miniature circuit breaker within the QO series, featuring a single-pole configuration with a current rating of 20A. Engineered to provide overcurrent protection and switching capabilities for both AC and DC systems, QO and QOB thermal magnetic circuit breakers offer a versatile solution for various electrical applications.
Equipped with an over-center, trip-free toggle mechanism, these circuit breakers ensure quick make and quick break action, enhancing operational efficiency. Positive handle indication provides clear status identification, while VisiTrip trip indication offers a visual signal when the circuit breaker has tripped and interrupted the circuit.
QO circuit breakers are designed with a comprehensive range of features, including factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches. This ensures flexibility and customization options to meet specific application requirements.
The QO120DF is specifically rated for 120VAC systems, offering a breaking capacity of 10kA. Its plug-in mounting type facilitates convenient installation, enhancing efficiency and reducing downtime during maintenance.
