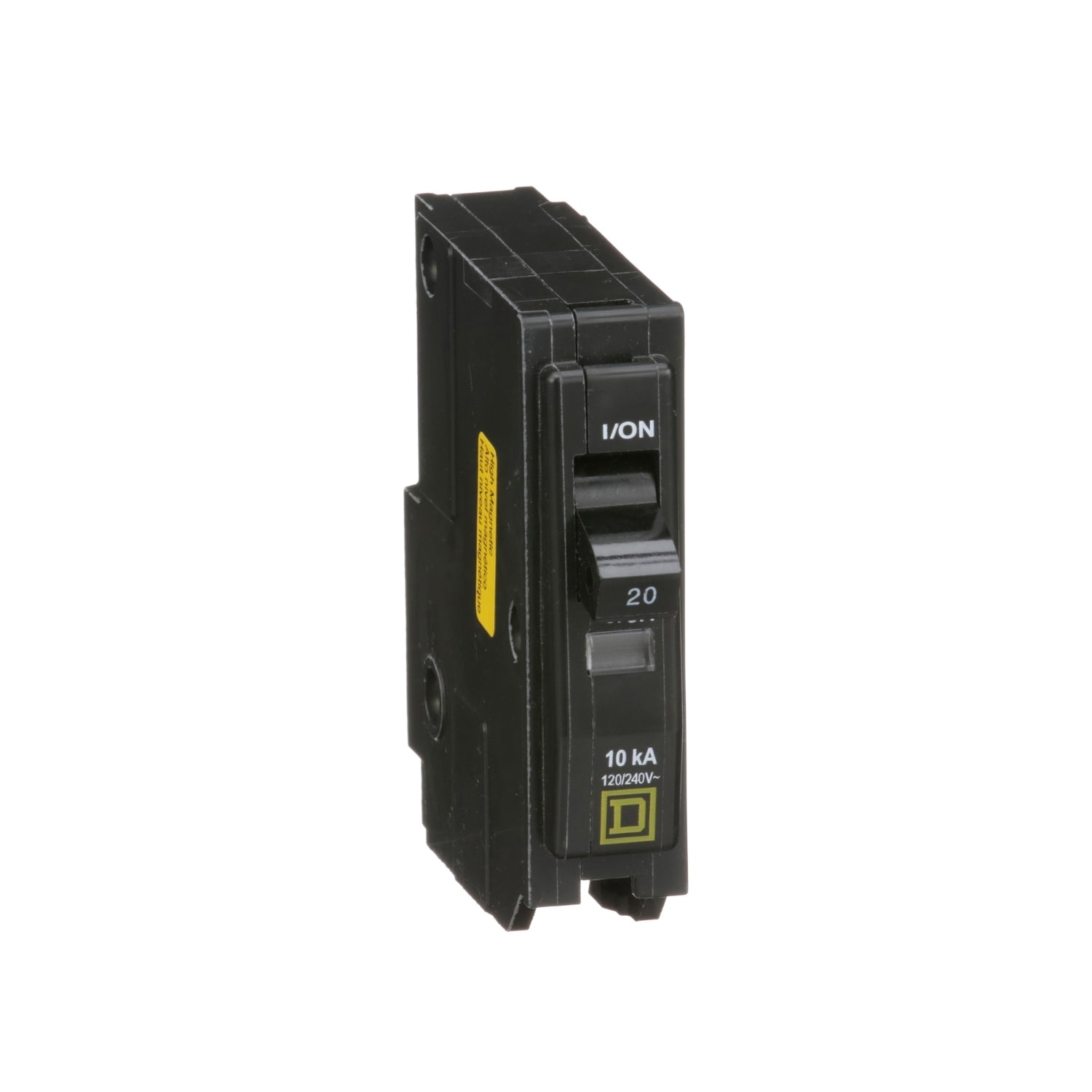

Product Description P/N: QO120HM
Description
The QO120HM is a single-pole Mini Circuit Breaker from the QO series, designed for reliable overcurrent protection and switching in both AC and DC electrical systems. Featuring a thermal-magnetic mechanism, these circuit breakers utilize an over-center, trip-free toggle action with quick make and break capabilities, alongside positive handle indication for operational status. The VisiTrip trip indication offers a visual cue when the breaker has tripped, signaling interruption in the circuit.
Technical Specifications
|
Part # |
QO120HM |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
High magnetic |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA @ 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.27 lb (0.122 kg) |
Information About QO120HM
The QO120HM Mini Circuit Breaker, part of the QO series by Schneider Electric, is designed to provide overcurrent protection and switching capabilities for AC and DC electrical systems. These thermal magnetic circuit breakers are available in one, two, and three pole configurations. They feature an over-center, trip-free toggle mechanism with quick make and quick break actions, ensuring reliable operation. Additionally, they include a positive handle indication and VisiTrip trip indication, offering a visual alert when the circuit breaker has tripped.
Specifically, the QO120HM is a 1-pole circuit breaker rated at 20A and operates at 120VAC. It is designed for plug-in mounting, facilitating straightforward installation and replacement. This unit provides a high magnetic feature and has a breaking capacity of 10kA at 120V AC, suitable for protecting electrical circuits from overloads and short circuits.
Schneider Electric offers a comprehensive range of factory-installed accessories for QO circuit breakers, such as shunt trips, auxiliary switches, and alarm switches, enhancing their functionality and versatility in various applications.
