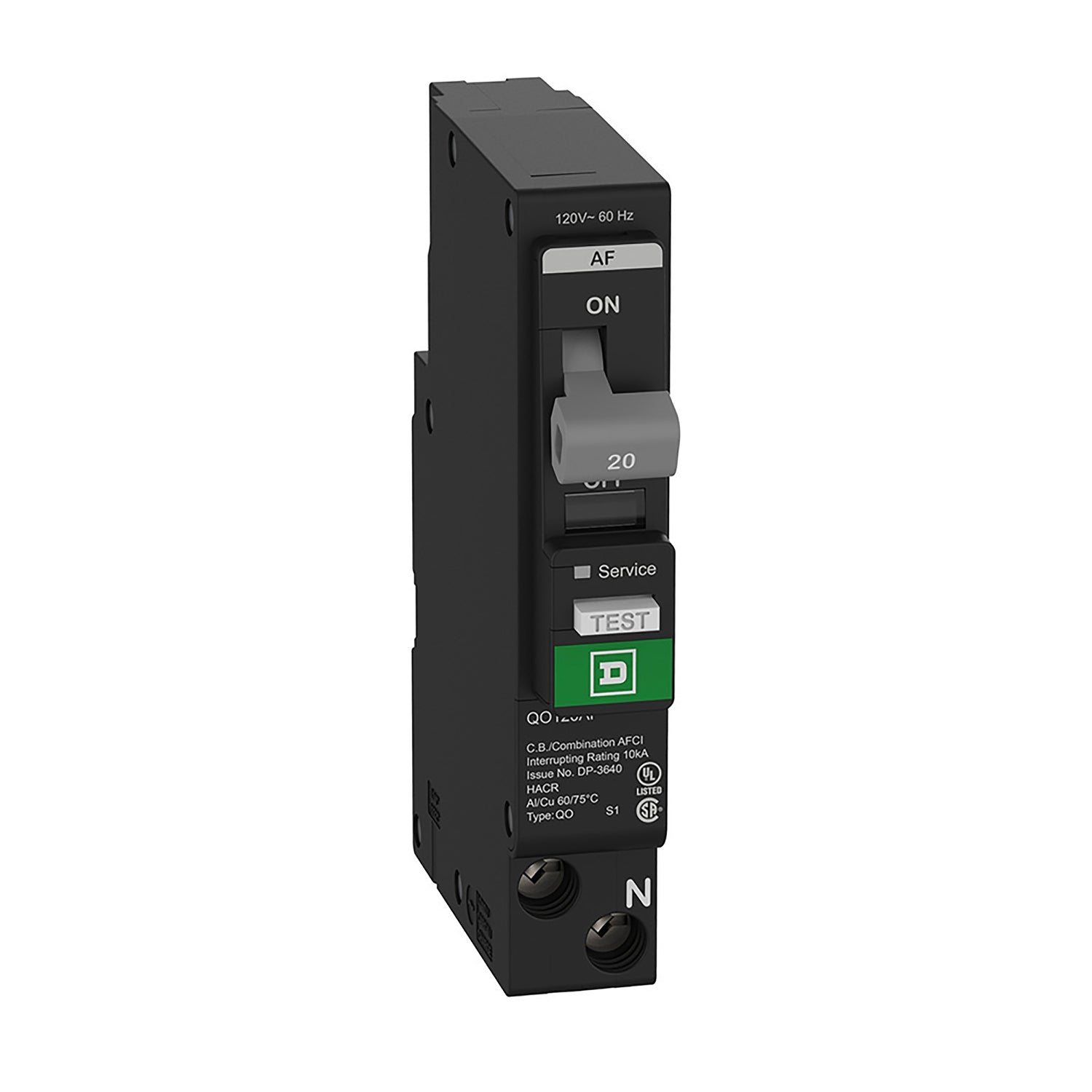

QO120PAF | Schneider Electric Mini Circuit Breaker
QO120PAF | Schneider Electric Mini Circuit Breaker
Part #: QO120PAF Manufactured by: Schneider Electric

QO120PAF | Schneider Electric Mini Circuit Breaker

Regular price
$92.00
Sale price
$92.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The QO120PAF is a Mini Circuit Breaker belonging to the QO series, featuring a 20A current rating and 1 pole configuration...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QO120PAF
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QO120PAF | Schneider Electric Mini Circuit Breaker
    QO120PAF | Schneider Electric Mini Circuit Breaker
QO120PAF | Schneider Electric Mini Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QO120PAF

Description / Specifications

Description

The QO120PAF is a Mini Circuit Breaker belonging to the QO series, designed for providing overcurrent protection and switching in both AC and DC systems. Featuring an over-center, trip-free toggle mechanism, these circuit breakers offer quick make and break actions with positive handle indication for ease of operation. They are equipped with VisiTrip trip indication, offering a visual signal when the circuit breaker trips and interrupts the circuit.

Technical Specifications

Part #

QO120PAFGF

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Combination ARC-fault

Ratings

HACR rated

Electrical Connection

Pressure plate

Interrupt Rating

22 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper

Tightening Torque

40.71 lbf.in (4.6 N.m)

Height

2.72 in (69.08 mm)

Width

0.75 in (19.05 mm)

Depth

4.10 in (104.14 mm)

Net Weight

0.35 lb(US) (0.159 kg)



Information About QO120PAF


QO120PAF is a Mini Circuit Breaker within the QO range, featuring a 20A current rating and 1 pole configuration. QO and QOB circuit breakers are versatile thermal magnetic devices designed to deliver overcurrent protection and facilitate switching operations in both AC and DC electrical systems. They are equipped with an over center, trip-free toggle mechanism, ensuring rapid make and break actions with a positive handle indication for enhanced operational safety. Additionally, these circuit breakers feature VisiTrip trip indication, providing a visual signal when the breaker trips and interrupts the circuit.

The product line offers a comprehensive array of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, catering to diverse application requirements. Specifically, the QO120PAF model is a single-pole circuit breaker rated at 20A for operation at 120VAC. It boasts a 10kA breaking capacity, ensuring efficient protection against overcurrent events. Furthermore, its plug-in mounting configuration facilitates convenient installation.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The QO120PAF is a Mini Circuit Breaker belonging to the QO series, designed for providing overcurrent protection and switching in both AC and DC systems. Featuring an over-center, trip-free toggle mechanism, these circuit breakers offer quick make and break actions with positive handle indication for ease of operation. They are equipped with VisiTrip trip indication, offering a visual signal when the circuit breaker trips and interrupts the circuit.

Technical Specifications

Part #

QO120PAFGF

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Combination ARC-fault

Ratings

HACR rated

Electrical Connection

Pressure plate

Interrupt Rating

22 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper

Tightening Torque

40.71 lbf.in (4.6 N.m)

Height

2.72 in (69.08 mm)

Width

0.75 in (19.05 mm)

Depth

4.10 in (104.14 mm)

Net Weight

0.35 lb(US) (0.159 kg)



Information About QO120PAF


QO120PAF is a Mini Circuit Breaker within the QO range, featuring a 20A current rating and 1 pole configuration. QO and QOB circuit breakers are versatile thermal magnetic devices designed to deliver overcurrent protection and facilitate switching operations in both AC and DC electrical systems. They are equipped with an over center, trip-free toggle mechanism, ensuring rapid make and break actions with a positive handle indication for enhanced operational safety. Additionally, these circuit breakers feature VisiTrip trip indication, providing a visual signal when the breaker trips and interrupts the circuit.

The product line offers a comprehensive array of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, catering to diverse application requirements. Specifically, the QO120PAF model is a single-pole circuit breaker rated at 20A for operation at 120VAC. It boasts a 10kA breaking capacity, ensuring efficient protection against overcurrent events. Furthermore, its plug-in mounting configuration facilitates convenient installation.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
