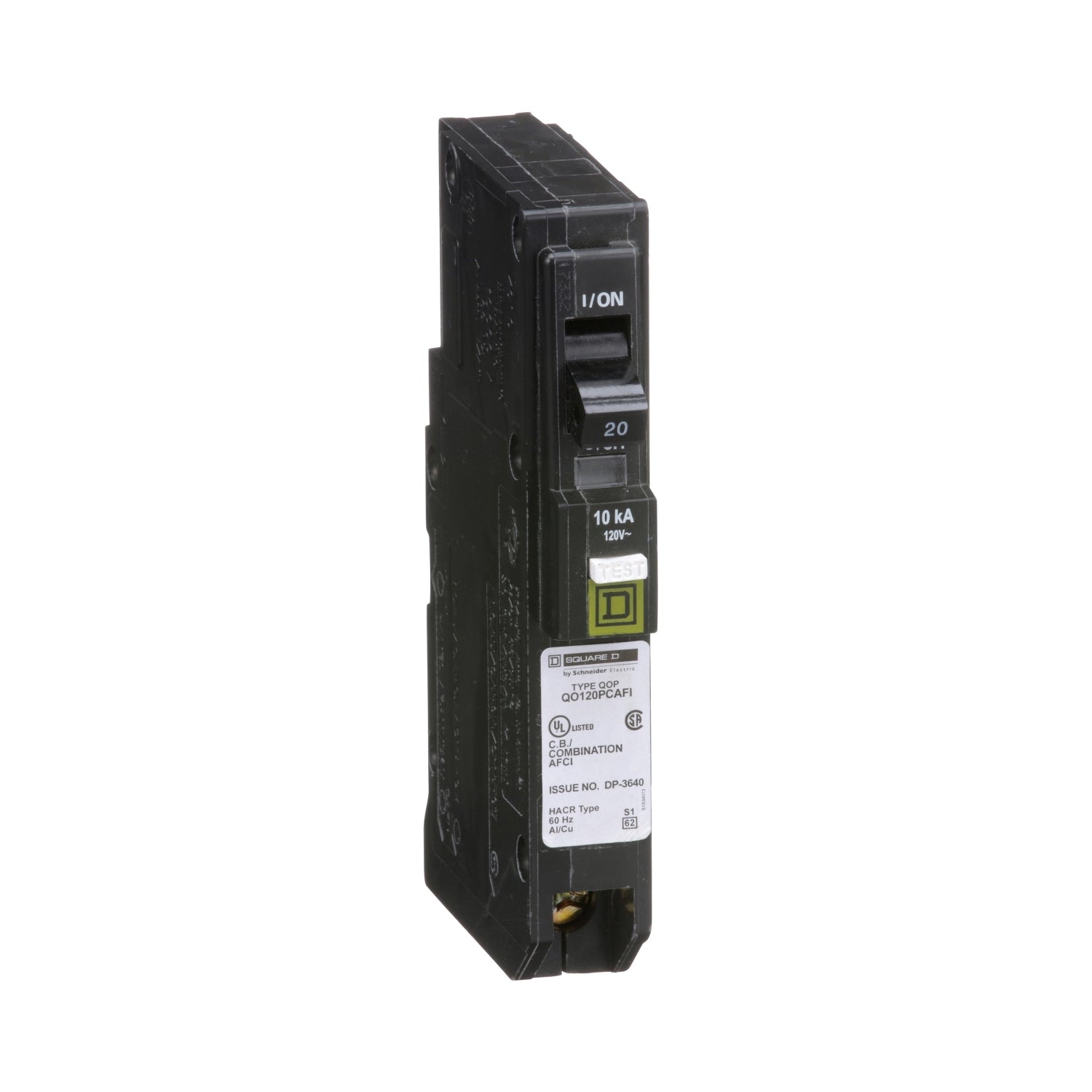

QO120PCAFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $52.00
- Sale price
- $52.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO120PCAFI
Description
The QO120PCAFI Mini Circuit Breaker from Schneider Electric's QO series is designed to provide robust overcurrent protection and switching capabilities for both AC and DC electrical systems. This 1-pole breaker features a thermal magnetic mechanism with an over-center, trip-free toggle for quick make and break actions, ensuring reliable operation with positive handle indication. The VisiTrip feature offers clear visual indication when the circuit breaker trips, effectively interrupting the circuit to prevent damage from overloads and short circuits.
Rated at 20A and 120VAC, the QO120PCAFI Mini Circuit Breaker supports a breaking capacity of 10kA and features plug-in mounting for straightforward installation and maintenance. It includes a combination arc fault protection mechanism with plug on neutral, enhancing safety by detecting and mitigating arc faults that could lead to fires.
Technical Specifications
|
Part # |
QO120PCAFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Combination ARC-fault |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Connections Terminals |
Plug-on neutral |
|
Interrupt Rating |
10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
|
AWG 12...AWG 8 aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.76 in (121 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.55 lb(US) (0.249 kg) |
Information About QO120PCAFI
The QO120PCAFI Mini Circuit Breaker, part of the QO series by Square D, is designed to provide essential overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers feature a robust over-center, trip-free toggle mechanism that ensures quick make and quick break actions, coupled with positive handle indication for operational clarity. Additionally, they incorporate VisiTrip trip indication, which offers a visual alert when the circuit breaker has tripped and interrupted the circuit.
This 1-pole QO circuit breaker is specifically rated for 20A at 120VAC, making it suitable for various residential and commercial applications where protection against overcurrents is critical. It boasts a substantial 10kA breaking capacity, ensuring reliable performance under fault conditions. The breaker is designed for plug-in mounting, facilitating straightforward installation and maintenance.
Notably, the QO120PCAFI includes a combination arc fault feature integrated with plug-on neutral technology, enhancing safety by detecting both parallel and series arcing faults while simplifying wiring connections. This feature is particularly advantageous in preventing electrical fires caused by arcing faults.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
