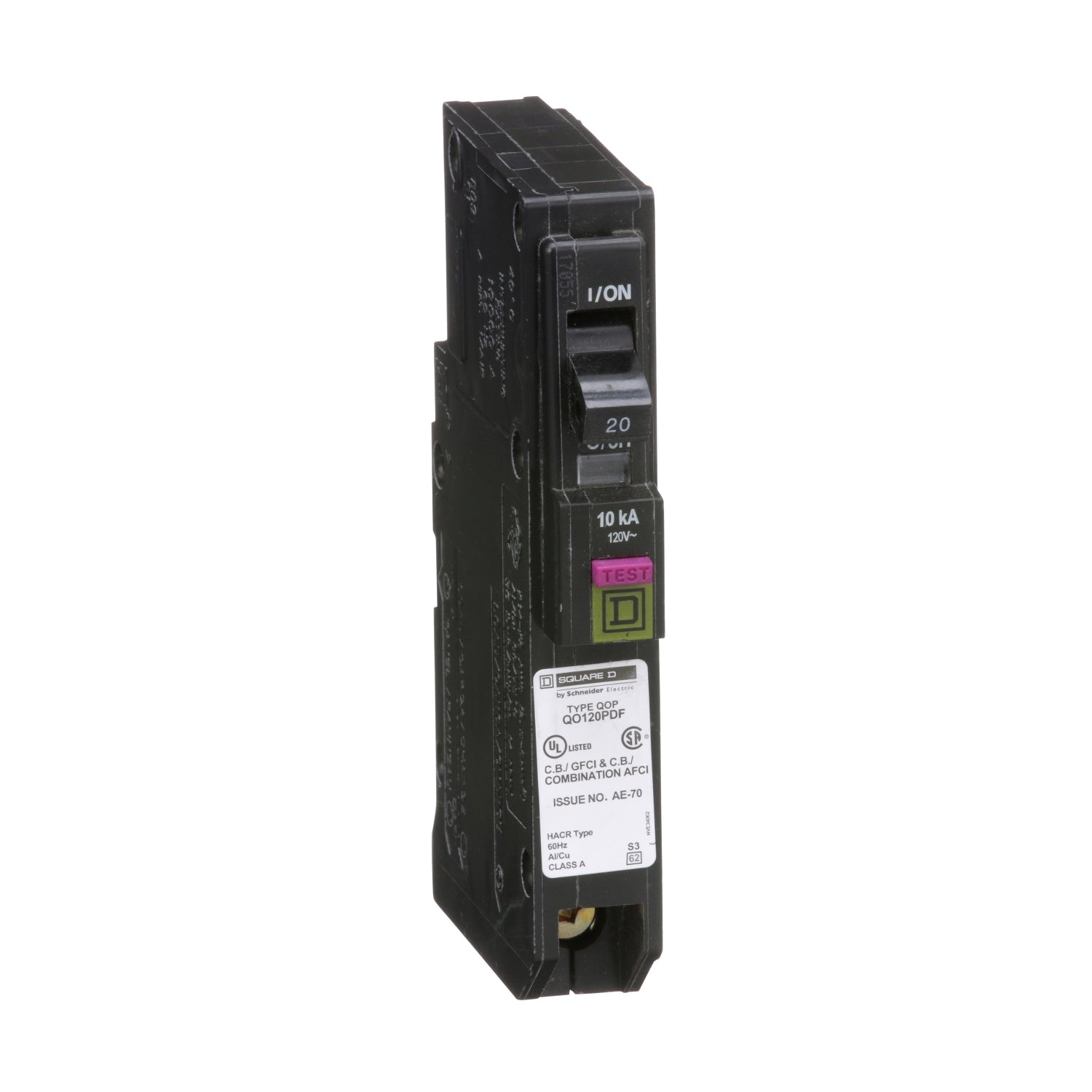

QO120PDF | Schneider Electric Mini Circuit Breaker
- Regular price
- $90.00
- Sale price
- $90.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO120PDF
Description
The QO120PDF is a Mini Circuit Breaker designed for QO series applications, featuring a 20A rating, 1 Pole configuration, and 120VAC voltage compatibility. With a 10kA breaking capacity, it ensures efficient overcurrent protection and switching for both AC and DC systems. Equipped with a plug-in mounting mechanism, installation is straightforward and convenient.
This circuit breaker incorporates a dual function feature with plug-on neutral, offering combination arc fault and ground fault protection. Its over-center, trip-free toggle mechanism facilitates quick make, quick break action with positive handle indication for added safety. Additionally, the VisiTrip trip indication provides a visual cue when the circuit breaker has tripped, interrupting the circuit.
Technical Specifications
|
Part # |
QO120PDF |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Combination ARC-fault and ground fault |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Connections Terminals |
Plug-on neutral |
|
Interrupt Rating |
10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminum |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.76 in (121 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.55 lb(US) (0.249 kg) |
|
Ambient Rating |
104 °F (40 °C) |
Information About QO120PDF
The QO120PDF is a miniature circuit breaker designed by Eaton, falling under the QO range. It is a 1-pole, 20A circuit breaker intended for use in 120VAC systems, with a robust 10kA breaking capacity. This plug-in type breaker offers overcurrent protection and switching capabilities for both AC and DC systems.
Featuring a trip-free toggle mechanism, the QO120PDF ensures quick make and break action, enhancing operational efficiency. Additionally, it includes VisiTrip trip indication, providing a visual alert when the circuit breaker trips, thereby interrupting the circuit.
Eaton offers a comprehensive range of features and factory-installed accessories for enhanced functionality. These accessories include shunt trips, auxiliary switches, and alarm switches, catering to diverse application requirements.
The QO120PDF incorporates a dual-function feature with plug-on neutral capability. This innovative design enables combination arc fault and ground fault protection, enhancing safety in electrical systems.
