QO120VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO120VH
Description

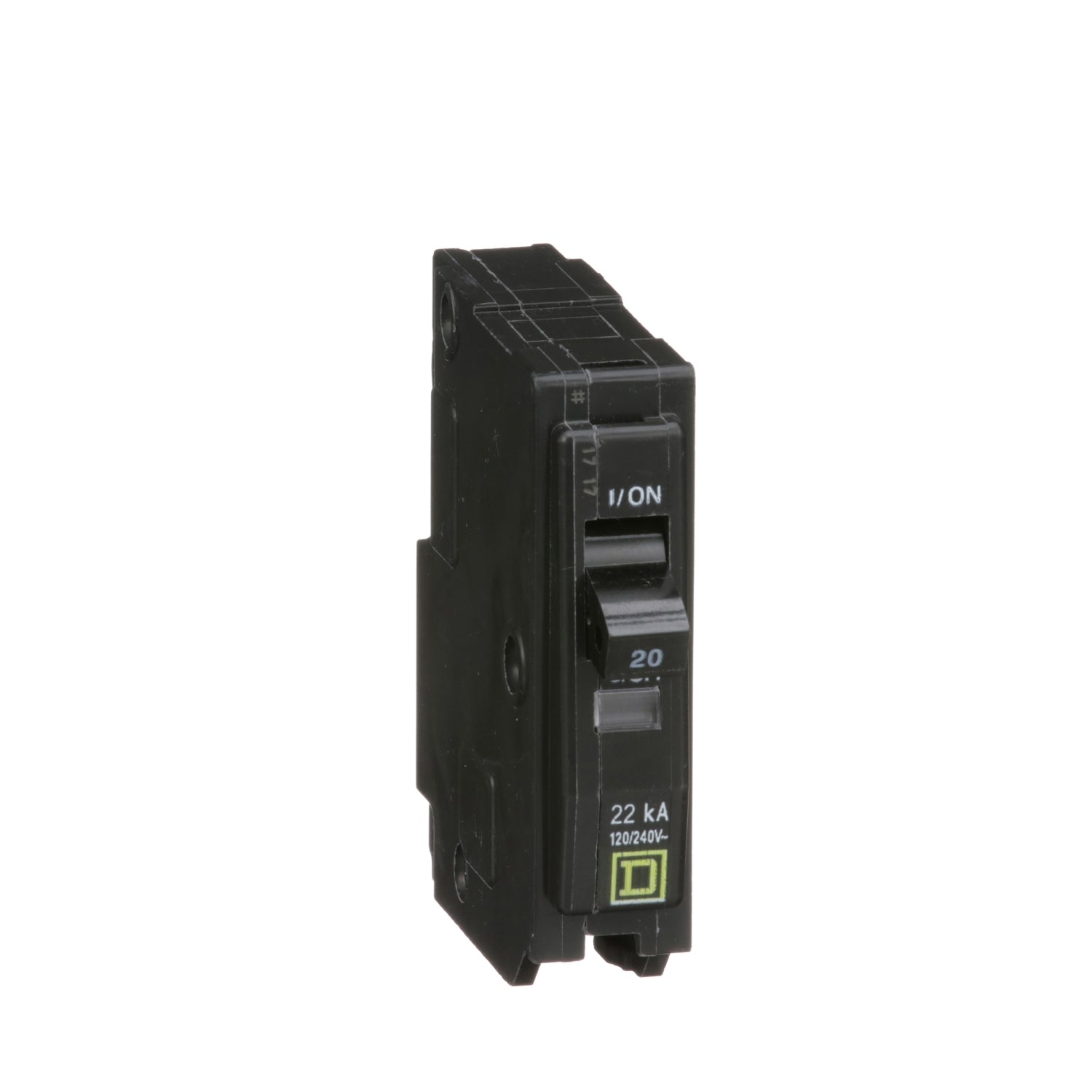

The QO120VH is a single pole Mini Circuit Breaker from the QO series by Square D. These thermal magnetic circuit breakers are designed to provide overcurrent protection and switching capability for both AC and DC systems. Featuring an over-center, trip-free toggle mechanism, they offer quick make, quick break action and positive handle indication. The VisiTrip trip indication provides a visual signal when the breaker has tripped and interrupted the circuit.
This 1-pole QO circuit breaker is rated at 20A and operates at 120/240VAC. It offers a breaking capacity of 22kA and utilizes plug-in mounting for easy installation. The QO series supports a comprehensive range of factory-installed accessories and features, including shunt trips, auxiliary switches, and alarm switches.
Technical Specifications
|
Part # |
QO120VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
22 kA @ 120/240 V AC, 22 kA @ 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminum |
|
Tightening Torque |
40.71 lbf.in (4.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.28 lb (0.127 kg) |
Information About QO120VH
The QO120VH Mini Circuit Breaker, part of the QO series by Square D, offers essential overcurrent protection and switching capabilities for both AC and DC systems. These thermal magnetic circuit breakers are available in one, two, and three pole configurations, featuring an over-center, trip-free toggle mechanism with quick make and quick break action for efficient operation. They also include positive handle indication and VisiTrip trip indication, ensuring clear visual confirmation when the breaker trips and interrupts the circuit.
Designed with flexibility in mind, the QO series supports a wide range of applications with a comprehensive lineup of features and factory-installed accessories. These include options like shunt trips, auxiliary switches, and alarm switches, enhancing functionality based on specific needs.
The QO120VH is a single-pole circuit breaker rated for 20A at 120/240VAC, suitable for plug-in mounting configurations. It boasts a robust 22kA breaking capacity, ensuring reliable performance under varying load conditions. The breaker is UL Listed under UL File E84967, meeting rigorous safety and performance standards established by Underwriters Laboratories (UL). Additionally, it holds CSA Certification under CSA Master Contract 153555, affirming compliance with Canadian standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
