QO120VHGFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $395.00
- Sale price
- $395.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

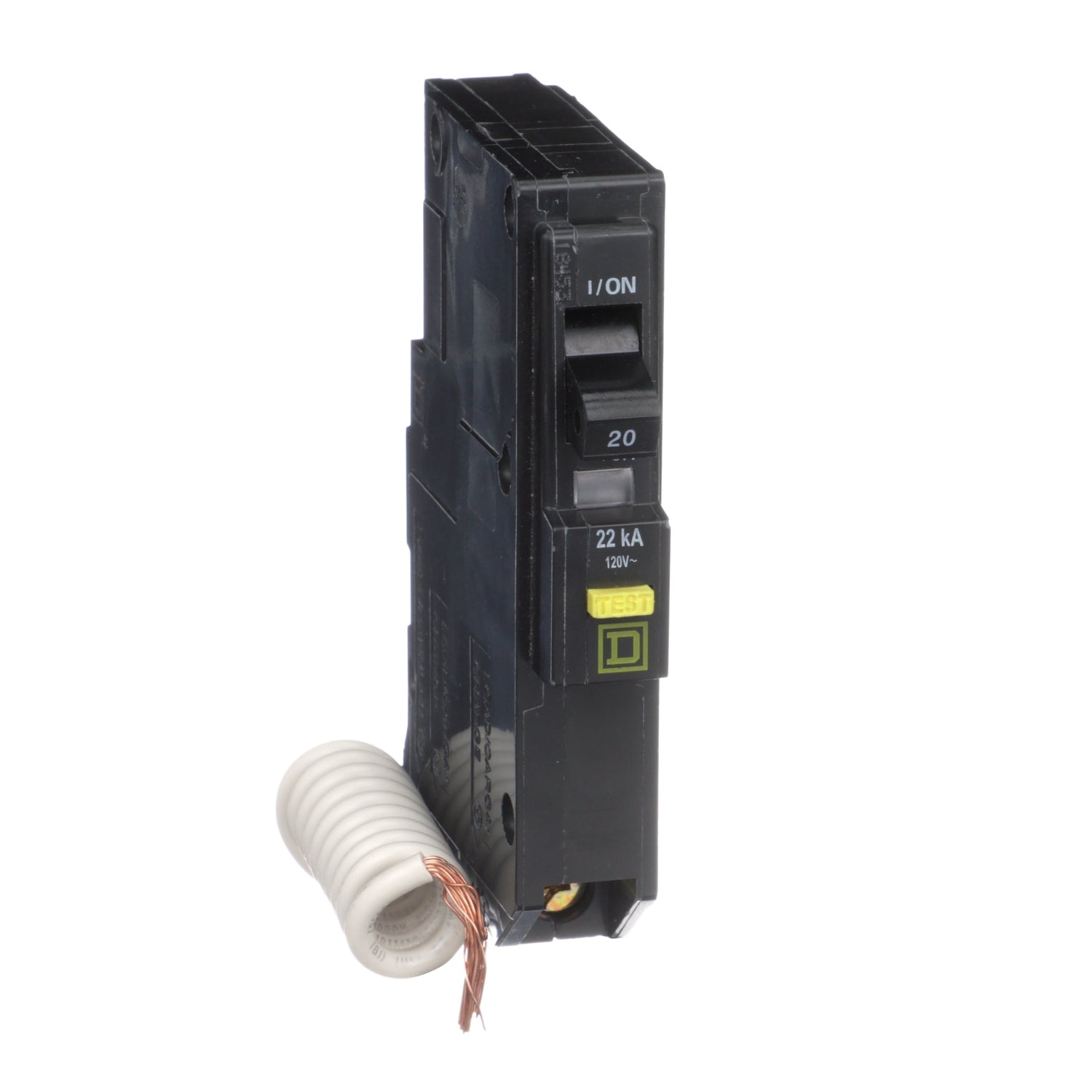

Product Description P/N: QO120VHGFI
Description
The QO120VHGFI is a mini circuit breaker belonging to the QO series, designed to provide overcurrent protection and switching functionality for AC and DC systems. It operates as a 1-pole device with a current rating of 20A at 120VAC. With a breaking capacity of 22kA, it ensures reliable protection against overcurrent conditions. The QO120VHGFI features plug-in mounting for convenient installation.
Equipped with a ground fault A protection with a sensitivity of 6mA, this circuit breaker includes a pigtail for easy connection. It incorporates a thermal magnetic mechanism with an over-center, trip-free toggle mechanism, ensuring quick make, quick break action, and positive handle indication. Additionally, it features VisiTrip trip indication, providing visual confirmation when the circuit breaker has tripped and interrupted the circuit.
Technical Specifications
|
Part # |
QO120VHGFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
|
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Height |
4.13 in (105 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.53 lb(US) (0.240 kg) |
|
Ambient Rating |
104 °F (40 °C) |
Information About QO120VHGFI
The QO120VHGFI is a mini circuit breaker within the QO series, designed to furnish overcurrent protection and switching functionality for AC and DC systems. This 1-pole breaker boasts a current rating of 20A at 120VAC and offers a substantial breaking capacity of 22kA. Featuring plug-in mounting, it facilitates convenient installation processes.
Equipped with a ground fault protecting class A mechanism, the QO120VHGFI provides sensitivity to faults as low as 6mA. Additionally, it includes a pigtail for straightforward connection. Employing a thermal magnetic mechanism, this circuit breaker incorporates an over-center, trip-free toggle mechanism that ensures quick make, quick break action, and positive handle indication. Furthermore, it is equipped with VisiTrip trip indication, offering visual confirmation when the breaker has tripped and interrupted the circuit.
The QO series circuit breakers, including the QO120VHGFI, offer an array of features and factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches. These enhancements bolster the breaker's versatility and functionality across various applications.
