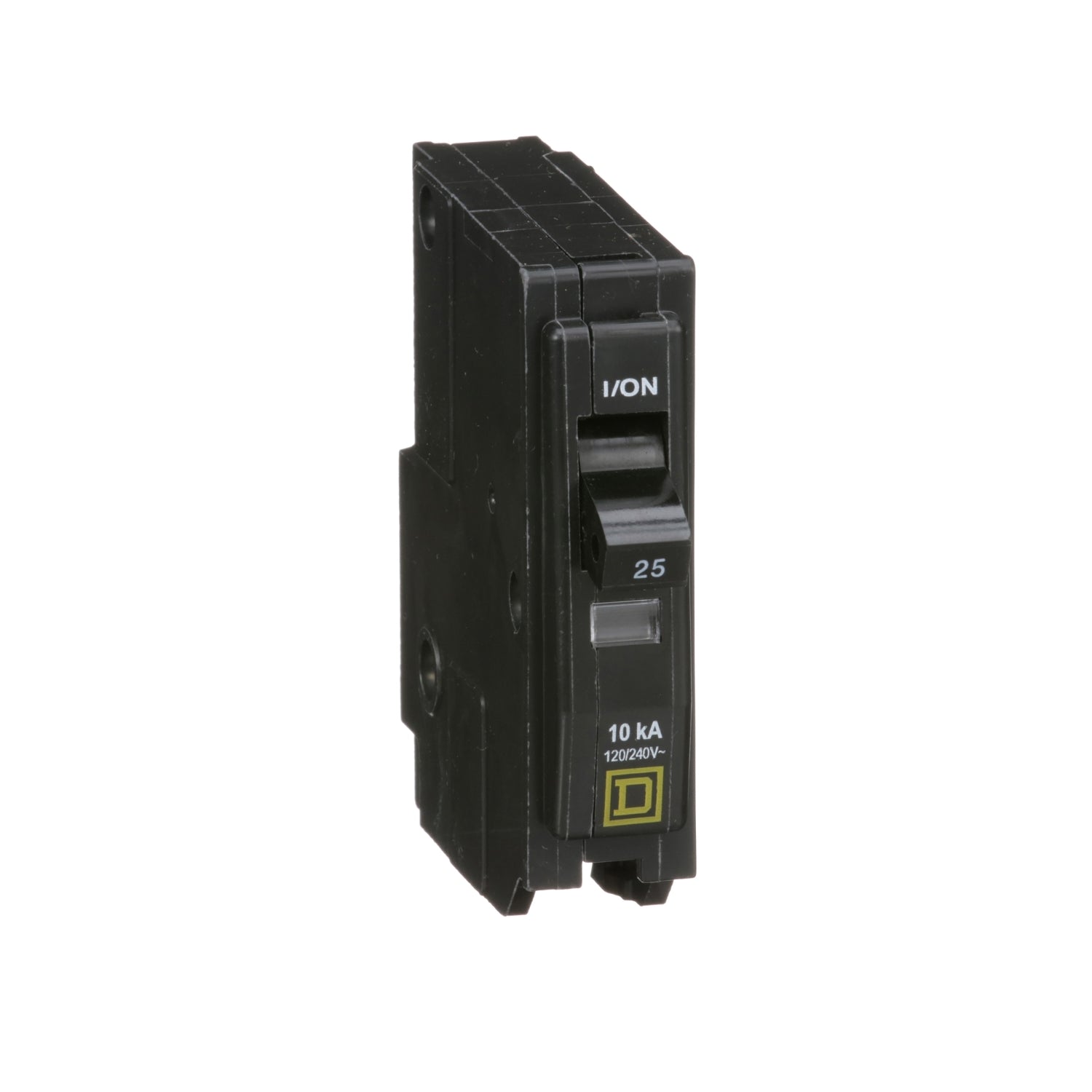

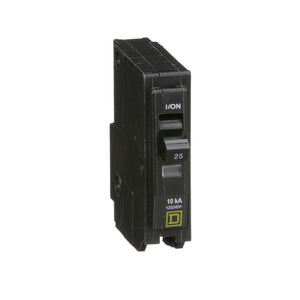

QO125 | Schneider Electric QO Series 1-Pole 25A Thermal Magnetic Circuit Breaker Plug-In
- Regular price
- $15.00
- Sale price
- $15.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO125
Description
The Schneider Electric QO125 is a single-pole molded case circuit breaker designed for reliable protection of single-phase branch circuits in residential and light commercial systems. It is rated for 25 amps at 120/240 volts and features thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO125 |
| Subcategory | Molded Case Circuit Breaker |
| Family | QO Series |
| Type | QO |
| Rated Voltage | 120/240 VAC |
| Rated Current | 25 A |
| Interrupt Rating | 10 kA at 240 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 1 |
| Phase | Single-phase |
| Connection Type | Plug-In |
| Trip Indicator | VISI-TRIP |
Information About QO125
The QO125 is part of the Schneider Electric QO Series, engineered for dependable branch circuit protection in residential and light commercial load centers. It features a compact molded case design compatible with QO plug-in panelboards, allowing fast installation and replacement. The built-in VISI-TRIP indicator provides a clear visual indication when the breaker has tripped due to a fault condition. This circuit breaker is commonly used where reliable overcurrent protection and quick fault identification are required.
Key Features
- Single-pole circuit breaker design: Provides protection for individual single-phase branch circuits in 120/240 V systems.
- 25 amp continuous current rating: Suitable for medium-load residential and light commercial branch circuits.
- Thermal magnetic protection system: Combines long-time overload sensing with instantaneous short-circuit interruption.
- Long-time and instantaneous trip functions: Ensures reliable response to both sustained overcurrent and sudden fault conditions.
- VISI-TRIP indicator: Offers a visible mechanical indicator to quickly identify a tripped breaker.
- Standard interrupting capacity: Rated at 10 kA at 240 V for typical residential fault current levels.
- Plug-in mounting configuration: Enables quick, secure installation in compatible Schneider Electric QO load centers.
The QO125 delivers the reliability and precision required for protecting single-phase branch circuits in residential and light commercial electrical systems.
