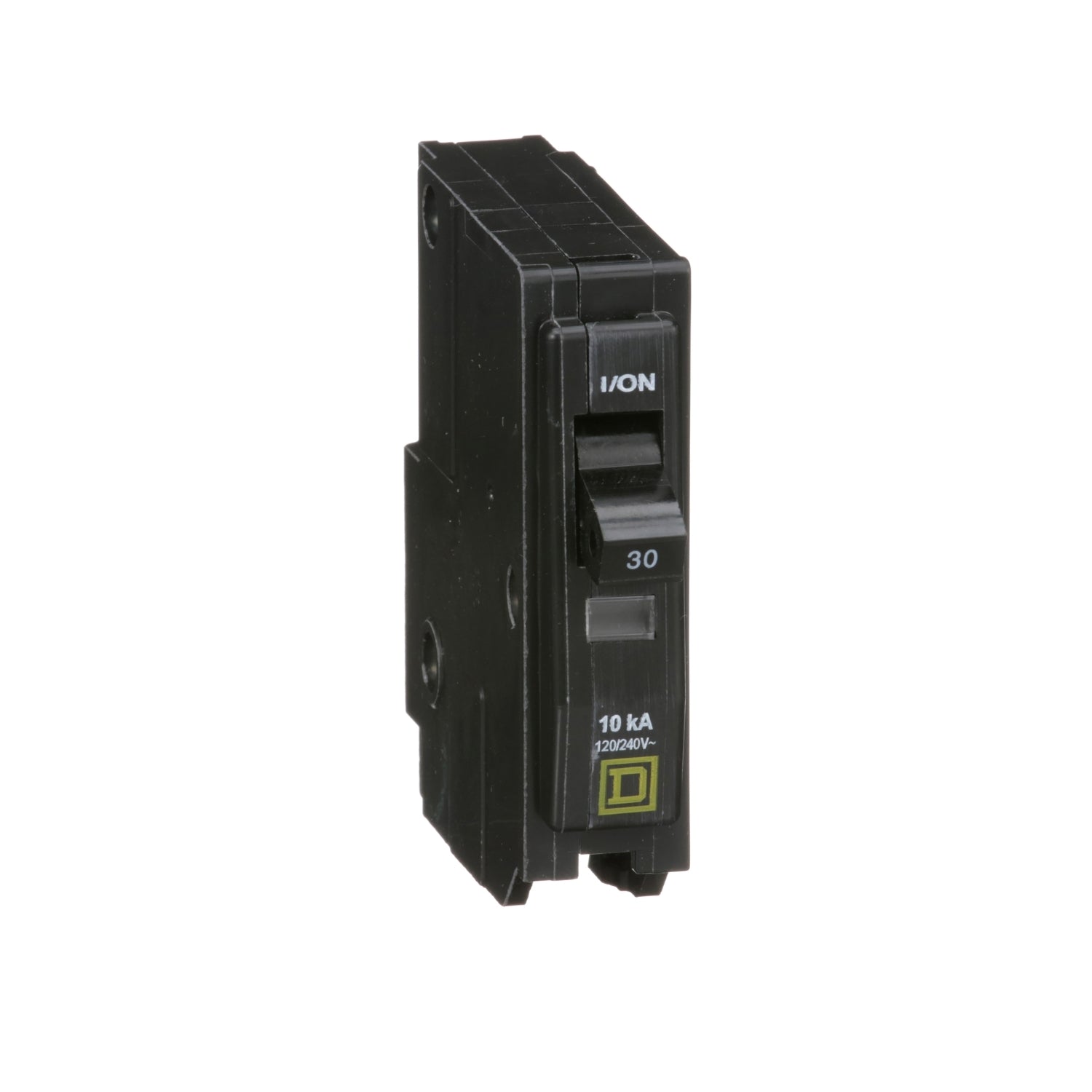

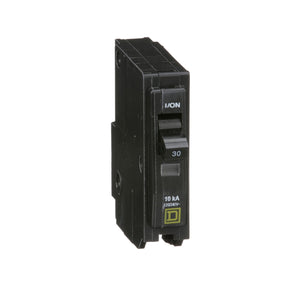

QO130 | Schneider Electric Mini Circuit Breaker
- Regular price
- $33.00
- Sale price
- $33.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO130
Description
The QO130 Mini Circuit Breaker, belonging to the QO series, is a 30A, 1 Pole breaker designed for both AC and DC systems, offering overcurrent protection and switching capabilities. Featuring a thermal magnetic mechanism, these breakers incorporate an over-center, trip-free toggle mechanism with quick make, quick break action, ensuring efficient operation. Additionally, they are equipped with VisiTrip trip indication, providing a visual alert when the breaker trips, interrupting the circuit.
Technical Specifications
|
Part # |
QO130 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
Miniature circuit-breaker |
|
Current Rating |
30 A |
|
Voltage Rating |
120/240 V AC, 120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.30 lb(US) (0.136 kg) |
Information About QO130
The QO130 is a mini circuit breaker designed for electrical systems requiring overcurrent protection and switching capabilities for both AC and DC applications. It belongs to the QO series of thermal magnetic circuit breakers, available in one, two, and three pole configurations. These circuit breakers feature an over-center, trip-free toggle mechanism with quick make and quick break action, ensuring efficient operation. Additionally, they are equipped with a positive handle indication for added safety.
One notable feature of the QO series is the VisiTrip trip indication, which provides a visual signal when the circuit breaker has tripped, indicating that the circuit has been interrupted. The QO circuit breakers come with a range of factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, enhancing their versatility and functionality.
The QO130 is a single-pole circuit breaker rated for 30A at 120/240VAC, making it suitable for various residential and commercial applications. With a breaking capacity of 10kA, it is capable of handling high fault currents safely. The plug-in mounting type of this unit allows for easy installation and maintenance, minimizing downtime.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
