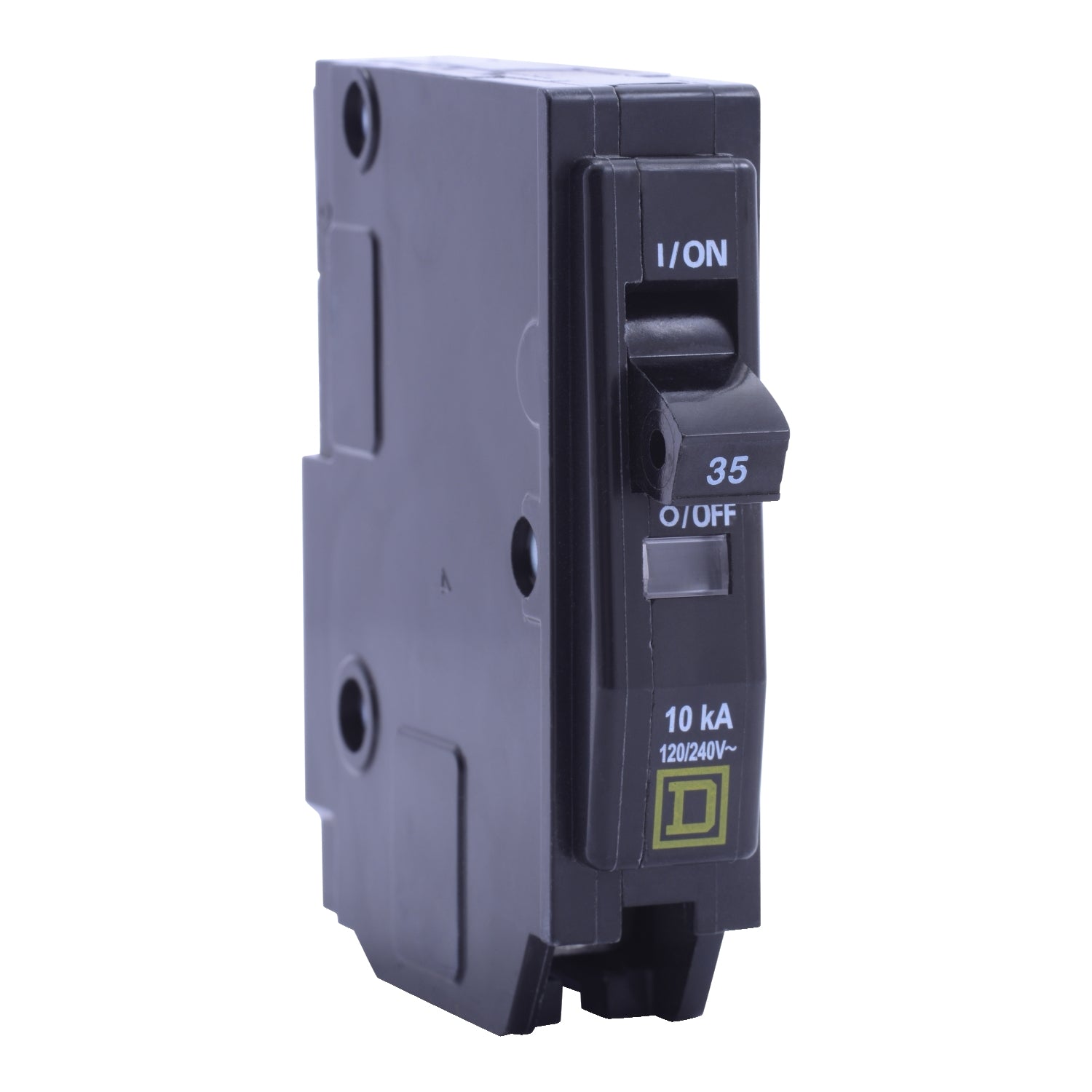

QO135 | Schneider Electric Mini Circuit Breaker
- Regular price
- $50.00
- Sale price
- $50.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO135
Description
|
Part # |
QO135 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
35 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Interrupt Rating |
10 kA 120/240 V AC, 10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 8...AWG 2 copper or aluminium |
|
Tightening Torque |
44.25 lbf.in (5 N.m) |
|
Height |
3.11 in (79 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.28 lb(US) (0.127 kg) |
Information About QO135
The QO135 mini circuit breaker from the QO series by Square D provides essential overcurrent protection and switching capabilities for both AC and DC systems. These thermal magnetic circuit breakers are available in one, two, and three pole configurations. They feature an over center, trip-free toggle mechanism designed for quick make and break actions, ensuring efficient operation. Positive handle indication enhances user visibility and safety during operation.
The QO135 circuit breaker includes VisiTrip trip indication, offering a clear visual signal when the breaker has tripped and interrupted the circuit. This feature aids in troubleshooting and maintenance, ensuring prompt identification of circuit interruptions. Square D offers a comprehensive range of factory-installed accessories for these breakers, including shunt trips, auxiliary switches, and alarm switches, enhancing their versatility and functionality in various applications.
Specifically, the QO135 is a single pole circuit breaker rated at 35A, suitable for operation at both 120VAC and 240VAC. It provides a robust 10kA breaking capacity, capable of safely interrupting faults under rated conditions. The plug-in mounting type simplifies installation and replacement procedures, facilitating quick deployment and maintenance in load centers and panelboards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
