QO150 | Schneider Electric Mini Circuit Breaker
- Regular price
- $62.00
- Sale price
- $62.00
- Regular price
-
Do you need more quantity?

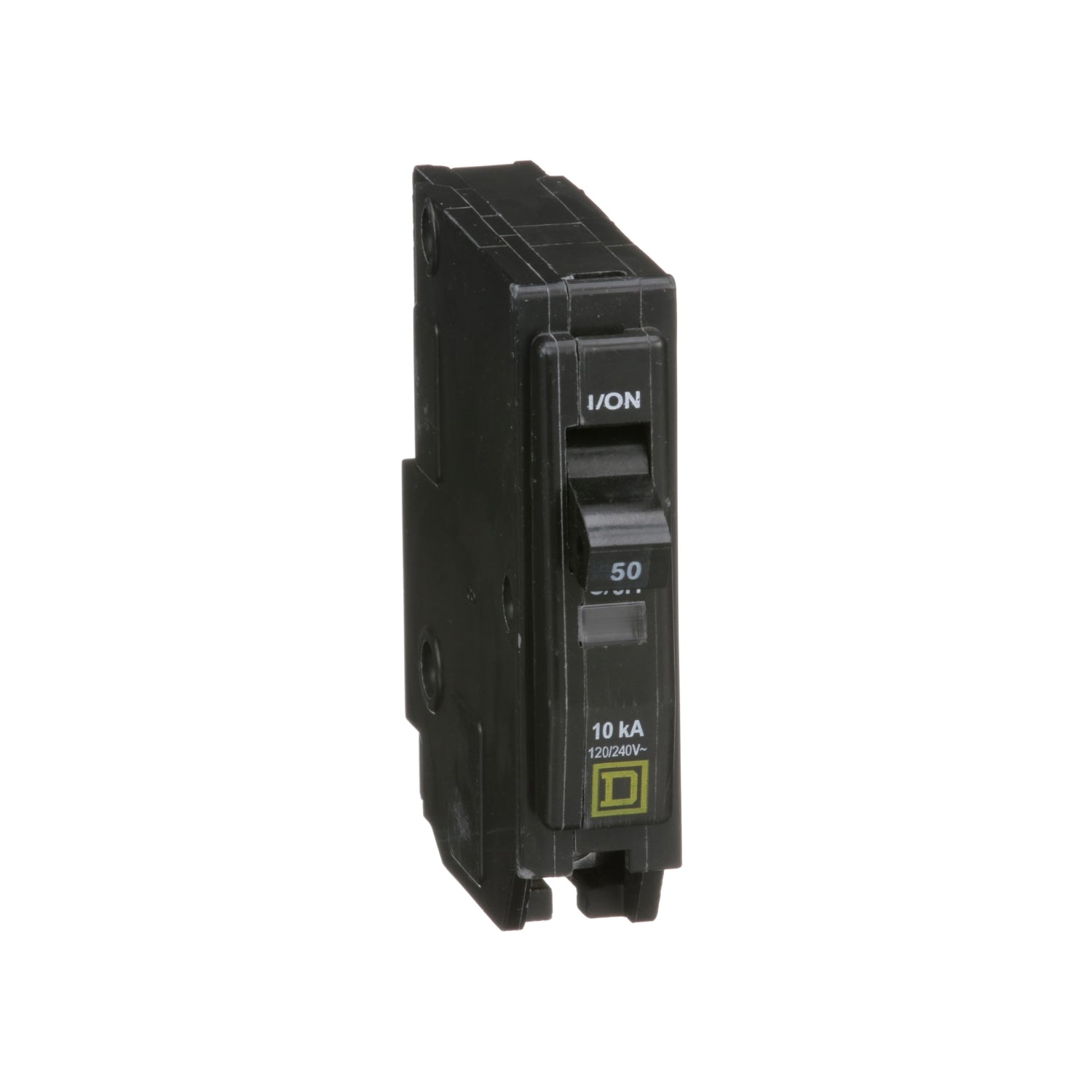

Product Description P/N: QO150
Description
The QO150 Mini Circuit Breaker, part of the QO series by Square D™, offers robust overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism with quick make and break action, ensuring reliable operation. They include VisiTrip trip indication, visually signaling when the breaker has tripped to interrupt the circuit.
QO circuit breakers are designed with a comprehensive range of features and factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches. The QO150 is a 1-pole breaker rated for 50A at 120/240VAC, with a 10kA breaking capacity, suitable for a variety of applications. It is designed for plug-in mounting, facilitating easy installation and maintenance.
Technical Specifications
Part # |
QO150 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Product Range |
QO |
Current Rating |
50 A |
Voltage Rating |
120/240 V AC |
Mounting Type |
Plug-in |
Number of Poles |
1P |
Circuit Breaker Type |
Standard |
Ratings |
HACR rated |
Number of Panel Spaces |
1 |
Wire Size |
AWG 8...AWG 2 copper or aluminium |
Tightening Torque |
44.25 lbf.in (5 N.m) |
Height |
3.11 in (79 mm) |
Width |
0.75 in (19 mm) |
Depth |
2.91 in (74 mm) |
Net Weight |
0.28 lb(US) (0.127 kg) |
Information About QO150
The QO150 Mini Circuit Breaker, part of the QO series, is designed to offer reliable overcurrent protection and switching capabilities for both AC and DC electrical systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over-center, trip-free toggle mechanism with quick make and break actions, ensuring efficient operation. They are equipped with VisiTrip trip indication, providing clear visual cues when the breaker trips to interrupt the circuit.
This 1-pole QO circuit breaker is specifically rated for 50A at 120/240VAC, accommodating various residential and commercial applications. It boasts a substantial 10kA breaking capacity, ensuring robust protection against short circuits and overloads. The breaker's plug-in mounting configuration facilitates straightforward installation and maintenance.
QO circuit breakers are compliant with rigorous safety standards, including UL Listing under UL File E84967 and CSA Certification under CSA Master Contract 153555, affirming their reliability and adherence to industry norms.
In addition to their core functionalities, QO circuit breakers support a comprehensive range of factory-installed accessories. These accessories include shunt trips, auxiliary switches, and alarm switches, enhancing their versatility and adaptability to diverse electrical system requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
