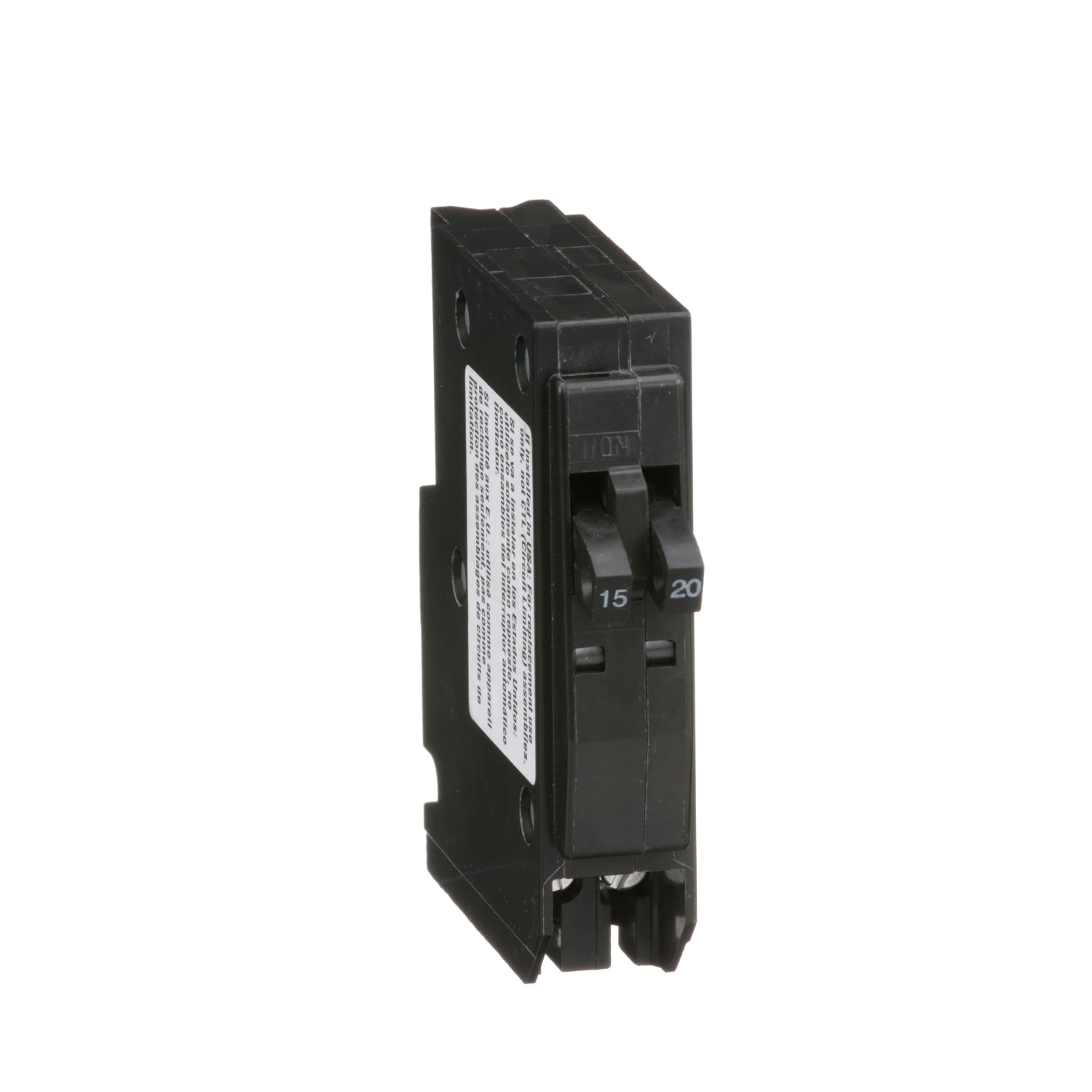

QO1520 | Schneider Electric Tandem Mini Circuit Breaker
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO1520
Description
The QO1520 is a tandem mini circuit breaker designed to provide overcurrent protection and switching on both AC and DC systems. Manufactured by QO and QOB, it features a one-pole at 15A and one-pole at 20A configuration for 120/240VAC systems.
Equipped with an over center, trip-free toggle mechanism, this circuit breaker ensures quick make, quick break action, and positive handle indication. Additionally, it includes VisiTrip trip indication, offering a visual signal when the circuit breaker has tripped and interrupted the circuit.
Technical Specifications
|
Ampere Rating (A) |
15/20 |
|
Approvals |
UL Listed - CSA Certified |
|
For Use With |
Old style non-class CTL Load Centers (Replacement Only) |
|
Features |
VISI-TRIP trip indication |
|
Circuit Breaker Type |
Replacement Tandem |
|
Mounting Type |
Plug-On |
|
Marketing Trade Name |
QO |
|
Voltage Rating |
120/240 Vac |
|
HACR Rated |
Yes |
|
Number of Poles |
2x1-Pole |
|
Short Circuit Current Rating |
10kA |
|
Space Required |
1 |
|
Switching Duty Rated |
No |
|
Phase |
1-Phase |
|
Type |
QO |
|
Terminal Type |
Pressure Plate |
|
General Application |
Provides overload and short circuit protection |
|
Wire Size |
#14 to #8 AWG(Al/Cu) |
Information About QO1520
The QO1520 tandem mini circuit breaker is part of the QO and QOB series, designed to offer overcurrent protection and switching capabilities for both AC and DC systems. These circuit breakers feature an over center, trip-free toggle mechanism, ensuring quick make, quick break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, providing a visual signal when the circuit breaker trips and interrupts the circuit.
A comprehensive range of features and factory-installed accessories are available for customization, including shunt trips, auxiliary switches, and alarm switches. The QO1520 tandem mini circuit breaker comprises one pole rated at 15A and another pole rated at 20A, suitable for 120/240VAC applications. With a breaking capacity of 10kA and plug-in mounting, it ensures reliable performance in various electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
