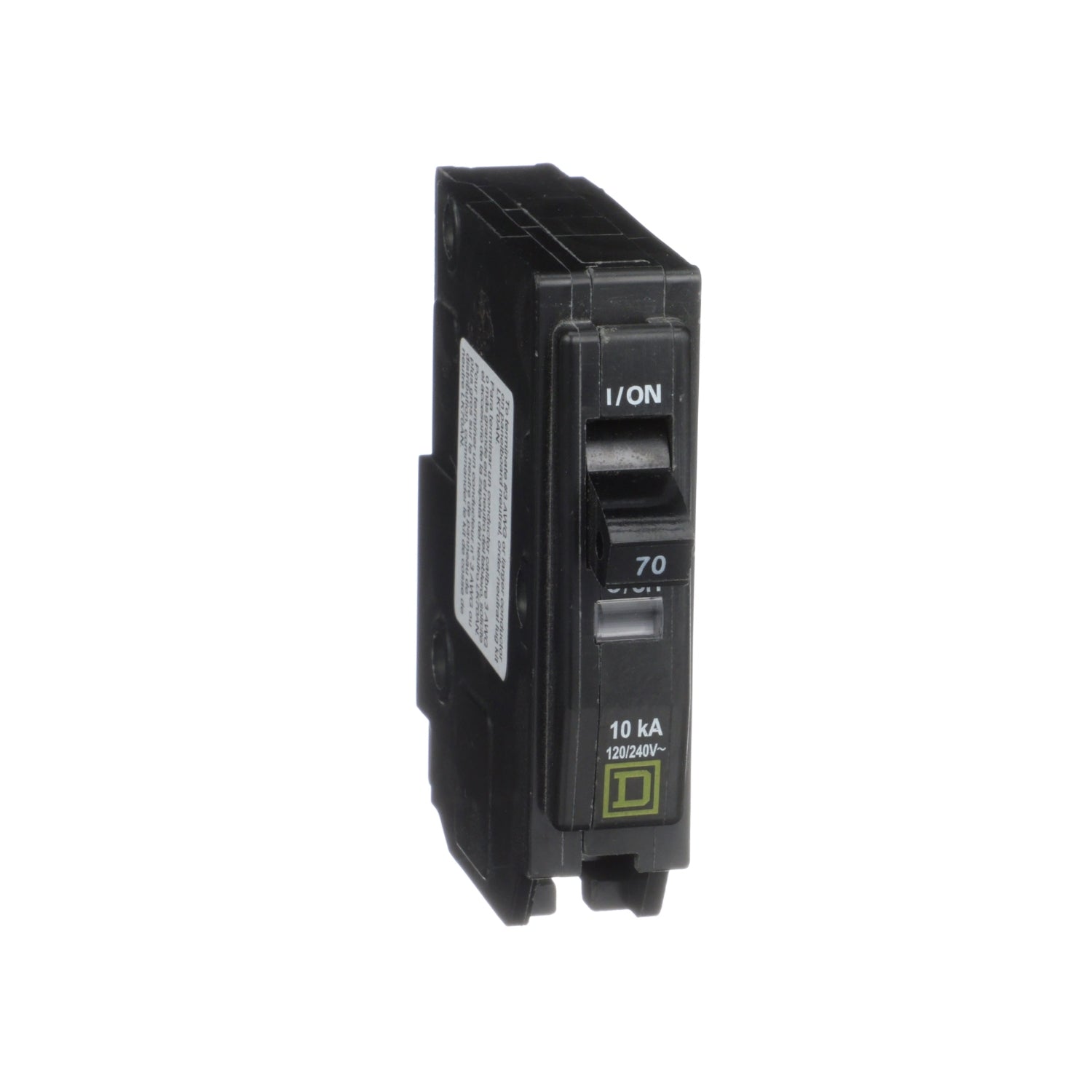

Part #: QO170 Manufactured by: Schneider Electric
Regular price
$75.00
Sale price
$75.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The QO170 is a mini circuit breaker from the QO series, engineered to deliver overcurrent protection and switching functio...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: QO170
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: QO170

Description / Specifications

Description

The QO170 is a mini circuit breaker from the QO series, designed to offer overcurrent protection and switching capabilities for both AC and DC systems. Equipped with a thermal magnetic mechanism, these circuit breakers feature an over-center, trip-free toggle mechanism for quick make and break action, along with positive handle indication.

Featuring VisiTrip trip indication, these circuit breakers provide a visual cue when tripped, signaling interruption of the circuit. Additionally, they come with a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches for added functionality.





Technical Specifications

Part #

QO170

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Product

Range

Current Rating

70 A

Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Box lugs

Number of Panel Spaces

1

Wire Size

AWG 8...AWG 2 copper/alum

Tightening Torque

44.25 lbf.in (5 N.m)

Height

3.11 in (79 mm)

Width

0.75 in (19 mm)

Depth

2.91 in (74 mm)

Net Weight

0.31 lb(US) (0.141 kg)



Information About QO170

The QO170 is a mini circuit breaker belonging to the QO series, designed by Schneider Electric. It operates as a single-pole thermal magnetic circuit breaker, providing overcurrent protection and switching capabilities for both AC and DC systems.

Featuring an over-center, trip-free toggle mechanism, the QO170 ensures quick make and quick break actions, along with positive handle indication for enhanced operational clarity. Additionally, it incorporates VisiTrip trip indication, offering a visual cue when the circuit breaker trips and interrupts the circuit.

This circuit breaker is equipped with a range of features and supports factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, facilitating versatile functionality tailored to specific application needs.

The QO170 mini circuit breaker is rated at 70A and operates within a voltage range of 120/240VAC. With a breaking capacity of 10kA, it effectively safeguards electrical systems against overloads and short circuits.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
