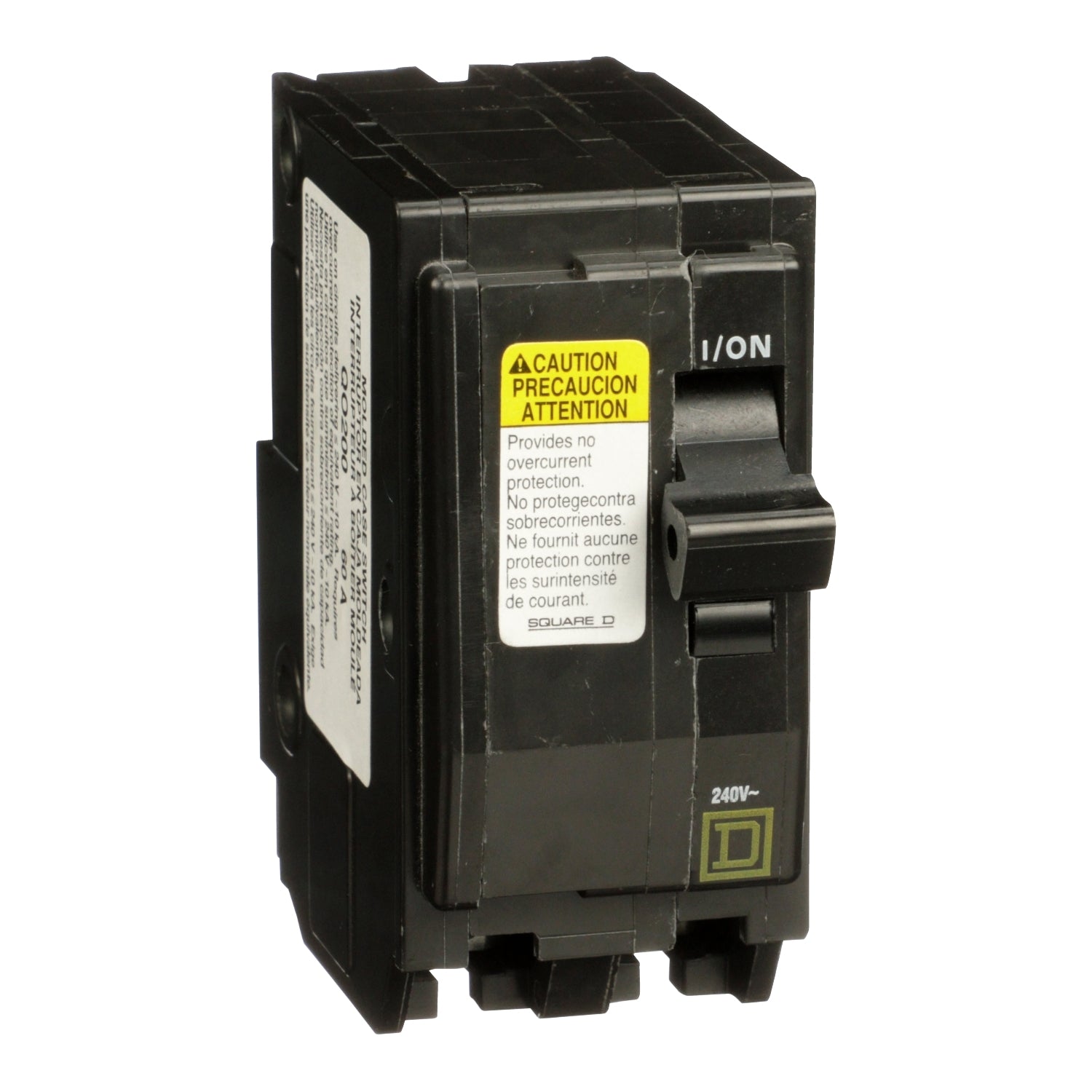

QO200 | Schneider Electric Mini Switch
- Regular price
- $70.00
- Sale price
- $70.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO200
Description
The QO200 Mini Switch is a compact yet robust circuit breaker designed for electrical protection and switching applications. Part of the QO and QOB series, this thermal magnetic circuit breaker offers one, two, and three-pole configurations to cater to various system requirements on both AC and DC circuits.
Featuring an over-center, trip-free toggle mechanism, the QO200 ensures reliable overcurrent protection with its quick make, quick break action, and positive handle indication. Additionally, the VisiTrip trip indication provides a visual alert when the circuit breaker trips, indicating interruption of the circuit.
Technical Specifications
|
Part # |
QO200 |
|
Category |
Panel Accessories |
|
Subcategory |
Disconnect Switch Product |
|
Range |
QO |
|
Current Rating |
60 A |
|
Voltage Rating |
240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Electrical Connection |
Box lugs |
|
Interrupt Rating |
10 kA 240 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 8...AWG 2 copper or aluminum |
|
Tightening Torque |
44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8...AWG 2) |
|
Height |
3.11 in (79 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.54 lb(US) (0.245 kg) |
Information About QO200
QO200 is a miniature switch designed to provide overcurrent protection and switching for both AC and DC systems. Part of the QO series, it is a two-pole thermal magnetic circuit breaker capable of handling up to 60A at 240VAC. With a breaking capacity of 10kA, it ensures reliable performance under varying electrical loads.
Equipped with an over-center, trip-free toggle mechanism, QO200 offers quick make and quick break action for efficient operation. Additionally, it features a positive handle indication for easy monitoring. The VisiTrip trip indication system provides a visual signal when the circuit breaker trips, indicating that the circuit has been interrupted.
QO200 comes with a range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, allowing for versatile application in different electrical systems.
Designed for plug-in mounting, QO200 offers convenient installation and maintenance. It is suitable for use in a variety of settings, including residential, commercial, and industrial environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
