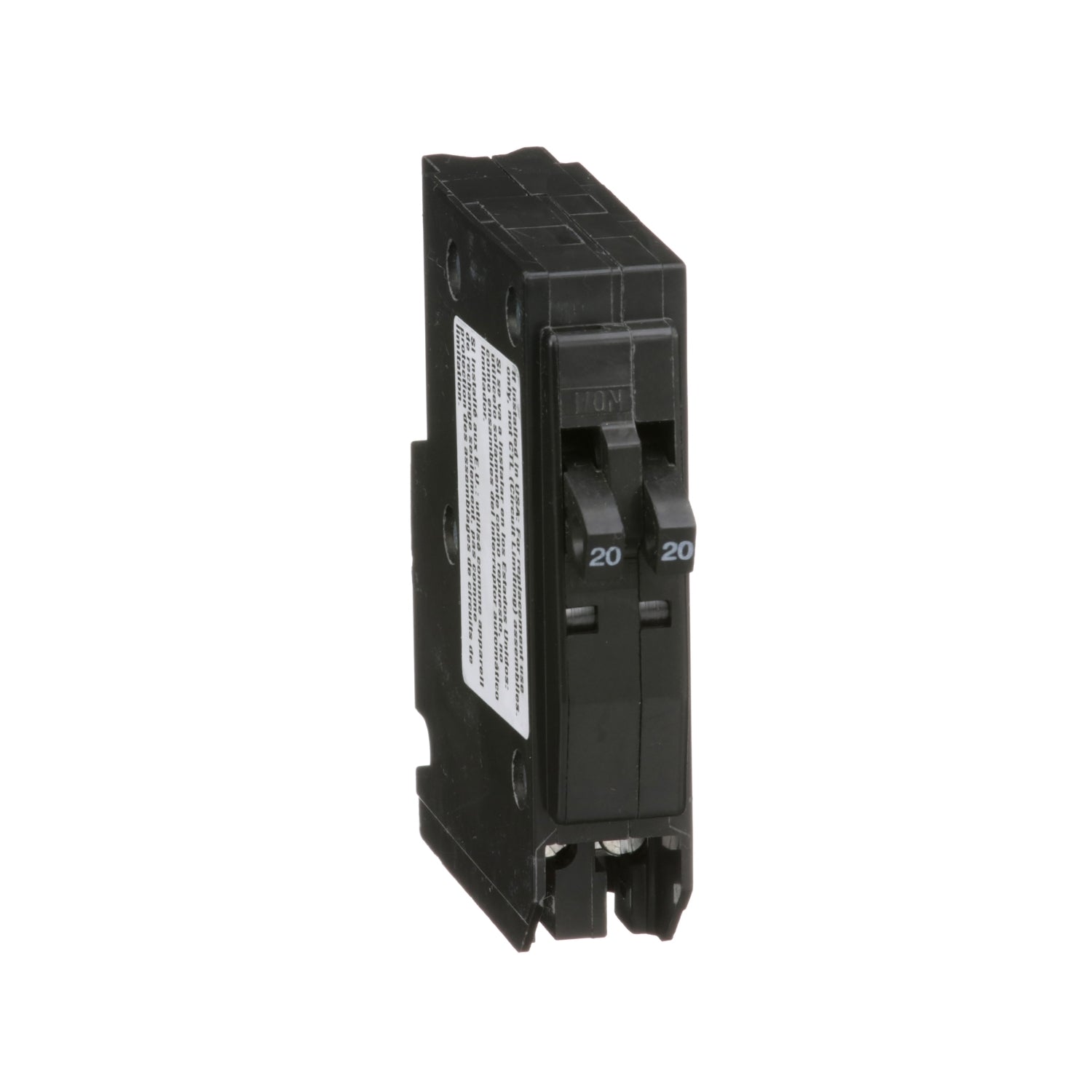

QO2020 | Schneider Electric QO Series 20A 120/240V Tandem Miniature Circuit Breaker
- Regular price
- $27.00
- Sale price
- $27.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2020
Description
The Schneider Electric QO2020 is a tandem miniature circuit breaker designed for compact residential electrical distribution. Rated at 20 amps for 120/240 VAC systems, it provides reliable thermal-magnetic protection in applications requiring dual-circuit capability within limited panel space.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO2020 |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 20 A |
| Connection Type | Pressure Plate |
| Dimensions | 2.91 in L × 0.75 in W × 3 in H |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug-In |
| Number of Poles | 1 (Tandem Configuration) |
| Phase | 1 |
| Temperature Rating | 40°C |
| Trip Type | Thermal Magnetic |
| Type | Tandem |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 8 AWG |
| Housing Series | QO Miniature Breaker Series |
| Application | Residential Load Centers |
Information About QO2020
The QO2020 is a tandem circuit breaker from Schneider Electric’s QO Series engineered to provide two independent 20-amp circuits within the space of a single miniature breaker position. Its pressure plate connection design ensures secure termination for 14 to 8 AWG conductors, supporting safe wiring practices. Operating at 120/240 VAC with a 10 kA interrupt rating, the breaker uses thermal-magnetic trip technology to respond to both sustained overloads and instantaneous fault currents. Compact dimensions and plug-in mounting allow easy installation in QO load centers where space efficiency and dependable protection are essential.
Key Features
- Tandem Miniature Breaker Design: Provides two circuit capabilities within a single breaker position to maximize panel capacity.
- Thermal-Magnetic Trip Technology: Ensures accurate detection of overload and short-circuit conditions for enhanced electrical safety.
- Pressure Plate Connection: Delivers strong conductor retention for AWG 14–8 wire sizes, improving wiring reliability.
- Plug-In Mounting System: Allows fast insertion and replacement within QO load centers without additional hardware.
- 10 kA Interrupt Rating: Supports effective fault clearing for residential branch circuits at 120/240 VAC.
- Compact 2.91 × 0.75 × 3 in Form Factor: Fits efficiently into tight panelboard spaces while maintaining full protective function.
- 40°C Operating Rating: Ensures stable performance under standard residential temperature conditions.
- Single-Pole Construction with Tandem Functionality: Supports dual-circuit applications in systems where panel space is limited.
The QO2020 delivers the reliability and precision required for safe, space-efficient residential electrical distribution.
