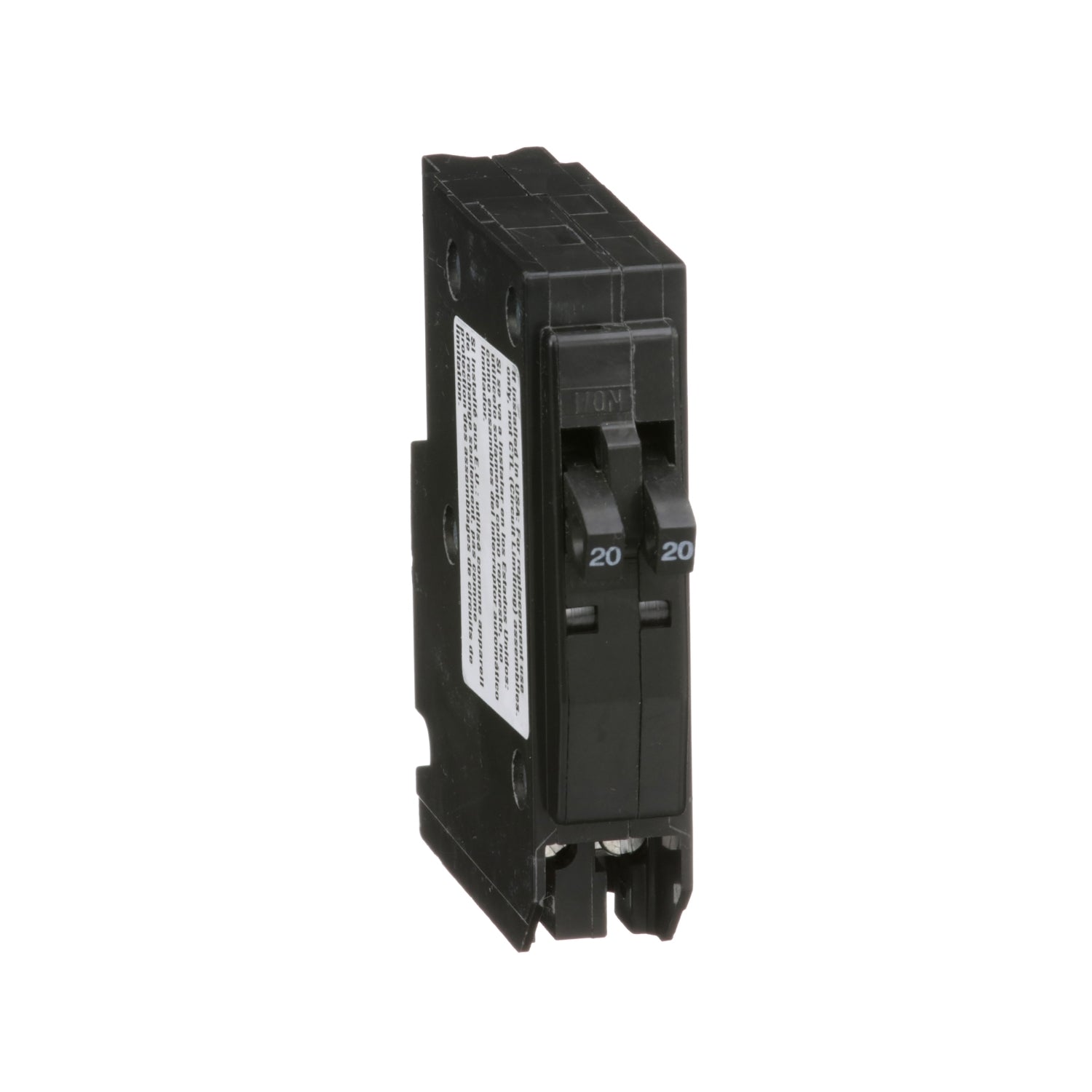

QO2020CP | Schneider Electric Square D QO Tandem Mini Circuit Breaker 2×20A 120/240V Plug-In
- Regular price
- $33.00
- Sale price
- $33.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO2020CP
Description
The Schneider Electric QO2020CP is a tandem miniature circuit breaker designed to provide two independent branch circuits within a single panel space. This Schneider Electric Square D part number QO2020CP consists of two 1-pole breakers, each rated at 20 amperes for 120/240 VAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO2020CP |
| Subcategory | Tandem Mini Circuit Breaker |
| Product Range | QO |
| Breaker Type | Tandem |
| Current Rating | 20 A (per pole) |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 2 × 1-Pole |
| Mounting Type | Plug-In |
| Interrupting Capacity | 10 kA at 120/240 VAC |
| HACR Rated | Yes |
| Number of Panel Spaces Used | 1 |
| Wire Size (Cu/Al) | AWG 14 to AWG 8 |
| Tightening Torque | 24.78 lbf·in (2.8 N·m) |
| Height | 3.23 in (82 mm) |
| Width | 0.75 in (19 mm) |
| Depth | 2.91 in (74 mm) |
| Net Weight | 0.31 lb (0.141 kg) |
Information About QO2020CP
The QO2020CP is a tandem miniature circuit breaker from the Schneider Electric Square D QO series, engineered to maximize panel space efficiency while maintaining dependable circuit protection. It integrates two independent single-pole breakers into a single plug-in unit, allowing additional circuits to be added without expanding the panel footprint. The breaker incorporates a thermal-magnetic trip mechanism and Square D’s VisiTrip visual indicator, which clearly signals when a circuit has tripped. It is commonly used in residential and light commercial load centers where space optimization and reliable protection are required.
Key Features
- QO series tandem design: Allows two 20 A branch circuits to occupy a single panel space.
- Thermal-magnetic protection: Provides long-time overload and instantaneous short-circuit response.
- 120/240 VAC operation: Suitable for standard residential and light commercial power systems.
- Plug-in mounting format: Enables fast installation in compatible Square D QO load centers.
- VisiTrip indication: Provides clear visual identification of a tripped circuit.
- HACR rated: Approved for heating, air conditioning, and refrigeration applications.
- Compact construction: Maximizes panel capacity without compromising protection.
The QO2020CP delivers the reliability and precision required for efficient branch circuit protection in space-constrained electrical distribution systems.
