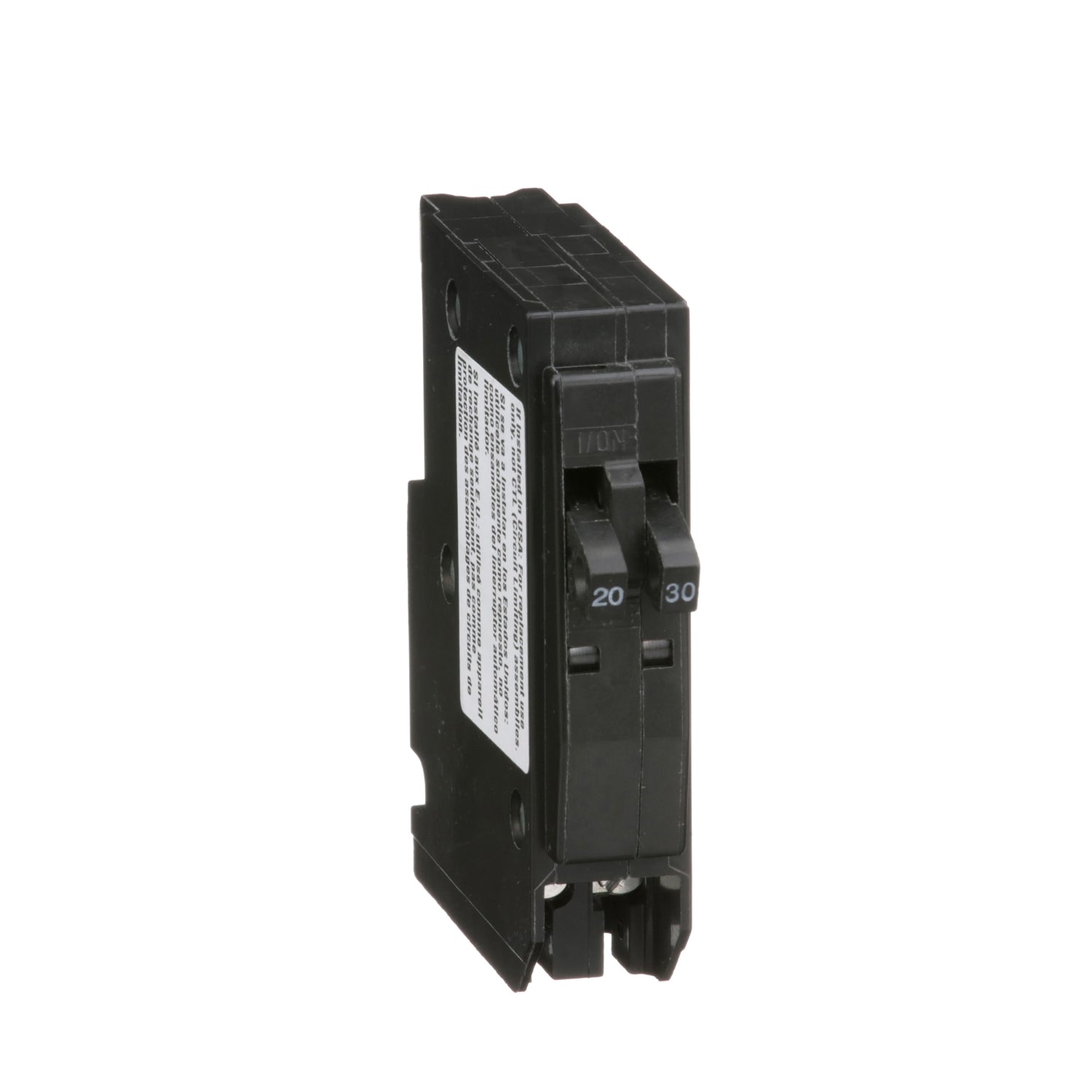

QO2030 | Schneider Electric Tandem mini Circuit Breaker
- Regular price
- $169.00
- Sale price
- $169.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO2030
Description
The QO2030 is a tandem mini Circuit Breaker engineered under the QO series, designed to provide overcurrent protection and switching on both AC and DC systems. Featuring an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication, these circuit breakers ensure efficient operation. Additionally, they incorporate VisiTrip trip indication, offering visual confirmation of tripping and circuit interruption.
Technical Specifications
|
Part # |
QO2030 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
Miniature |
|
Current Rating |
30 A, 20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
24.78 lbf.in (2.8 N.m) |
|
Height (in) |
3.23 |
|
Width (in) |
0.75 |
|
Depth (in) |
2.91 |
|
Net Weight (lb) |
0.33 |
Information About QO2030
The QO2030 tandem mini circuit breaker, part of the QO series, offers reliable overcurrent protection and switching for both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over-center, trip-free toggle design with quick make, quick break action, and positive handle indication. Additionally, they incorporate VisiTrip trip indication, providing a visual cue when the circuit breaker trips and interrupts the circuit.
Designed for versatility, QO and QOB circuit breakers are available in one, two, and three-pole configurations. They come with a range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches.
The QO2030 tandem mini circuit breaker comprises one pole rated at 20A and one pole rated at 30A, suitable for applications requiring 120/240VAC. With a breaking capacity of 10kA, this unit ensures robust protection against short circuits. Its plug-in mounting configuration facilitates easy installation and maintenance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
