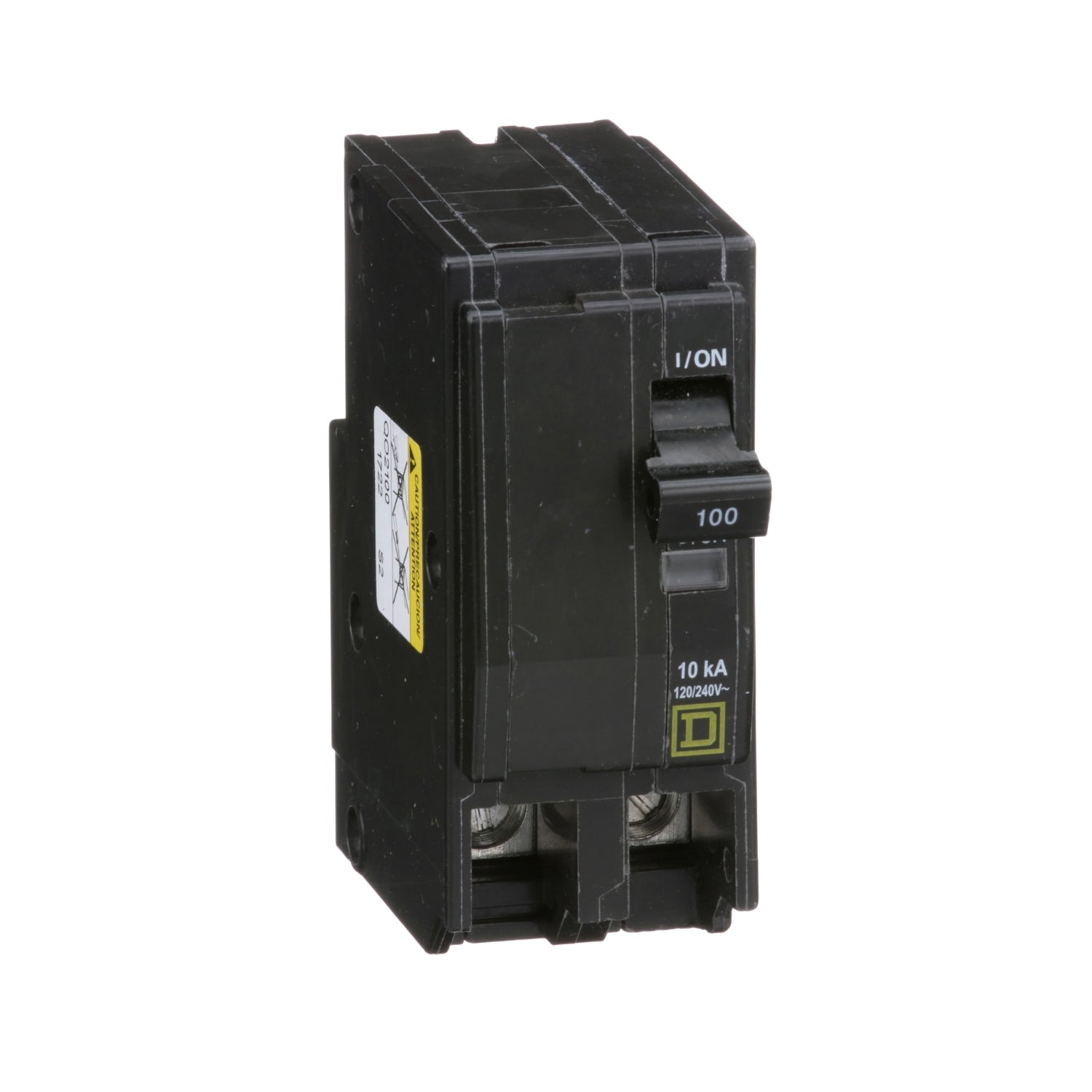

QO2100 | Schneider Electric Mini Circuit Breaker
- Regular price
- $91.00
- Sale price
- $91.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2100
Description
The QO2100 is a Mini Circuit Breaker from the QO series, manufactured by Square D. Designed for a variety of applications, it provides overcurrent protection and switching for both AC and DC systems. Featuring a two-pole configuration, this thermal magnetic circuit breaker offers a quick make, quick break action through its trip-free toggle mechanism. Additionally, it includes a VisiTrip trip indication for visual confirmation of circuit interruption.
With a current rating of 100A at 120/240VAC, the QO2100 ensures reliable performance and safety. It offers a breaking capacity of 10kA and is designed for plug-in mounting, facilitating installation and maintenance. The QO series is UL Listed under UL File E84967 and CSA Certified under CSA Master Contract 153555, ensuring compliance with industry standards and regulations
Technical Specifications
|
Part # |
QO2100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature Circuit Breaker |
|
Range |
QO |
|
Current Rating |
100 A |
|
Voltage Rating |
120/240 V AC, 120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 4...AWG 2/0 copper or aluminium |
|
Tightening Torque |
49.56 lbf.in (5.6 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.51 lb(US) (0.230 kg) |
Information About QO2100
The QO2100 is a mini circuit breaker belonging to the QO range, manufactured by Schneider Electric. It is designed for providing overcurrent protection and switching on both AC and DC systems. This two-pole circuit breaker has a current rating of 100A and operates at 120/240VAC. With a breaking capacity of 10kA, it ensures effective protection against overloads and short circuits.
Featuring a plug-in mounting type, the QO2100 offers ease of installation and maintenance. It is equipped with a thermal magnetic mechanism, incorporating an over-center, trip-free toggle mechanism. This mechanism ensures quick make and quick break action, providing reliable performance in various applications. Additionally, the circuit breaker is designed with a positive handle indication for clear visibility of its operational status.
The QO2100 is equipped with VisiTrip trip indication, which offers a visual alert in the event of a trip, indicating that the circuit breaker has interrupted the circuit. This feature enhances safety by providing immediate feedback on the breaker's status.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
