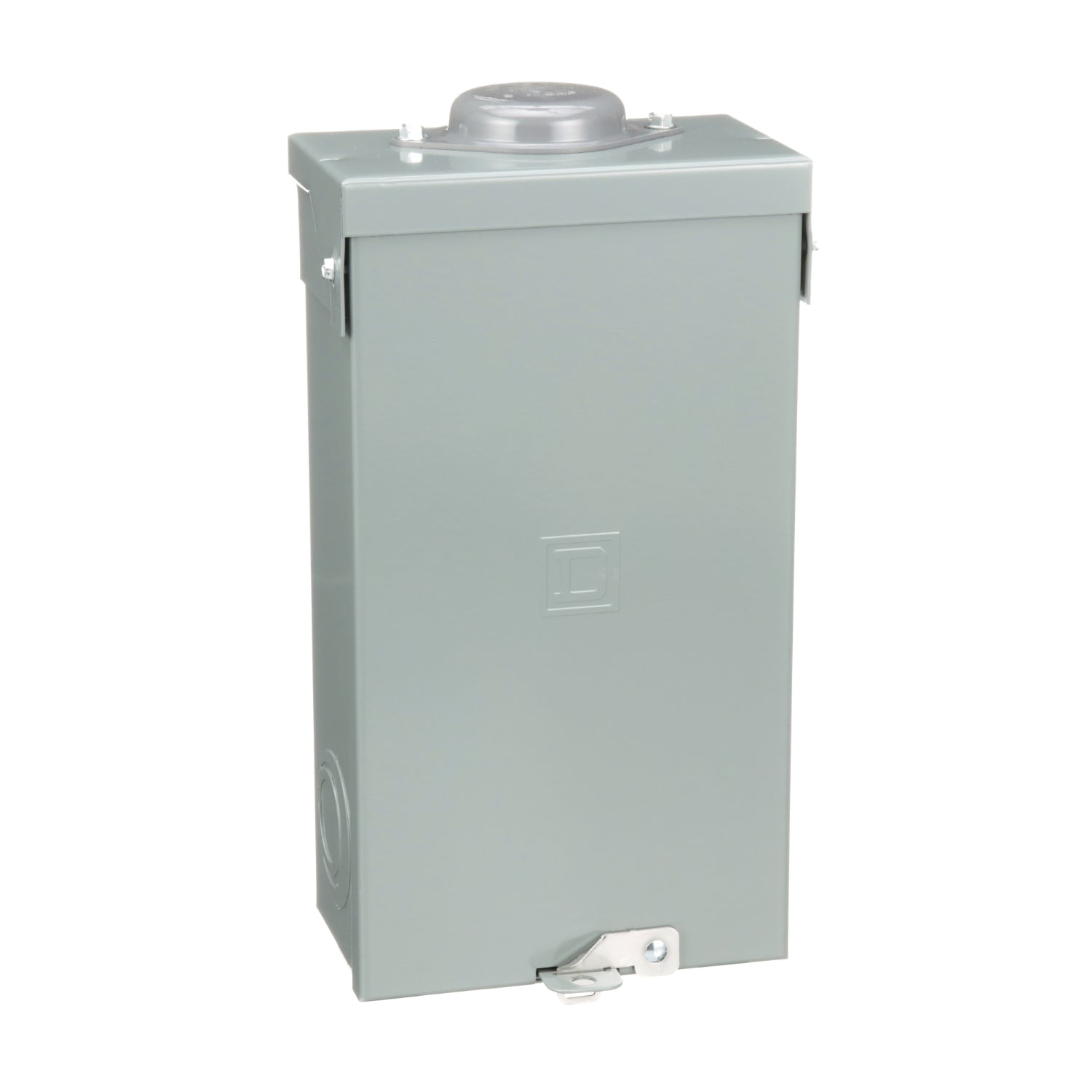

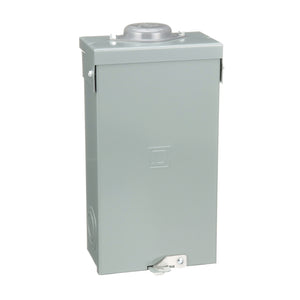

QO2100BNRB | Schneider Electric Circuit Breaker Enclosure
- Regular price
- $129.00
- Sale price
- $129.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2100BNRB
Description
The QO2100BNRB is a circuit breaker enclosure categorized under the QO series. It is designed for single-phase applications and features two spaces for accommodating circuit breakers. With a rating of 100A, this enclosure is compatible with QO and QOB circuit breakers, which offer one, two, and three-pole configurations with thermal magnetic trip mechanisms.
These circuit breakers are engineered to provide overcurrent protection and switching capabilities in both AC and DC systems, catering to residential, commercial, and industrial needs. The QO2100BNRB enclosure is suitable for indoor or outdoor use, offering versatility in application. It meets UL standards, ensuring compliance with safety regulations for electrical systems and equipment protection.
Technical Specifications
|
Part # |
QO2100BNRB |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Current Rating |
100 A |
|
Interrupt Rating |
22 kA |
|
Number of Spaces |
2 |
|
Maximum Number of Single Pole Circuits |
2 |
|
Maximum Number of Tandem Breakers |
0 |
|
Number of Phases |
1 phase |
|
Enclosure Rating |
NEMA 3R outdoor |
|
Breaker Compatibility |
Circuit breaker QO 2P |
|
Product Certifications |
UL Listed |
|
Wiring Configuration |
3-wire |
|
Electrical Connection |
Lugs |
|
Wire Size |
AWG 14...AWG 1 copper |
|
Surface Finish |
Baked enamel Gray |
|
Busbar Material |
Tin plated copper: busbar |
|
Box Number |
10R |
|
Ground Bar |
Grounding bar (ordered separately) |
|
Enclosure Material |
Welded galvannealed steel |
|
Enclosure Type |
Enclosure |
|
Height |
13.19 in (335 mm) |
|
Width |
6.93 in (176 mm) |
|
Depth |
4.12 in (104.65 mm) |
Information About QO2100BNRB
The QO2100BNRB is a circuit breaker enclosure designed to house QO series circuit breakers. These circuit breakers come in one, two, and three-pole configurations, featuring thermal magnetic trip mechanisms for overcurrent protection and switching capabilities in both AC and DC systems. They are engineered to meet the needs of residential, commercial, and industrial applications, ensuring the protection of electrical systems, equipment, and personnel.
This enclosure provides two spaces for accommodating circuit breakers, with a current rating of 100A. It is rated NEMA 3R, suitable for outdoor use, offering flexibility in installation locations. The NEMA 3R rating indicates resistance to rain, sleet, and ice formation, making it suitable for various outdoor environments.
The QO2100BNRB enclosure is UL Listed, ensuring compliance with safety standards and regulations. It is designed for use with 1-phase systems and supports a wiring configuration of 3-wire. The electrical connection is facilitated through lugs, accommodating wire sizes ranging from AWG 14 to AWG 1 copper.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
