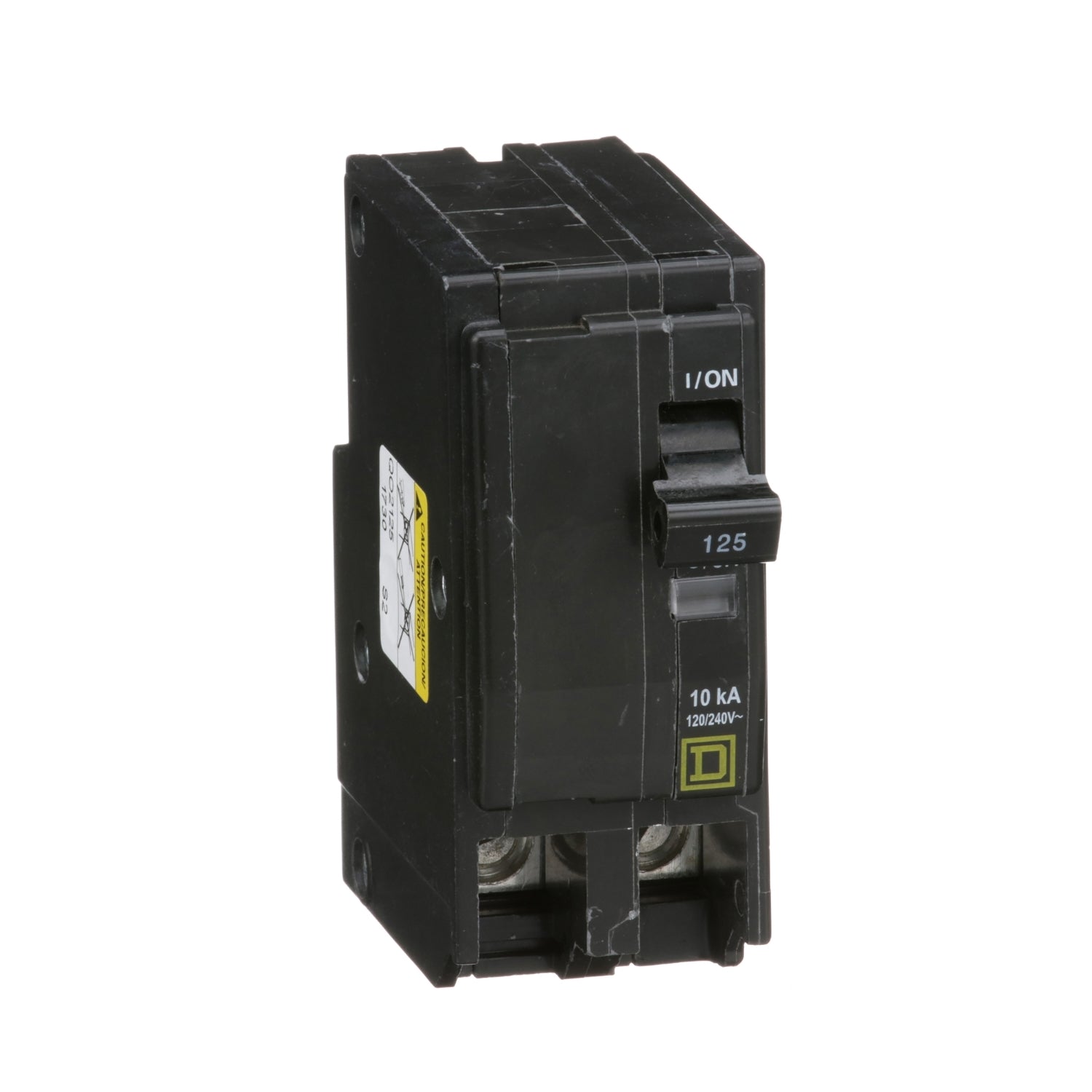

QO2125 | Schneider Electric Mini Circuit Breaker
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2125
Description
The QO2125 is a Mini Circuit Breaker from the QO series with a rating of 125A and 2 poles. Designed for both residential and commercial applications, QO and QOB thermal magnetic circuit breakers offer overcurrent protection and switching capabilities for AC and DC systems. These breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication for visual confirmation of circuit interruption.
Technical Specifications
|
Part Number |
QO2125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Range |
QO |
|
Current Rating |
125 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 4...AWG 2/0 copper or aluminium |
|
Tightening Torque |
49.56 lbf.in (5.6 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.75 lb(US) (0.340 kg) |
Information About QO2125
The QO2125 is a Mini Circuit Breaker from the QO series by Schneider Electric. It is a 2-pole thermal magnetic circuit breaker designed to offer overcurrent protection and switching capabilities for both AC and DC systems. Equipped with an over center, trip-free toggle mechanism, this circuit breaker ensures quick make and quick break action, along with positive handle indication for easy operation.
Featuring VisiTrip trip indication, the QO2125 provides a visual alert when the circuit breaker trips, indicating that the circuit has been interrupted. Additionally, a comprehensive range of features and factory-installed accessories are available for this circuit breaker, including shunt trips, auxiliary switches, and alarm switches, enhancing its versatility and functionality.
Rated at 125A and compatible with 120/240VAC systems, the QO2125 offers a breaking capacity of 10kA, ensuring reliable performance and protection against overcurrent conditions. Its plug-in mounting configuration facilitates easy installation and maintenance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
