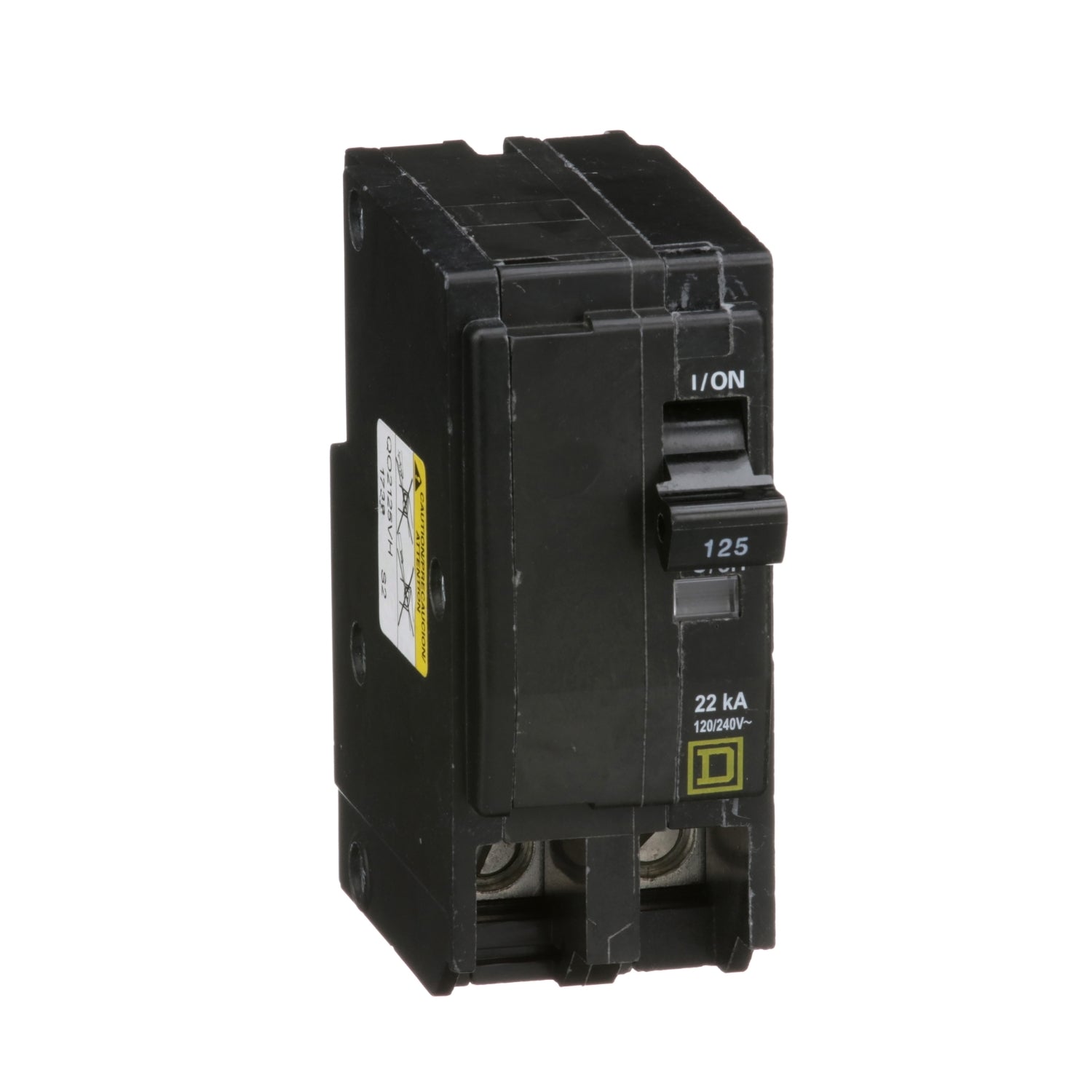

QO2125VH | Schneider Electric Main Breaker
- Regular price
- $195.00
- Sale price
- $195.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2125VH
Description
The QO2125VH is a Mini Circuit Breaker from the QO series by Schneider Electric. Offering overcurrent protection and switching capabilities for both AC and DC systems, QO circuit breakers feature a thermal magnetic trip mechanism.
Equipped with an over-center, trip-free toggle mechanism, these breakers ensure quick make, quick break action, and positive handle indication for user convenience. They also incorporate VisiTrip trip indication, providing a visual alert when the circuit breaker trips and interrupts the circuit.
Technical Specifications
|
Part # |
QO2125VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature Circuit-breaker |
|
Range |
QO |
|
Current Rating |
125 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Interrupt Rating |
22 kA 120/240 V AC |
|
|
22 kA 120 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 4...AWG 2/0 copper or aluminium |
|
Tightening Torque |
49.56 lbf.in (5.6 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.70 lb(US) (0.318 kg) |
Information About QO2125VH
The QO2125VH is a Mini Circuit Breaker part of the QO series by Schneider Electric. QO and QOB thermal magnetic circuit breakers are designed to offer overcurrent protection and switching capabilities for both AC and DC systems. These breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication for efficient operation.
In addition, QO circuit breakers come equipped with VisiTrip trip indication, providing a visual alert when the circuit breaker trips and interrupts the circuit. A comprehensive range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, are available to enhance functionality and customization options.
The QO2125VH is a 2-pole circuit breaker rated at 125A and operates at 120/240VAC. It offers a breaking capacity of 22kA and utilizes plug-in mounting for convenient installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
