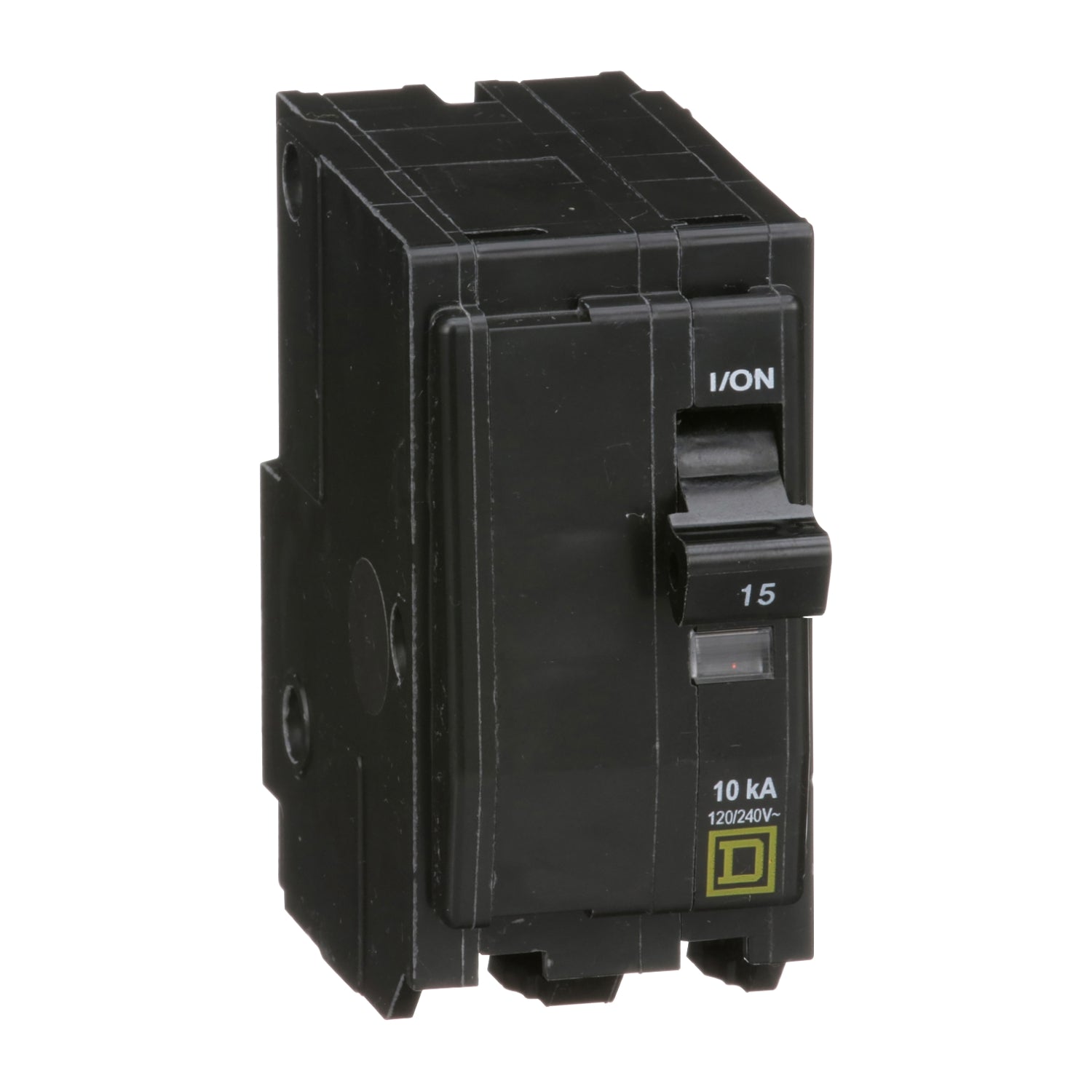

QO215 | Schneider Electric Mini Circuit Breaker
- Regular price
- $35.00
- Sale price
- $35.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO215
Description
Square D Miniature Circuit Breaker, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 1.5 in W x 2.91 in D Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO215 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 15 A |
| Connection type | Pressure Plate |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| Frame | QO/100 A |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Material | Fiberglass Filled Thermoset |
| Mounting type | Plug-On |
| Number of Poles | 2 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 104, 40, 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Standard |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 10 AWG, 14 to 8 AWG |
Information About QO215
The Schneider Electric QO215 is a reliable mini circuit breaker designed for residential and commercial applications. With an amperage rating of 15 A, it features pressure plate connections for secure wire attachment. Its compact dimensions of 3 inches in height, 1.5 inches in width, and 2.91 inches in depth ensure compatibility with standard electrical panels.
Constructed from fiberglass-filled thermoset material, the QO215 offers durability and reliability in varying environmental conditions. It operates at frequencies of 50/60 Hz and has an interrupt rating of 10 kA, providing effective protection against overcurrents and short circuits.
This circuit breaker is designed for plug-on mounting, facilitating easy installation and maintenance. It supports two poles and is suitable for single-phase applications with a voltage rating of 120/240 VAC. Wire sizes ranging from 14 to 10 AWG and 14 to 8 AWG can be accommodated, offering flexibility in wiring configurations.
The QO215 employs a thermal-magnetic trip type mechanism, ensuring quick response to overloads and short circuits while maintaining reliable operation. It operates within a temperature range of 104 to 40 degrees Fahrenheit (-40 to 40 degrees Celsius), making it suitable for a variety of indoor applications.
Overall, the Schneider Electric QO215 mini circuit breaker combines compact design, robust construction, and efficient performance, making it an ideal choice for residential and light commercial electrical distribution systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
