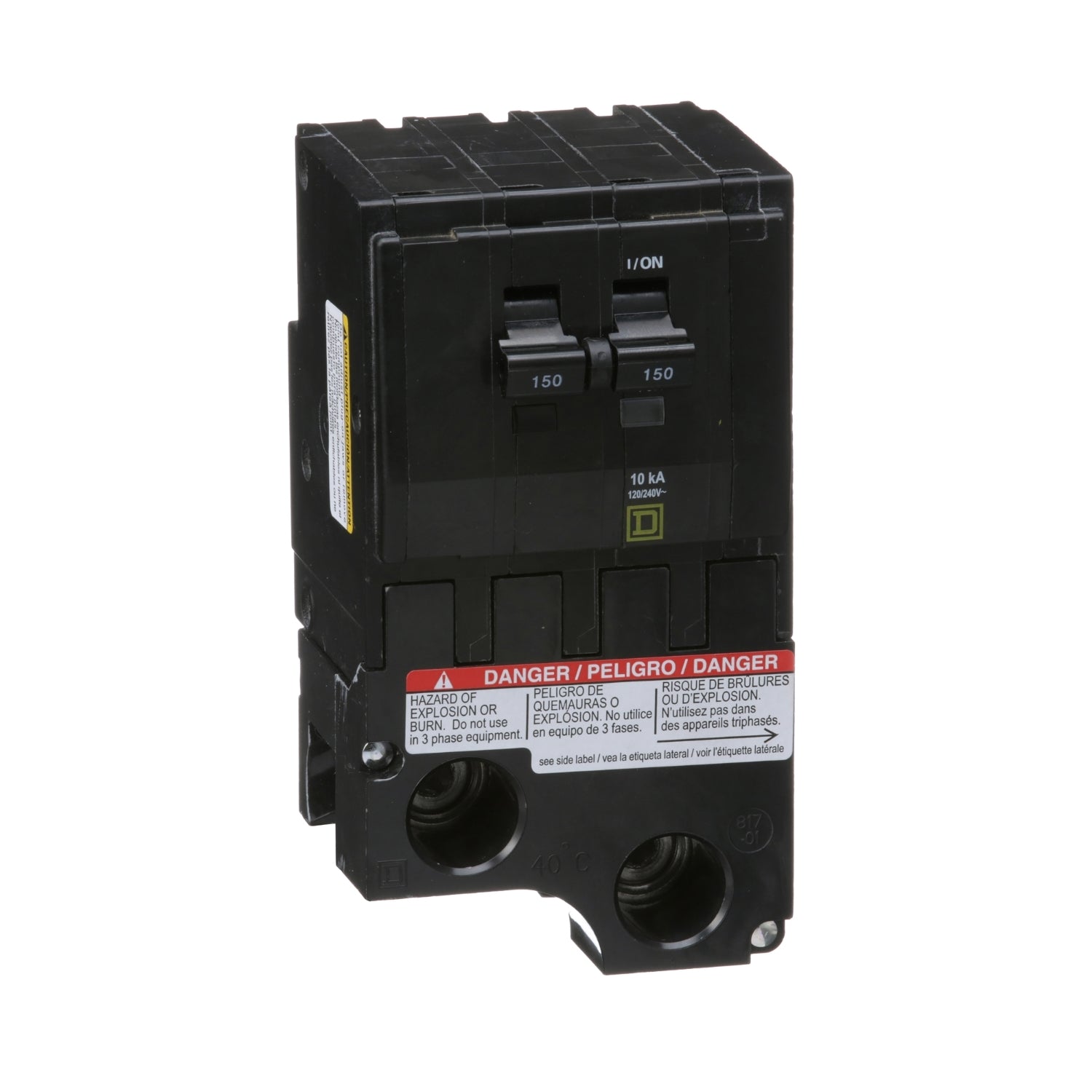

QO2150 | Schneider Electric Mini Circuit Breaker
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2150
Description
The QO2150 is a Mini Circuit Breaker belonging to the QO series, rated at 150A and featuring a 2-pole configuration. Designed for use on both AC and DC systems, QO and QOB one, two, and three-pole thermal magnetic circuit breakers offer overcurrent protection and switching capabilities.
Equipped with an over center, trip-free toggle mechanism, these circuit breakers ensure quick make, quick break action with positive handle indication. They also feature VisiTrip trip indication, providing a visual signal when the breaker has tripped and interrupted the circuit.
The QO2150 boasts a 10kA breaking capacity, ensuring reliable performance under varying loads. It supports plug-in mounting for easy installation.
Technical Specifications
|
Part # |
QO2150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
150 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Number of Panel Spaces |
4 |
|
Wire Size |
AWG 1...300 kcmil copper or aluminium |
|
Tightening Torque |
250.48 lbf.in (28.3 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
2.63 lb(US) (1.193 kg) |
Information About QO2150
The QO2150 is a Mini Circuit Breaker belonging to the QO series, designed for electrical systems operating at both AC and DC voltages. These circuit breakers, available in one, two, and three-pole configurations, offer overcurrent protection and switching capabilities. They feature an over center, trip-free toggle mechanism, ensuring quick make and break actions with positive handle indication.
The QO2150 incorporates VisiTrip trip indication, providing a visual signal when the circuit breaker trips and interrupts the circuit. Additionally, a comprehensive range of features and factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches are available to enhance functionality as needed.
This specific 2-pole QO circuit breaker is rated for a current of 150A at 120/240VAC. It offers a breaking capacity of 10kA and supports plug-in mounting for convenient installation. QO circuit breakers hold UL Listing under UL File E84967 and are CSA Certified under CSA Master Contract 153555, ensuring compliance with safety and performance standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
