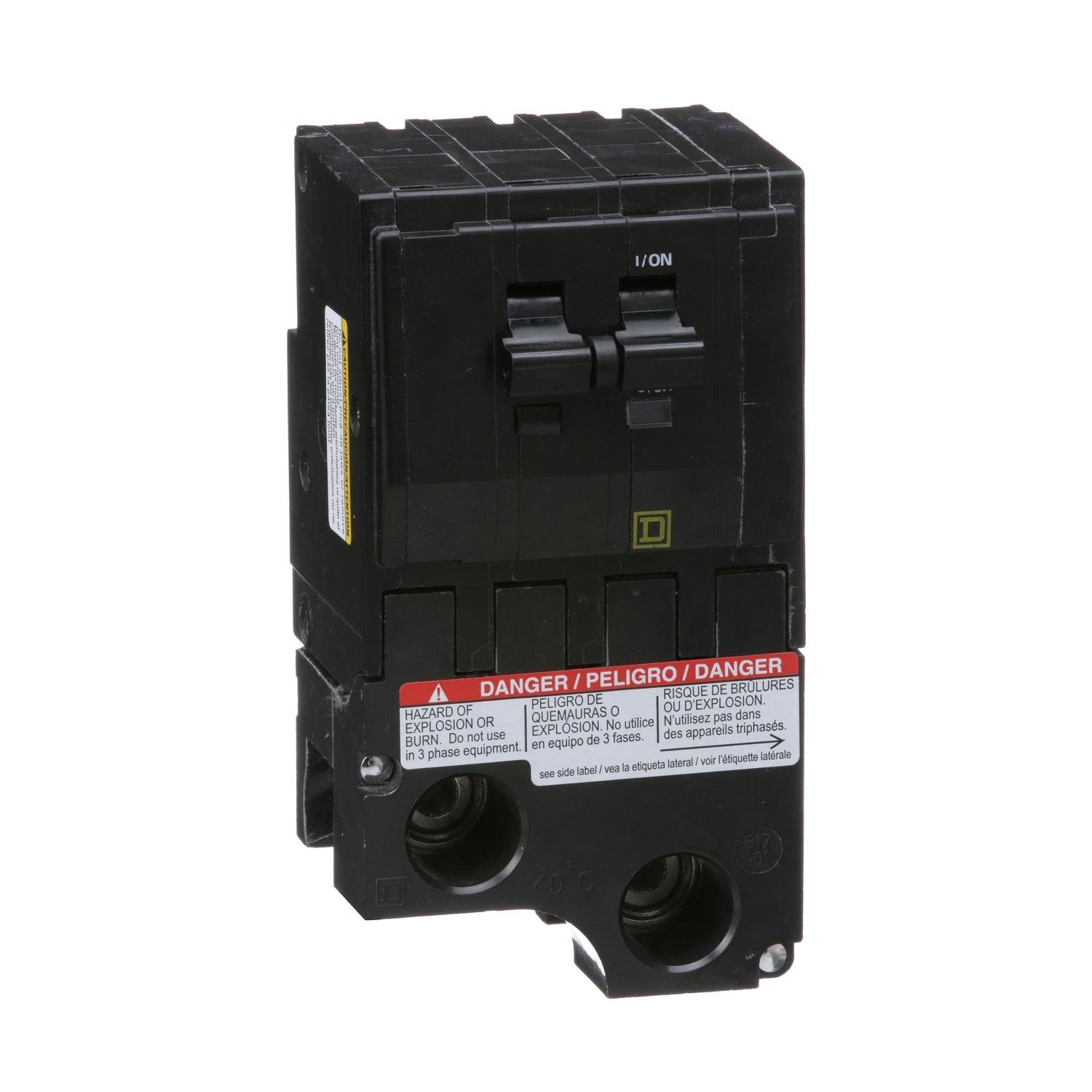

QO2150VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO2150VH
Description
The Schneider Electric QO2150VH is a miniature circuit breaker designed to provide overcurrent protection and switching for residential, commercial, and light industrial electrical systems. Rated at 150 A and 120/240 V AC, this 2-pole breaker uses a thermal magnetic mechanism to ensure dependable protection against overloads and short circuits. The QO2150VH integrates VisiTrip technology for clear visual indication when a trip occurs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO2150VH |
| Subcategory | Molded Case Circuit Breaker Product |
| Type | Miniature circuit breaker |
| Series / Range | QO |
| Current Rating | 150 A |
| Voltage Rating | 120/240 V AC |
| Secondary Voltage Rating | 120 V AC |
| Number of Poles | 2 |
| Mounting Type | Plug-in |
| Circuit Breaker Type | Standard |
| Electrical Connection | Box lugs |
| Wire Size | AWG 1…300 kcmil copper or aluminum |
| Tightening Torque | 250.48 lbf·in (28.3 N·m) |
| Number of Panel Spaces | 4 |
| Height | 5.71 in (145 mm) |
| Width | 2.99 in (76 mm) |
| Depth | 4.88 in (124 mm) |
| Net Weight | 2.75 lb (1.247 kg) |
Information About QO2150VH
The QO2150VH is a thermal magnetic miniature circuit breaker from the Schneider Electric QO series, engineered for compact panel installations requiring high current capacity. Its plug-in construction with an over-center, trip-free toggle mechanism ensures rapid interruption and consistent mechanical performance under fault conditions. Designed for seamless integration with QO load centers, it supports box lug connections for copper or aluminum conductors across a wide wire range. This circuit breaker is commonly used in power distribution panels where reliable circuit isolation, visual trip indication, and standardized accessories are required.
Key Features:
- Thermal magnetic protection: Combines overload and short-circuit protection in one mechanism.
- Trip-free toggle design: Prevents the breaker from being held closed during a fault condition.
- VisiTrip indicator: Provides visual confirmation when the breaker has tripped.
- 2-pole configuration: Supports multi-phase or high-capacity branch circuits.
- Plug-in mounting: Allows fast and secure installation in compatible QO panels.
- High current rating: Rated at 150 A for demanding electrical loads.
- Box lug terminals: Ensures secure electrical connections for large conductors.
- Positive handle indication: Clearly shows ON, OFF, or TRIPPED status.
- Compact form factor: Optimized for efficient use of panel space.
- Accessory compatibility: Supports auxiliary, shunt trip, and alarm accessories.
The QO2150VH delivers the reliability and precision required for safe power distribution and circuit protection in electrical panel systems.
