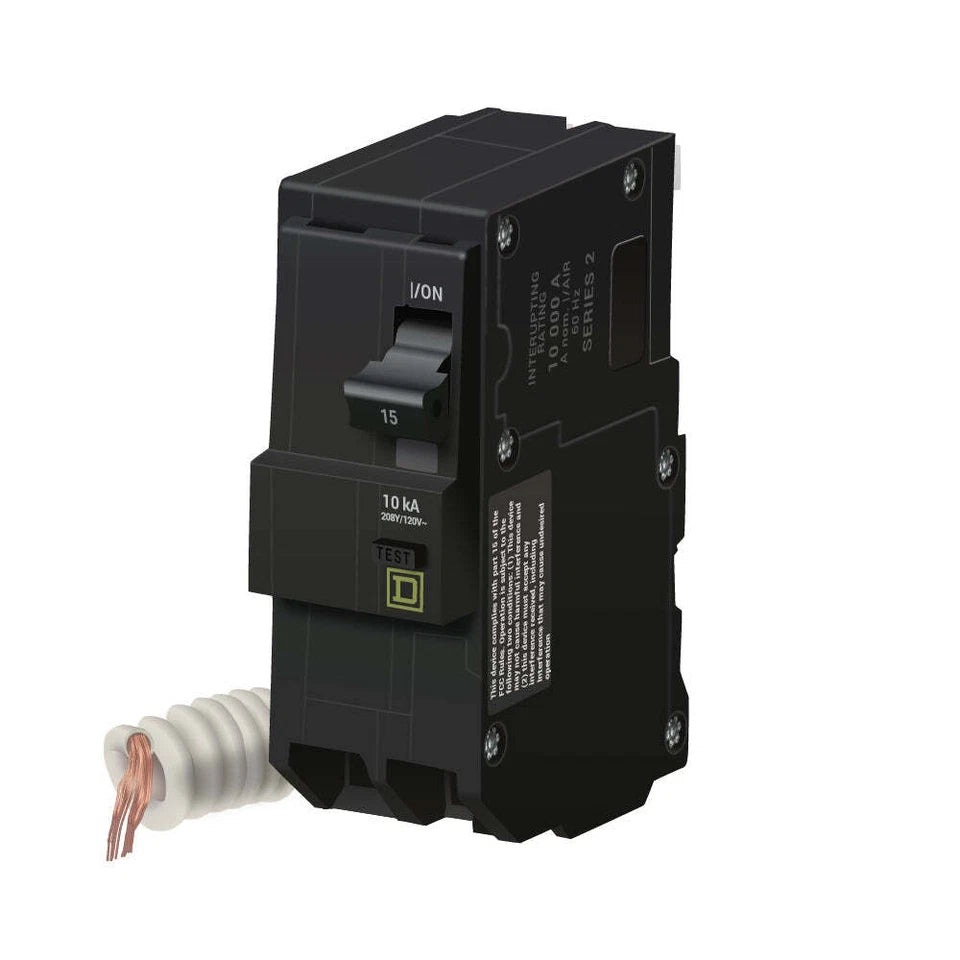

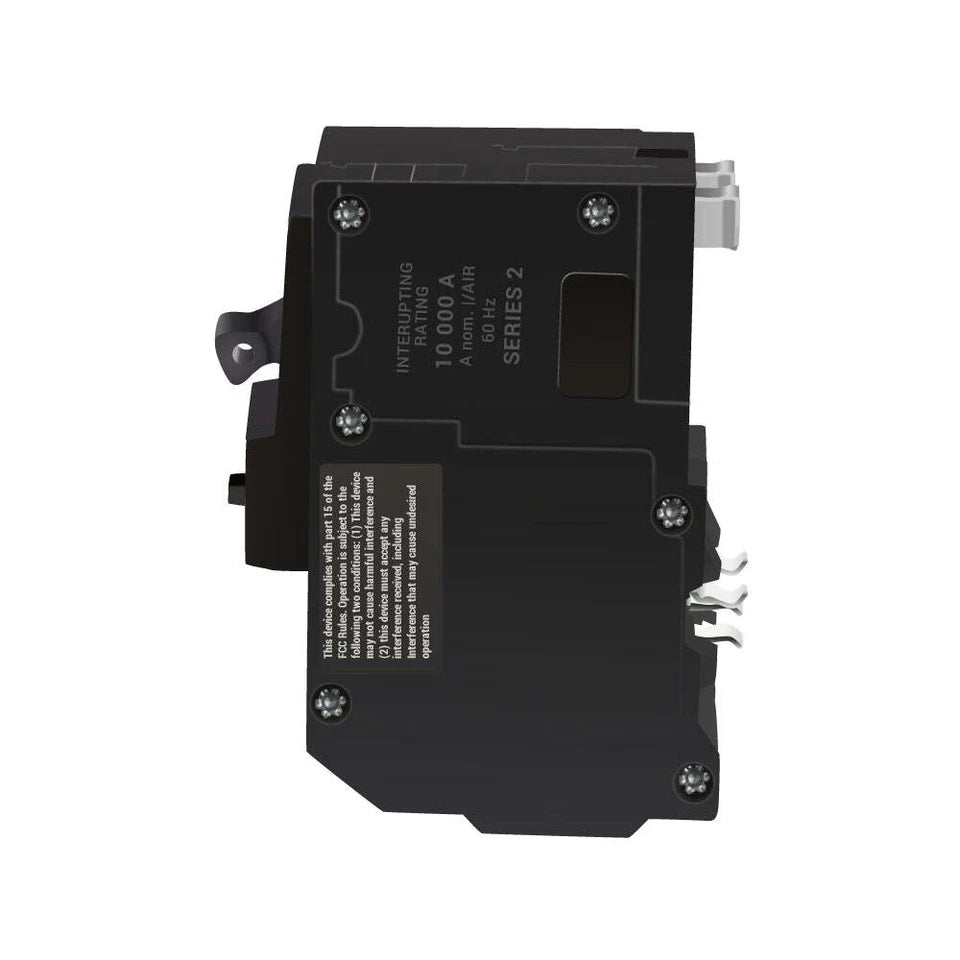

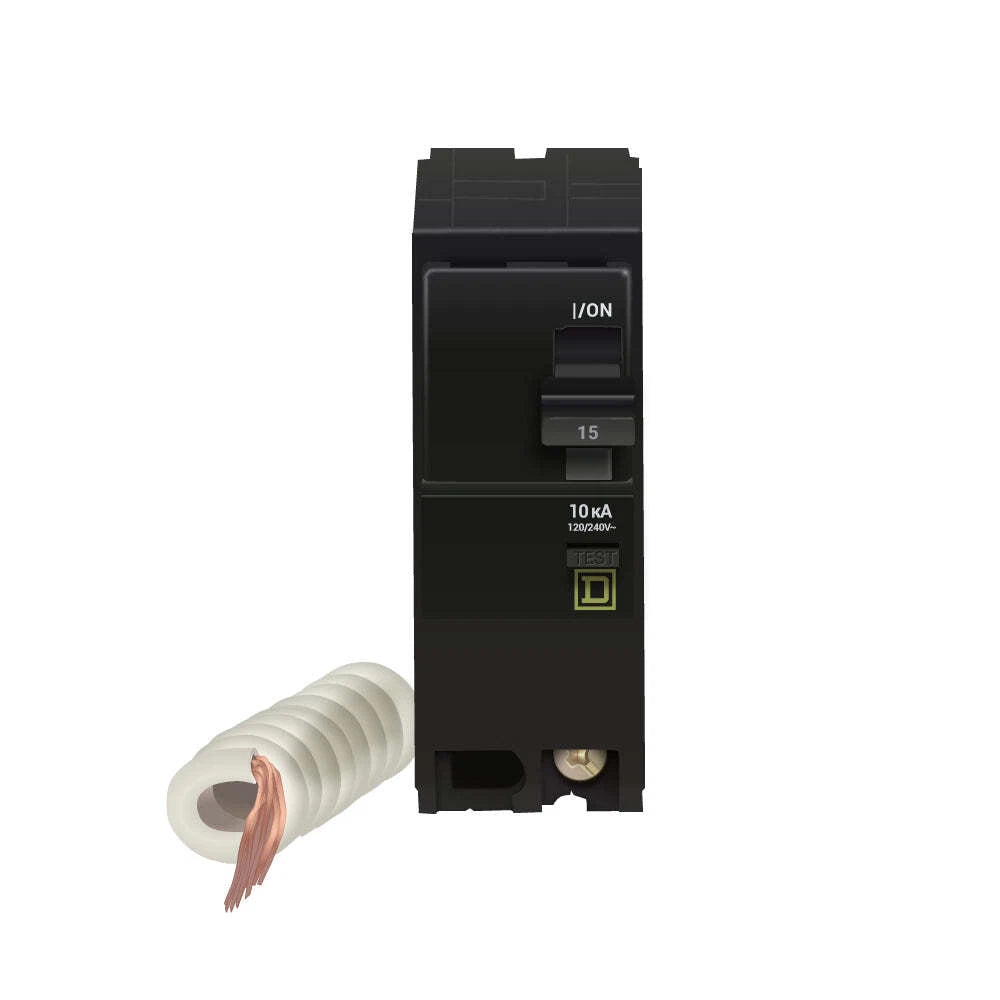

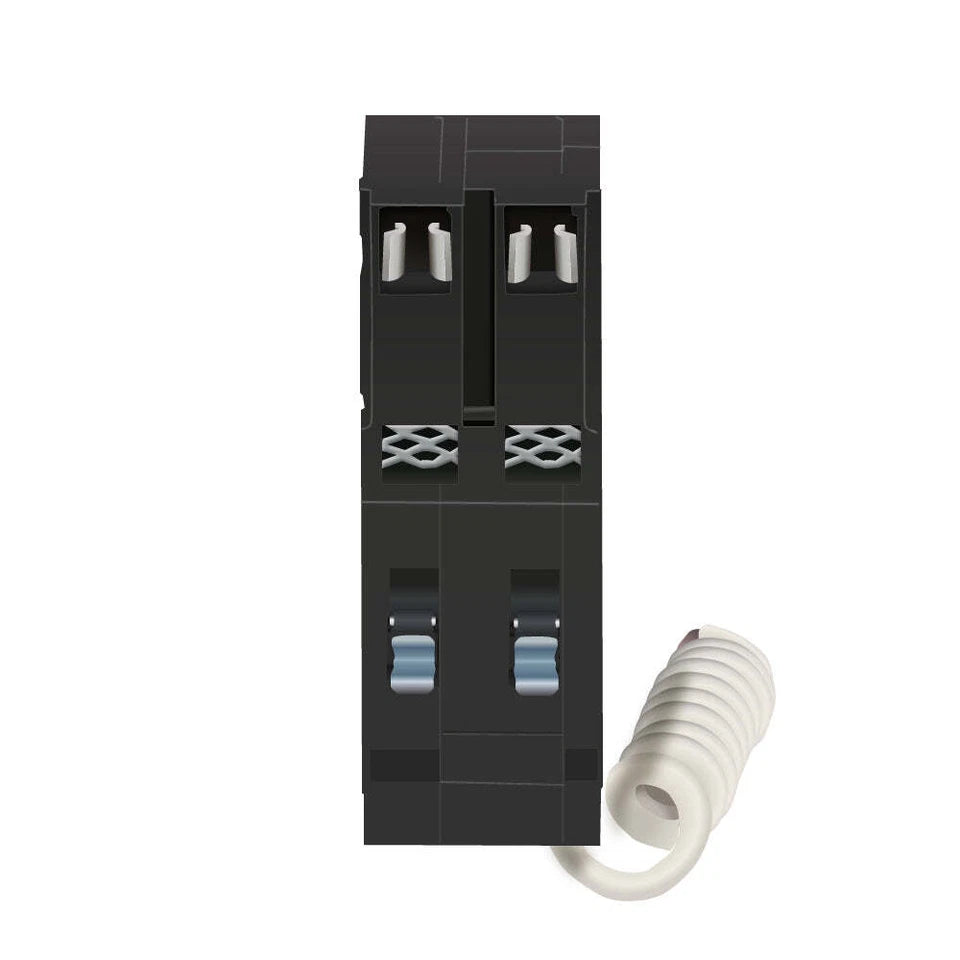

QO215EPD | Square D 15A 2-Pole 120/240V QO GFCI Circuit Breaker
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO215EPD
Description
The Square D QO215EPD is a 2-pole miniature circuit breaker designed to provide ground fault and overcurrent protection in residential and light commercial electrical systems. Rated at 15 amps and 120/240VAC, this breaker combines thermal-magnetic protection with Class B GFCI functionality for enhanced circuit safety.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | QO215EPD |
| Subcategory | GFCI Circuit Breaker |
| Series | QO |
| Circuit Breaker Type | Miniature / GFCI |
| Amperage | 15 Amp |
| Voltage Rating | 120/240 VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Frame Type | QO |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Interrupting Rating | 10kAIC at 120/240 VAC |
| Terminal Connection | Pressure Plate |
| Wire Gauge | AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum |
| Temperature Rating | 40 °C |
| Dimensions (HxWxL) | 4.12 in x 1.50 in x 2.91 in |
| Certifications | UL, CSA |
| Weight | 0.882 lb |
Information About QO215EPD
The QO215EPD is part of Square D’s widely used QO series, known for compact construction and reliable performance in panelboard applications. This breaker features a plug-in mounting design that allows quick installation into compatible QO load centers. Designed for single-phase systems, it supports two-pole configurations and provides both long-time and instantaneous trip protection. Its integrated ground fault protection helps reduce the risk of electrical shock while maintaining compliance with UL and CSA standards.
Key Features:
- 15 Amp Current Rating: Suitable for branch circuit protection in residential and light commercial systems.
- 2-Pole Design: Supports 120/240VAC single-phase electrical applications.
- GFCI Protection: Class B ground fault protection rated at 30 mA.
- Thermal-Magnetic Trip Unit: Provides dependable overload and short-circuit protection.
- LI Trip Functions: Long-time and instantaneous response improves circuit reliability.
- Plug-In Mounting: Enables fast installation and easy replacement in QO panelboards.
- 10kA Interrupting Rating: Rated to interrupt fault currents up to 10kA at 120/240VAC.
The QO215EPD delivers the reliability and precision required for branch circuit and ground fault protection applications.
