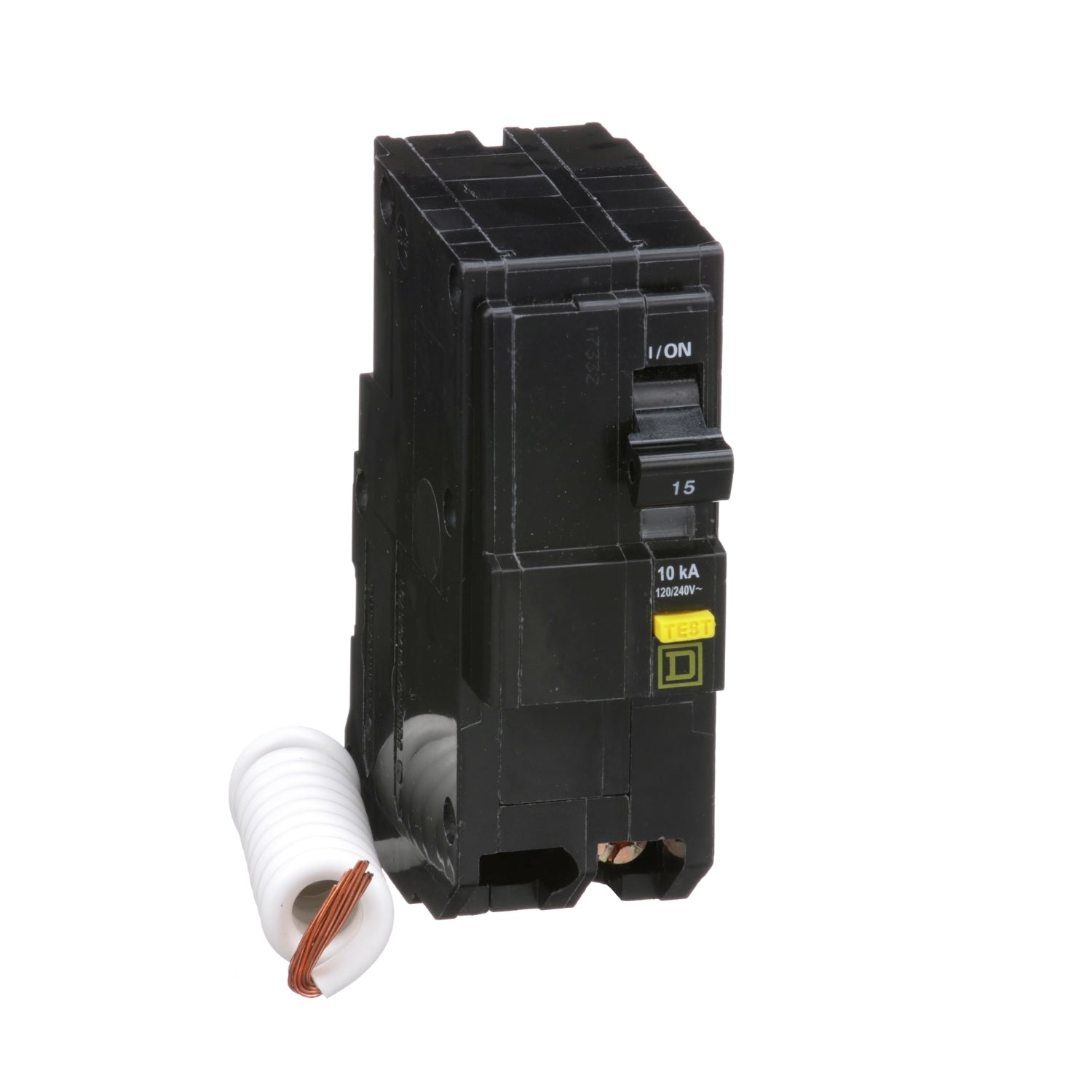

QO215GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $210.00
- Sale price
- $210.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO215GFI
Description
The QO215GFI is a two-pole Mini Circuit Breaker from the QO series, providing thermal magnetic overcurrent protection and switching capabilities for both AC and DC systems. Featuring an over center, trip-free toggle mechanism with quick make and break action, it includes VisiTrip trip indication for clear visual confirmation of tripped conditions. This circuit breaker is specifically rated for 15A at 120/240VAC, offering a 10kA breaking capacity with plug-in mounting for straightforward installation.
Technical Specifications
|
Part # |
QO215GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Type |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
15 A |
|
Voltage Rating |
120/240 V AC, 120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m), 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4) |
|
Height |
4.13 in (105 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.95 lb(US) (0.431 kg) |
Information About QO215GFI
The QO215GFI Mini Circuit Breaker is part of the QO series by Schneider Electric, designed to provide essential overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers feature an over center, trip-free toggle mechanism with quick make and quick break action, ensuring reliable operation and positive handle indication for ease of use. Additionally, they are equipped with VisiTrip trip indication, offering a visual signal when the breaker has tripped to interrupt the circuit.
This specific 2-pole QO circuit breaker model is rated at 15A with an operational voltage of 120/240VAC. It boasts a robust 10kA breaking capacity, making it suitable for handling potential short circuit situations effectively. The breaker is designed for plug-in mounting, facilitating easy installation and maintenance.
Key features of the QO215GFI include its capability to provide ground fault protection with a 6mA sensitivity, enhancing safety in electrical installations. The product supports various factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, allowing for customized configurations to meet specific application requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
