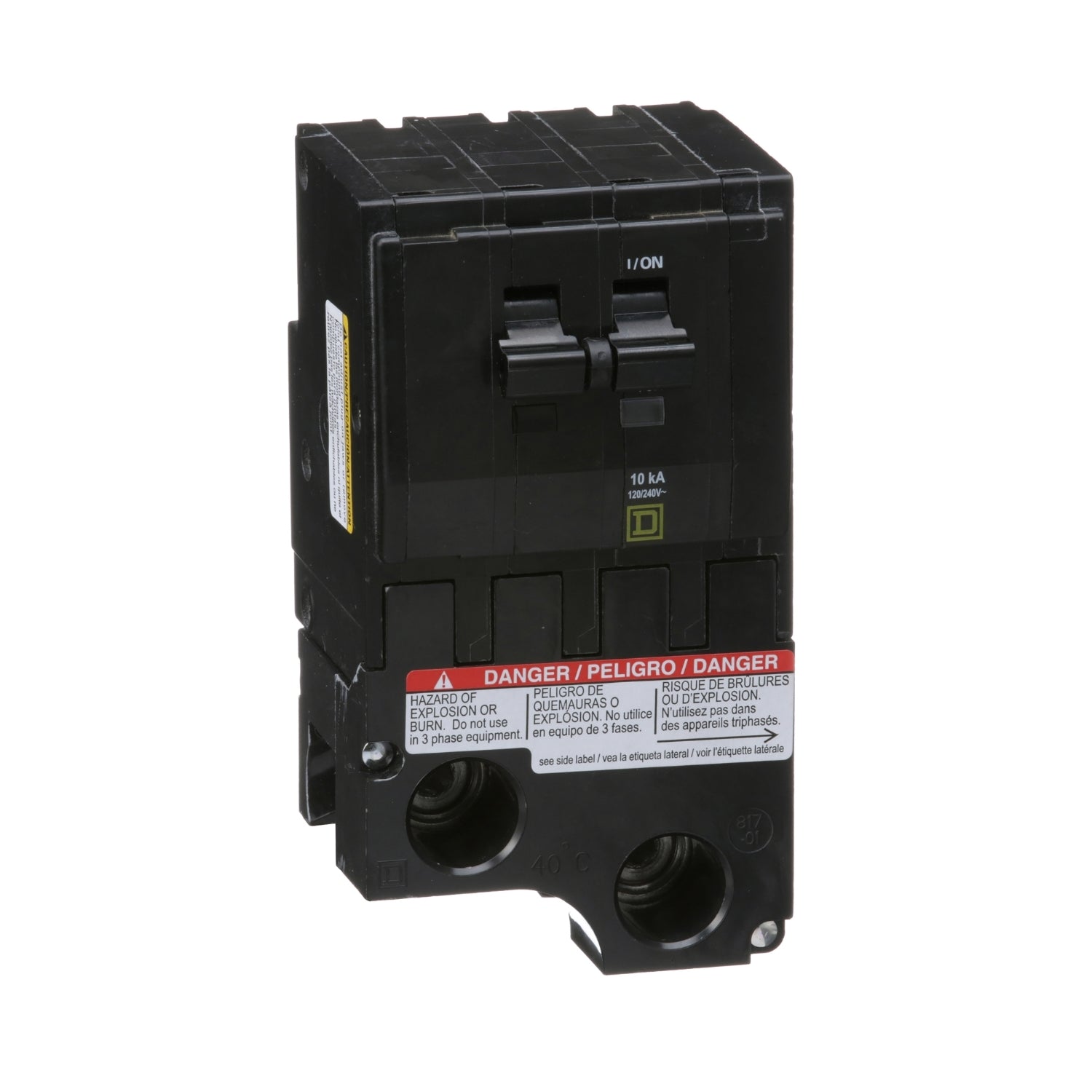

QO2175 | Schneider Electric QO Series 2-Pole 175A 120/240V Plug-In Thermal-Magnetic Circuit Breaker
- Regular price
- $305.00
- Sale price
- $305.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QO2175
Description
The Schneider Electric QO2175 is a 175-amp, two-pole molded case circuit breaker designed for dependable protection in 120/240V single-phase electrical systems. Part of the QO Series, it uses a thermal-magnetic trip unit with long-time and instantaneous functions to guard against overloads and short-circuit faults. Its plug-in mounting design ensures quick, secure installation in QO Series load centers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO2175 |
| Subcategory | Molded Case Circuit Breaker |
| Family | QO Series |
| Type | QO |
| Voltage Rating | 120/240 V |
| Amperage Rating | 175 A |
| Phase | 1-Phase |
| Poles | 2 |
| AIC Rating | 10 kA @ 240 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | Plug-In |
| Compatible Load Centers | QO Series |
| Application | Residential and commercial high-capacity circuit protection |
Information About QO2175
The QO2175 belongs to Schneider Electric’s QO Series, a widely used breaker line known for reliability and compatibility with residential and light commercial load centers. Built with a compact molded case enclosure, the breaker integrates seamlessly into QO plug-in panelboards via its two-pole configuration, making it suitable for high-capacity single-phase loads. The thermal-magnetic trip technology provides dependable long-time overload protection and instantaneous short-circuit response, while its 10 kA interrupt rating at 240V meets typical fault-level requirements for service entrance or feeder protection. Designed specifically for QO Series installations, the QO2175 offers consistent performance and secure electrical connections.
Key Features:
- QO Series design: Compatible with Schneider Electric QO load centers.
- 175A current rating: Supports high-capacity residential and commercial circuits.
- 120/240V single-phase operation: Ideal for service disconnects or large feeder loads.
- Thermal-magnetic trip unit: Provides overload and short-circuit protection.
- LI protection functions: Long-time and instantaneous trip characteristics.
- 10 kA interrupt rating: Suitable for common residential and commercial fault conditions.
- Two-pole configuration: Ensures simultaneous disconnection of both ungrounded conductors.
- Plug-in connection: Simplifies installation and replacement in QO panelboards.
- Molded case construction: Durable housing for long-term, reliable operation.
- Application versatility: Suitable for feeders, subpanels, and high-demand circuits.
The QO2175 delivers the reliability and precision required for high-capacity single-phase electrical protection.
