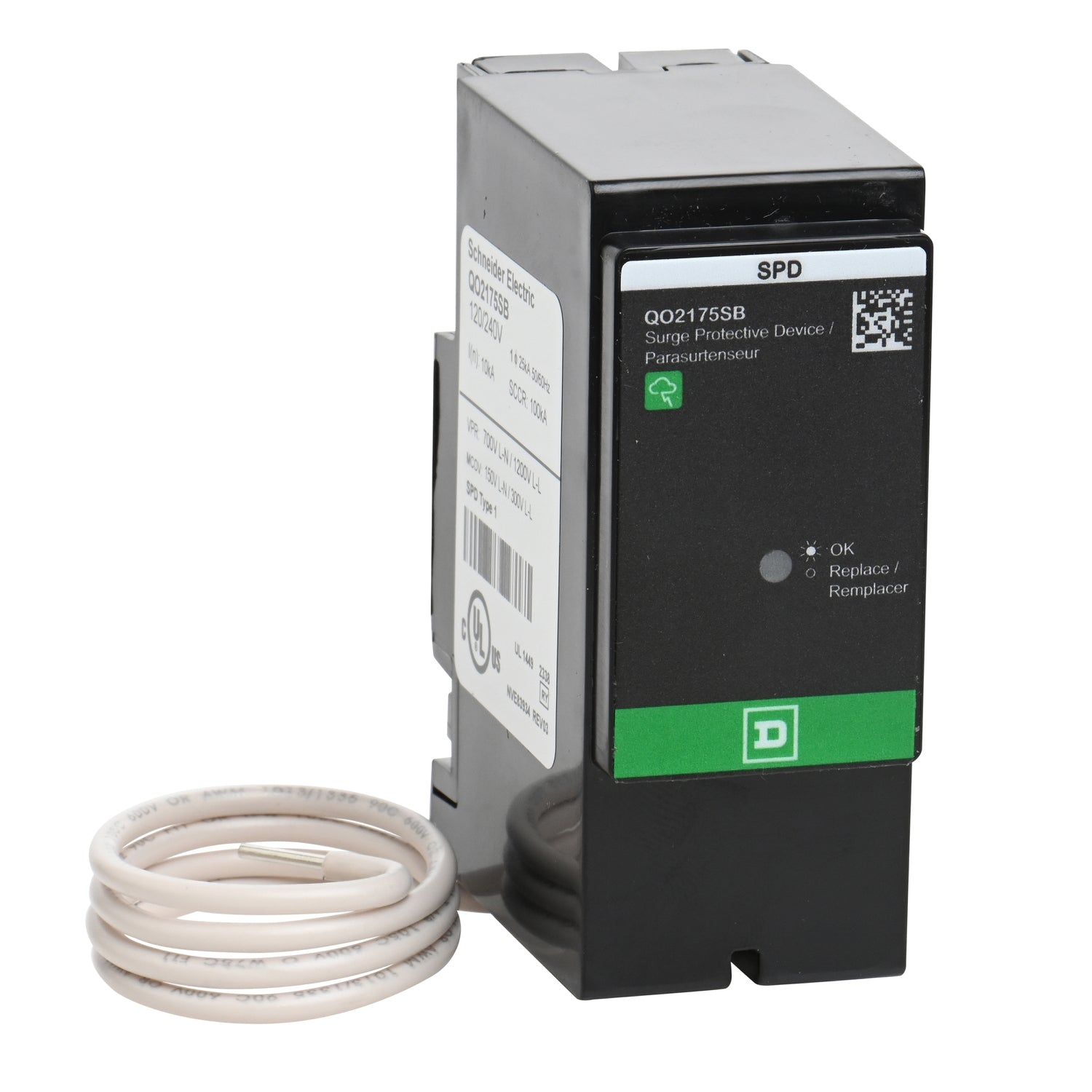

QO2175SB | Schneider Electric Surge Protection Device
- Regular price
- $97.00
- Sale price
- $97.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO2175SB
Description
The QO2175SB Surge Protection Device is part of the Surgebreaker series and is designed to provide surge protection for electrical systems. Specifically engineered for QO Load Centers, it offers surge protection for 120/240 VAC, 1 Phase, 3 Wire systems. This Surgebreaker serves as a secondary surge arrestor, safeguarding electrical service and major household appliances (excluding electronic devices). It is suitable for use in 3 wire single-phase systems.
Technical Specifications
|
Part # |
QO2175SB |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Voltage Rating |
120/240 V AC |
|
MCOV |
150 V |
|
|
300 V |
|
SCCR |
22 kA |
|
Joule Rating |
900 J |
|
Surge Current |
22.5 kA |
|
Nominal Discharge Current |
5 kA |
|
Response Time |
< 50 ns |
|
Protection Type |
Thermal fuse |
|
Power Consumption per Phase |
500 mW |
|
Number of Phases |
1 phase |
|
Wiring Configuration |
3-wire |
|
Local Signalling |
1 LED green normal operation |
|
Product destination |
Load center QO |
|
Height |
3.7 in (93.98 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
2.6 in (66.04 mm) |
|
Ambient Operating |
-4…149 °F (-20…65 °C) |
|
Enclosure Rating |
NEMA 2 |
Information About QO2175SB
QO2175SB is a Surge Protection Device, specifically a Surgebreaker, with a surge current rating of 22.5kA, designed for 120/240 VAC systems operating in a single-phase configuration with three wires. It falls under the category of SPD Type 2.
This Surgebreaker is tailored for integration within QO Load Centers, which offer advanced features such as accommodating QO breakers, ground arc fault interrupters, and surge arresters internally. These load centers are versatile, supporting both single and three-phase configurations, with options for indoor and outdoor installations.
Indoor enclosures of the QO Load Centers are engineered for flexibility, capable of rotating 180 degrees to suit either top or bottom service entrance feed, effectively optimizing cable installation and reducing associated costs.
As a secondary surge arrestor specifically designed for QO load centers, the QO2175SB is primarily tasked with safeguarding electrical service and major household appliances, excluding electronic devices. It is engineered for use in single-phase systems operating at 120/240 VAC with three wires, featuring a NEMA 1 indoor rating.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
