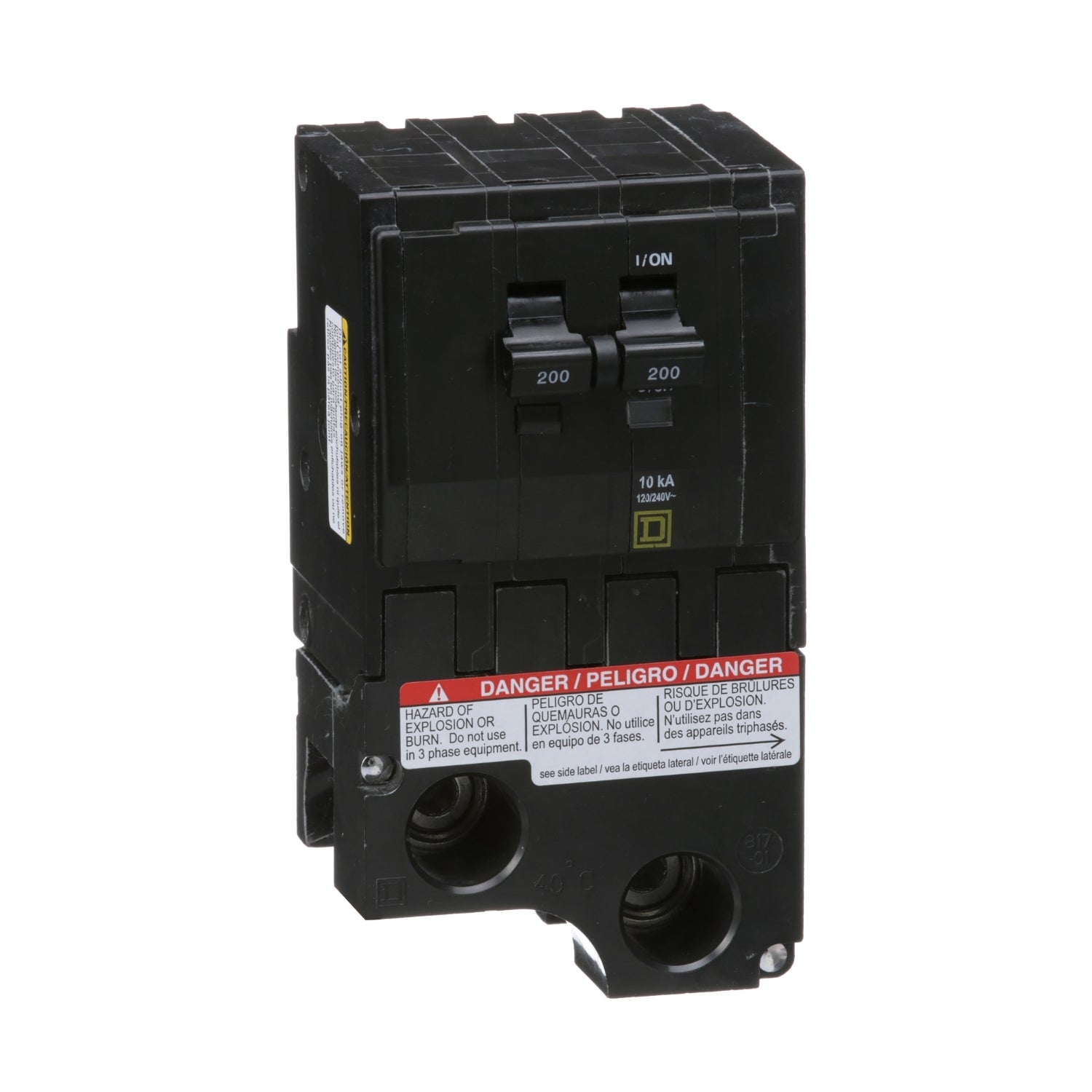

QO2200 | Schneider Electric 200A Circuit Breaker
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO2200
Description
The QO2200 is a 200A circuit breaker designed to provide overcurrent protection and switching capabilities for AC and DC systems. It is part of the QO and QOB series, available in one, two, and three poles, utilizing a thermal magnetic mechanism. These circuit breakers feature an over center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, offering visual confirmation of tripped circuits.
Technical Specifications
|
Part # |
QO2200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
200 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Number of Panel Spaces |
4 |
|
Wire Size |
AWG 1...300 kcmil copper or aluminium |
|
Tightening Torque |
250.48 lbf.in (28.3 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
2.55 lb(US) (1.157 kg) |
Information About QO2200
The QO2200 is a circuit breaker designed to offer overcurrent protection and switching capabilities for AC and DC systems. Belonging to the QO and QOB series, these thermal magnetic circuit breakers are available in one, two, and three poles, featuring an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. They are also equipped with VisiTrip trip indication, offering visual confirmation when the circuit breaker has tripped and interrupted the circuit.
These circuit breakers come with a range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, enhancing their functionality and versatility. The QO2200 is specifically a 2-pole circuit breaker rated at 200A at 120/240VAC, providing a breaking capacity of 10kA. It is designed for plug-in mounting, ensuring ease of installation and maintenance.
Furthermore, QO circuit breakers hold UL Listing under UL File E84967 and are CSA Certified under CSA Master Contract 153555, demonstrating compliance with industry safety standards and regulations. This certification ensures that the QO2200 meets rigorous performance and safety requirements, providing reliable protection for electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
