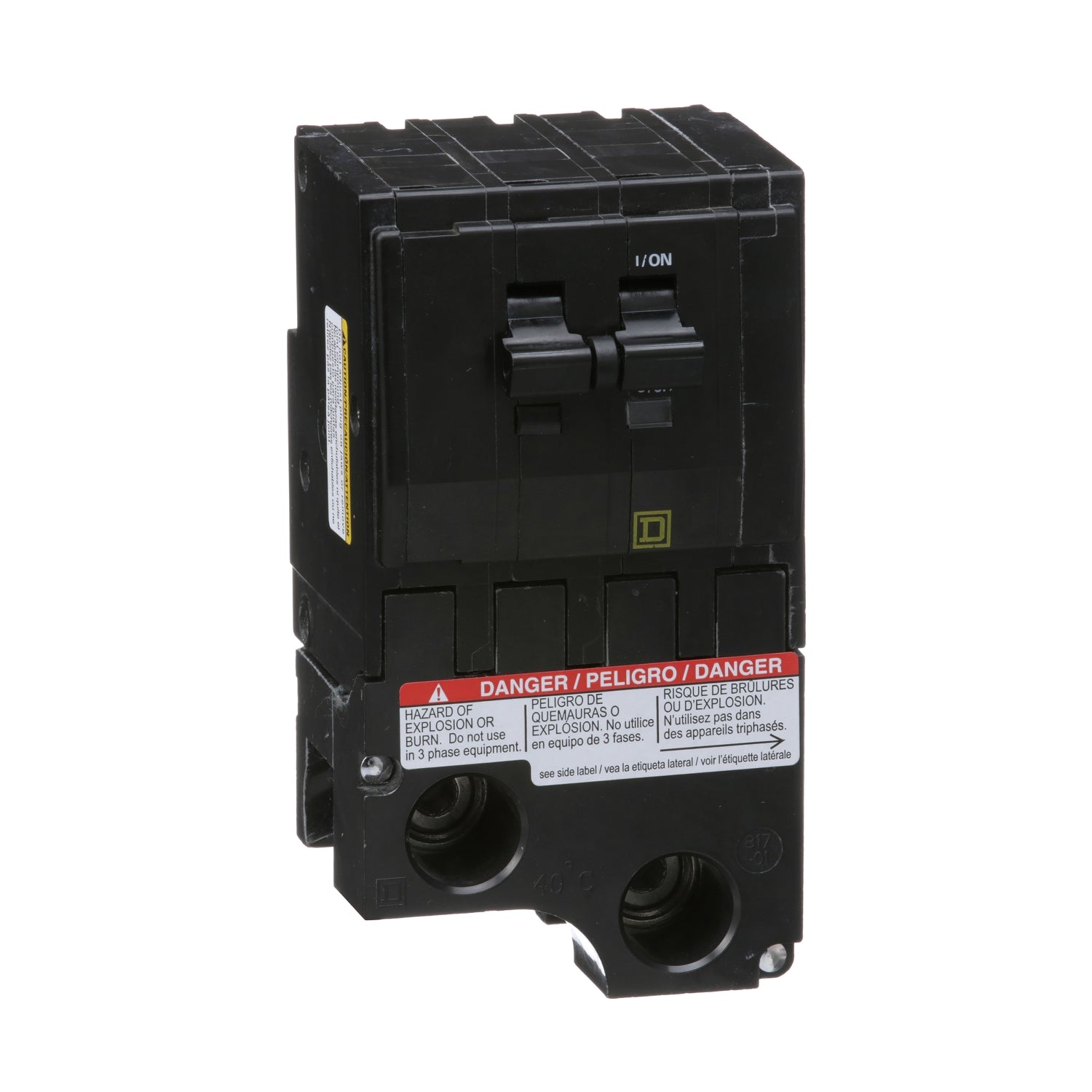

QO2200VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $544.00
- Sale price
- $544.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2200VH
Description
The QO2200VH is a mini circuit breaker falling under the QO series, featuring a 2-pole configuration with a current rating of 200A. Engineered to provide overcurrent protection and switching functionalities in both AC and DC systems, QO and QOB thermal magnetic circuit breakers incorporate an over-center, trip-free toggle mechanism. This mechanism ensures quick make and quick break actions, complemented by positive handle indication and VisiTrip trip indication for visual confirmation of trip occurrences.
A comprehensive range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, are available, enhancing the breaker's functionality and versatility.
Technical Specifications
|
Part # |
QO2200VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Amps |
200 Amp |
|
Breaker Interrupt Rating |
22KA @120/240VAC |
|
Breaker Line Side Term Method |
PLUG-IN |
|
Breaker Load Side Term Method |
Lugs |
|
Circuit Breaker Type |
MCB |
|
Frame |
QO |
|
Manufacturer |
Square D by Schneider Electric |
|
Number of Poles |
2 Pole |
|
Product Description |
120/240 V, 200Amp, 2-Pole |
|
Trip Type |
Thermal Magnetic |
|
UNSPSC |
39121603 |
|
UPC |
785902000000 |
|
Volts |
120/240 V |
|
Width |
0 |
Information About QO2200VH
The QO2200VH is a mini circuit breaker from the QO series, featuring a 2-pole configuration with a current rating of 200A. Designed to provide overcurrent protection and switching capabilities for both AC and DC systems, QO and QOB thermal magnetic circuit breakers incorporate an over center, trip-free toggle mechanism. This mechanism ensures quick make and quick break actions, complemented by positive handle indication and VisiTrip trip indication for visual confirmation of trip occurrences.
A comprehensive range of features and factory-installed accessories, such as shunt trips, auxiliary switches, and alarm switches, are available, enhancing the breaker's functionality and versatility.
Rated for operation at 120/240VAC, the QO2200VH boasts a robust 22kA breaking capacity, ensuring reliable protection against overcurrent conditions. Its plug-in mounting type facilitates easy installation, minimizing downtime during maintenance procedures.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
