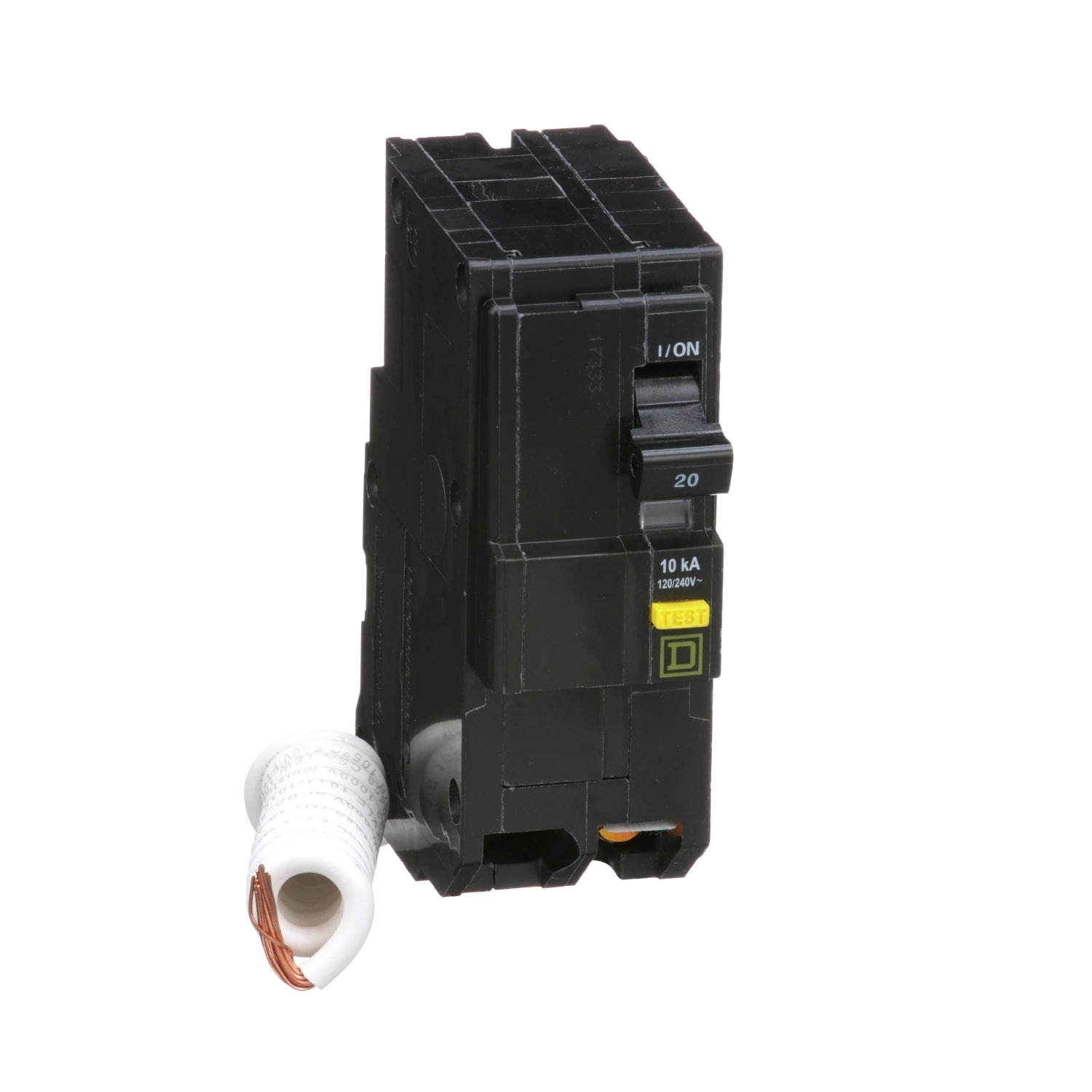

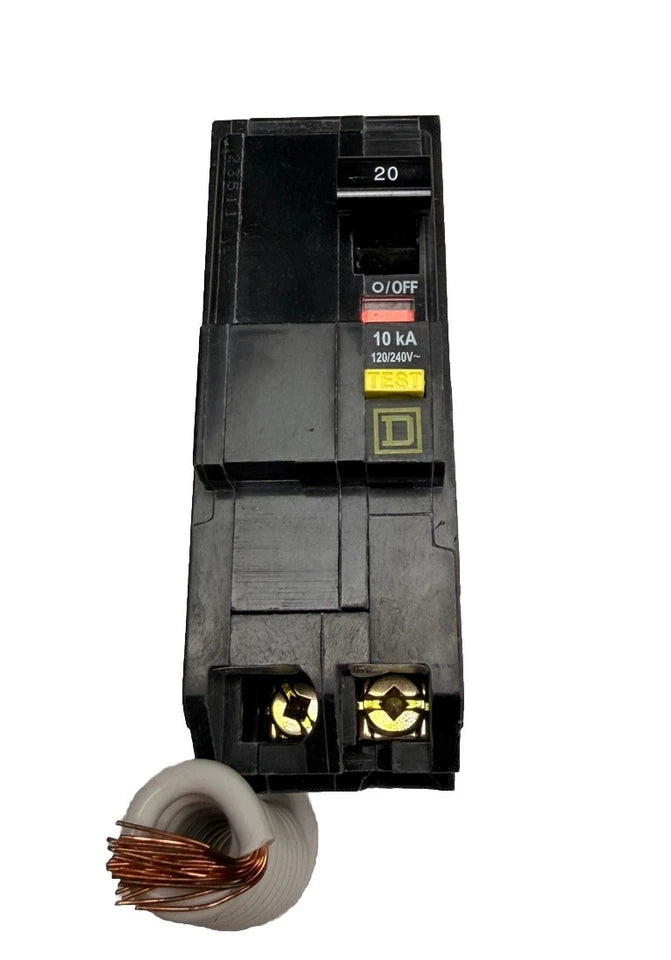

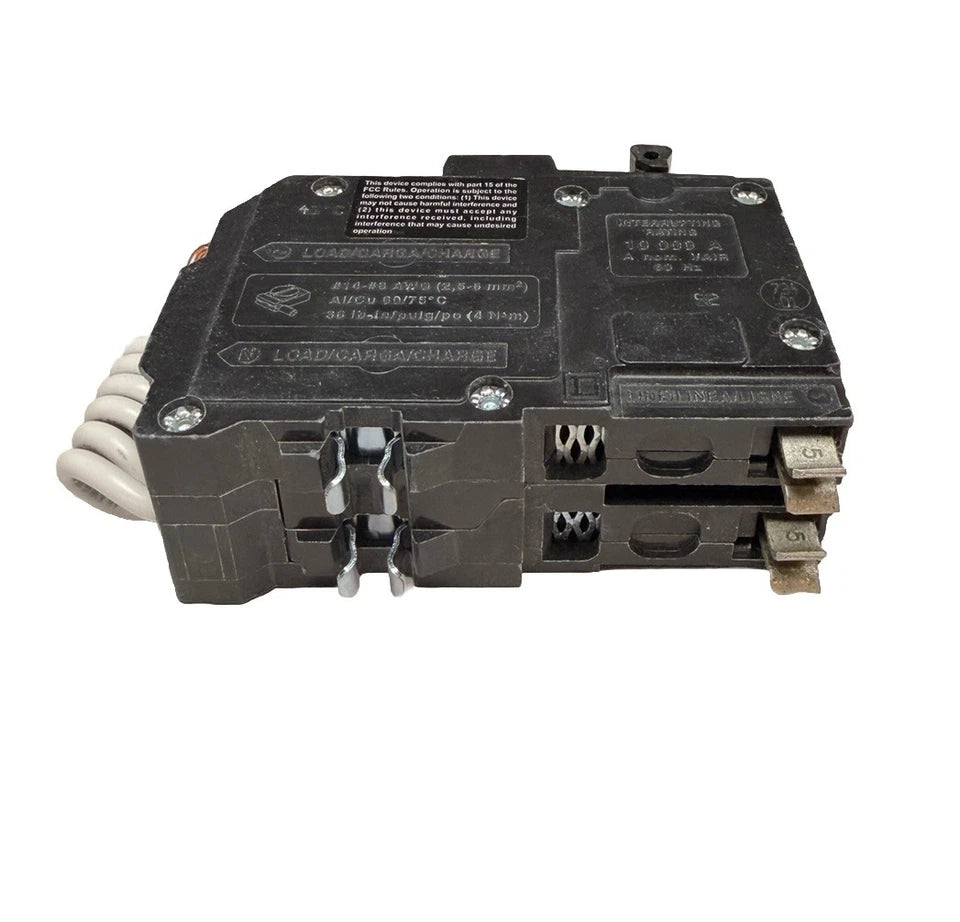

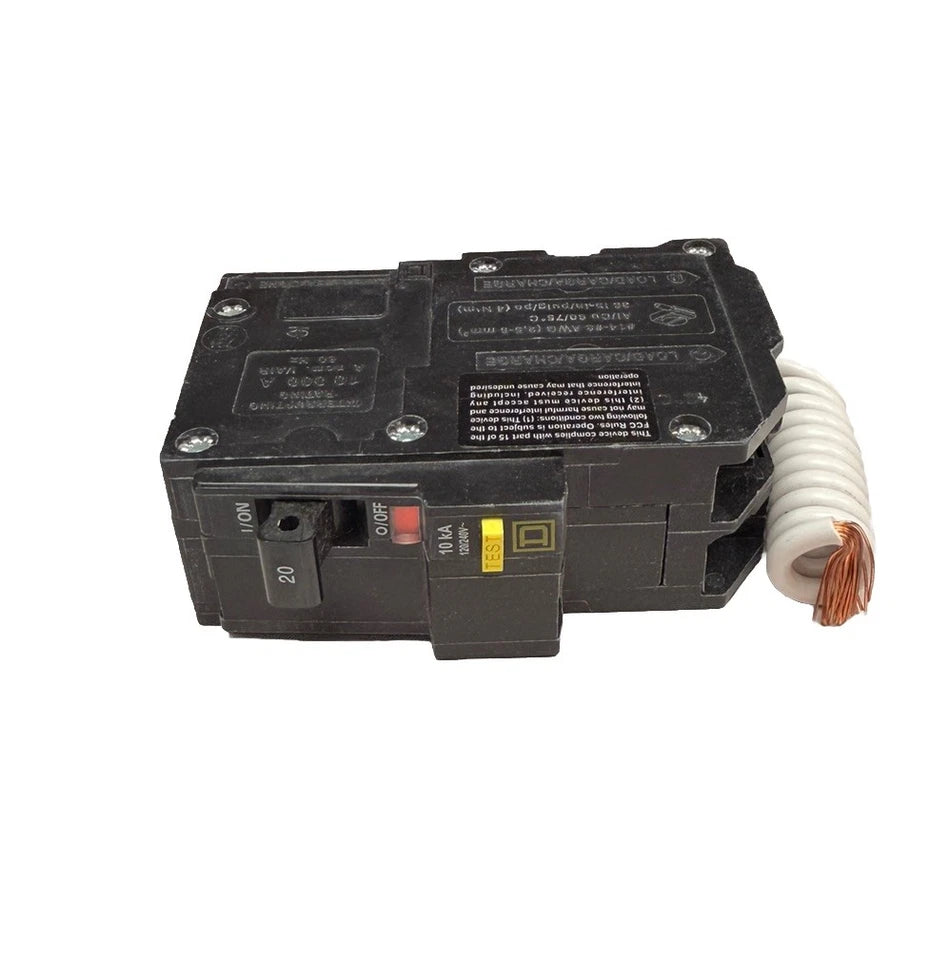

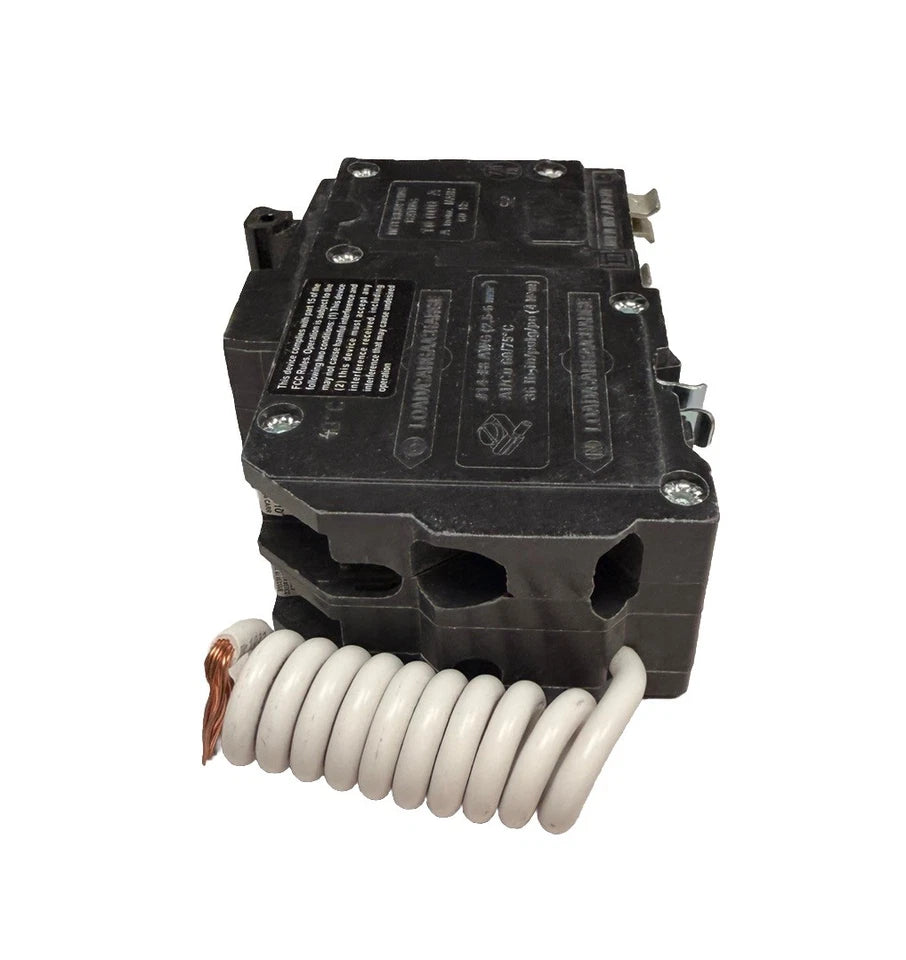

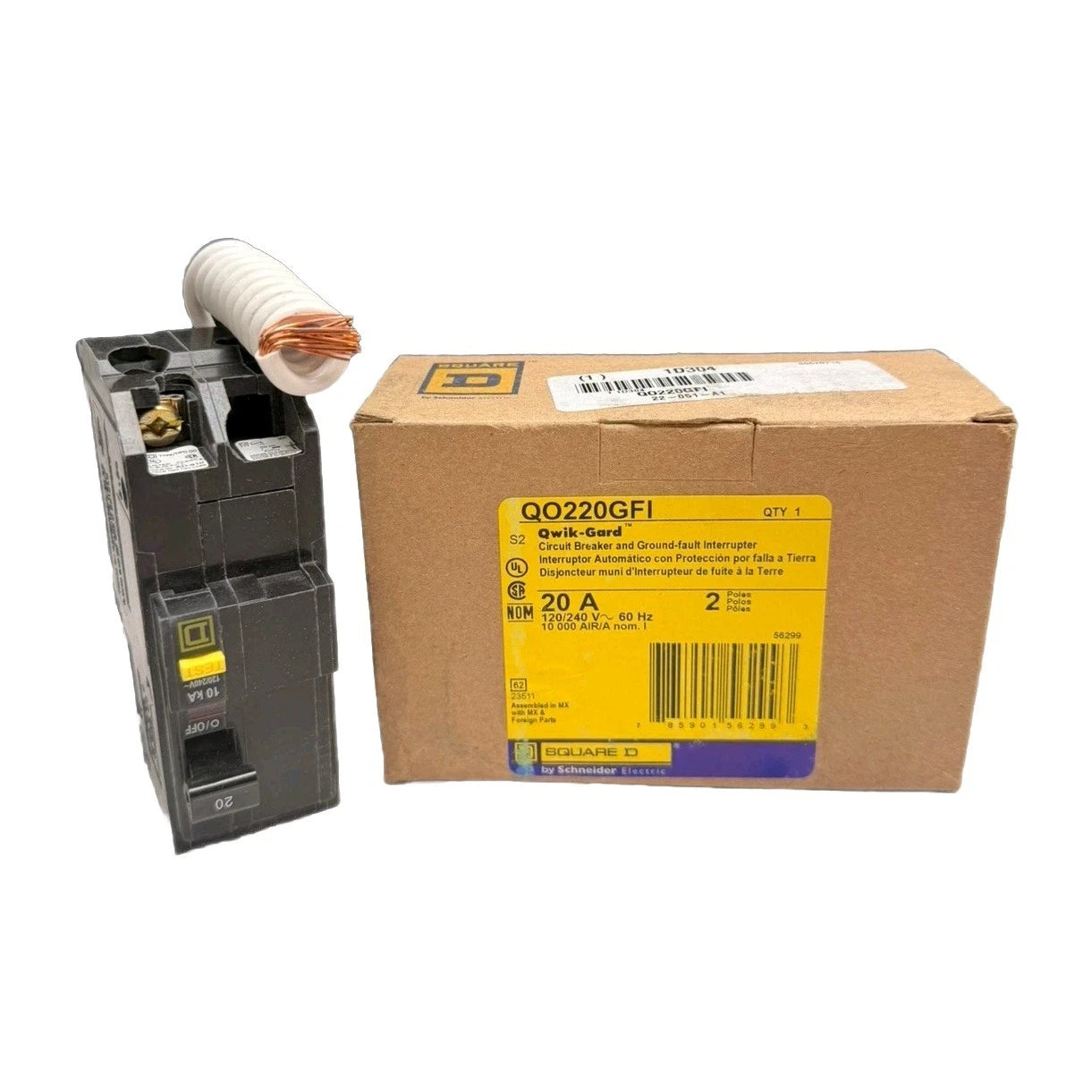

QO220GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $127.00
- Sale price
- $127.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO220GFI
Description
The QO220GFI Mini Circuit Breaker, belonging to the QO series, is a 20A, 2-pole device designed for providing overcurrent protection and switching on both AC and DC systems. Operating at 120/240VAC, it offers a breaking capacity of 10kA and features a plug-in mounting configuration. Equipped with a 6mA ground fault protection and pigtail, this circuit breaker ensures enhanced safety. It incorporates an over-center, trip-free toggle mechanism with quick make and break action, along with VisiTrip trip indication for visual confirmation of tripping
Technical Specifications
|
Part # |
QO220GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120/240 V AC, 10 kA 120 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.13 in (105 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
1.00 lb(US) (0.454 kg) |
Information About QO220GFI
The QO220GFI is a Mini Circuit Breaker within the QO series, designed to provide overcurrent protection and switching capabilities for both AC and DC systems. These circuit breakers feature an over center, trip-free toggle mechanism, ensuring quick make and break actions with a positive handle indication. Additionally, they are equipped with VisiTrip trip indication, offering a visual signal when the circuit breaker trips and interrupts the circuit.
A comprehensive range of features and factory-installed accessories are available for these circuit breakers, including shunt trips, auxiliary switches, and alarm switches. The QO220GFI is a 2-pole circuit breaker rated at 20A for operation at 120/240VAC. It offers a breaking capacity of 10kA and is designed for plug-in mounting.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
