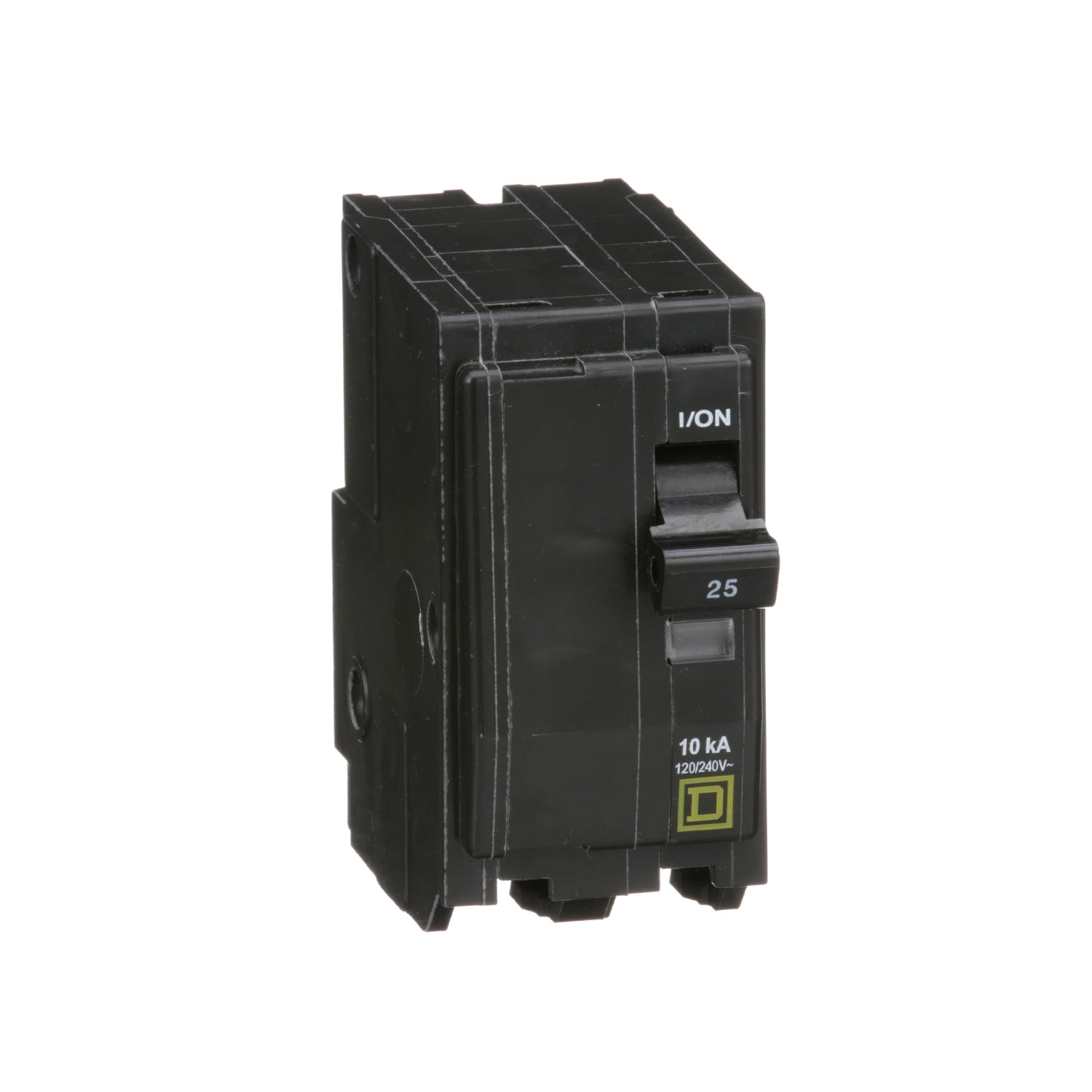

QO225 | Schneider Electric Mini Circuit Breaker
QO225 | Schneider Electric Mini Circuit Breaker
Part #: QO225 Manufactured by: Schneider Electric

QO225 | Schneider Electric Mini Circuit Breaker

Regular price
$75.00
Sale price
$75.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The QO225 is a mini circuit breaker manufactured by Schneider Electric under the QO series. Designed for both residential ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QO225
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QO225 | Schneider Electric Mini Circuit Breaker
    QO225 | Schneider Electric Mini Circuit Breaker
QO225 | Schneider Electric Mini Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QO225

Description / Specifications

Description

The QO225 is a miniature circuit breaker designed by Square D, belonging to the QO series. It operates as a two-pole thermal magnetic circuit breaker, offering overcurrent protection and switching capability for both AC and DC systems.

Featuring an over-center, trip-free toggle mechanism with quick-make, quick-break action, and positive handle indication, this circuit breaker ensures efficient operation. It includes VisiTrip trip indication, providing a visual signal when the circuit breaker trips and interrupts the circuit.



Technical Specifications

Part #

QO225

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Product Range

Miniature circuit-breaker

Current Rating

25 A

Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

2P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Pressure plate

Interrupt Rating

10 kA 120/240 V AC, 10 kA 120 V AC

Number of Panel Spaces

2

Wire Size

AWG 14...AWG 8 copper or aluminum

Tightening Torque

35.40 lbf.in (4 N.m)

Height

2.99 in (76 mm)

Width

1.50 in (38 mm)

Depth

2.91 in (74 mm)

Net Weight

0.55 lb (0.249 kg)



Information About QO225

QO225 is a mini circuit breaker manufactured by Schneider Electric. It belongs to the QO series and is designed for residential and commercial electrical systems. This circuit breaker is a two-pole device with a current rating of 25A and is suitable for use in 120/240VAC systems.

The QO series circuit breakers, including the QO225, are known for their reliability and performance in providing overcurrent protection and switching in both AC and DC electrical systems. They feature an over-center, trip-free toggle mechanism with quick make and quick break action, ensuring efficient operation. Additionally, they are equipped with a positive handle indication for easy identification of the breaker's status.

One notable feature of the QO series circuit breakers is the VisiTrip trip indication system, which provides a visual indication when the circuit breaker trips and interrupts the circuit. This feature enhances safety and allows for quick identification of circuit faults.
