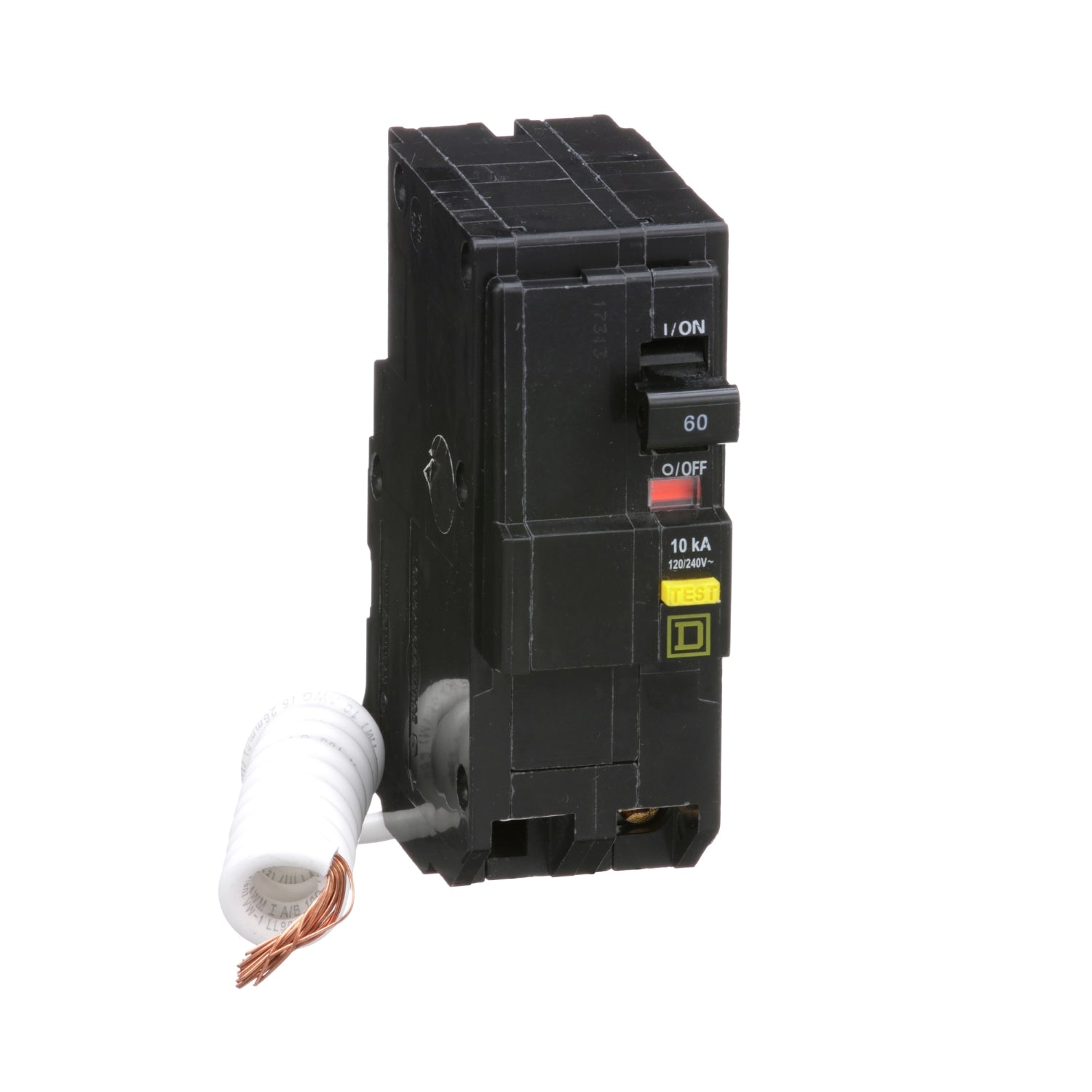

QO260GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $185.00
- Sale price
- $185.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO260GFI
Description
The QO260GFI Mini Circuit Breaker, part of the QO series by Schneider Electric, is a 2-pole thermal magnetic circuit breaker designed to provide overcurrent protection and switching capabilities for both AC and DC systems. Featuring an over center, trip-free toggle mechanism, it ensures quick make and quick break action, along with positive handle indication for ease of operation.
Equipped with VisiTrip trip indication, the QO260GFI visually alerts users when the circuit breaker trips, indicating that the circuit has been interrupted. Additionally, a comprehensive range of features and factory-installed accessories, such as shunt trips, auxiliary switches, and alarm switches, are available for enhanced functionality.
Technical Specifications
|
Part # |
QO260GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
60 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Box lugs |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 12...AWG 4 aluminium |
|
Tightening Torque |
44.25 lbf.in (5 N.m) |
|
Height |
4.13 in (105 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.98 lb(US) (0.445 kg) |
Information About QO260GFI
The QO260GFI Mini Circuit Breaker, part of the QO series, is a 60A, 2-pole device designed for use in both residential and commercial electrical systems. It operates on 120/240VAC and offers a breaking capacity of 10kA. The circuit breaker features a plug-in mounting configuration for easy installation.
One of the key features of the QO series is its thermal magnetic mechanism, providing reliable overcurrent protection and switching capabilities for both AC and DC systems. This mechanism includes an over-center, trip-free toggle for quick and efficient operation. Additionally, the circuit breaker is equipped with VisiTrip trip indication, offering a visual signal when the breaker has tripped and interrupted the circuit.
The QO260GFI also includes a ground fault protection feature rated at 6mA, ensuring safety against ground faults. This specific model comes with a pigtail for convenient connection.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
