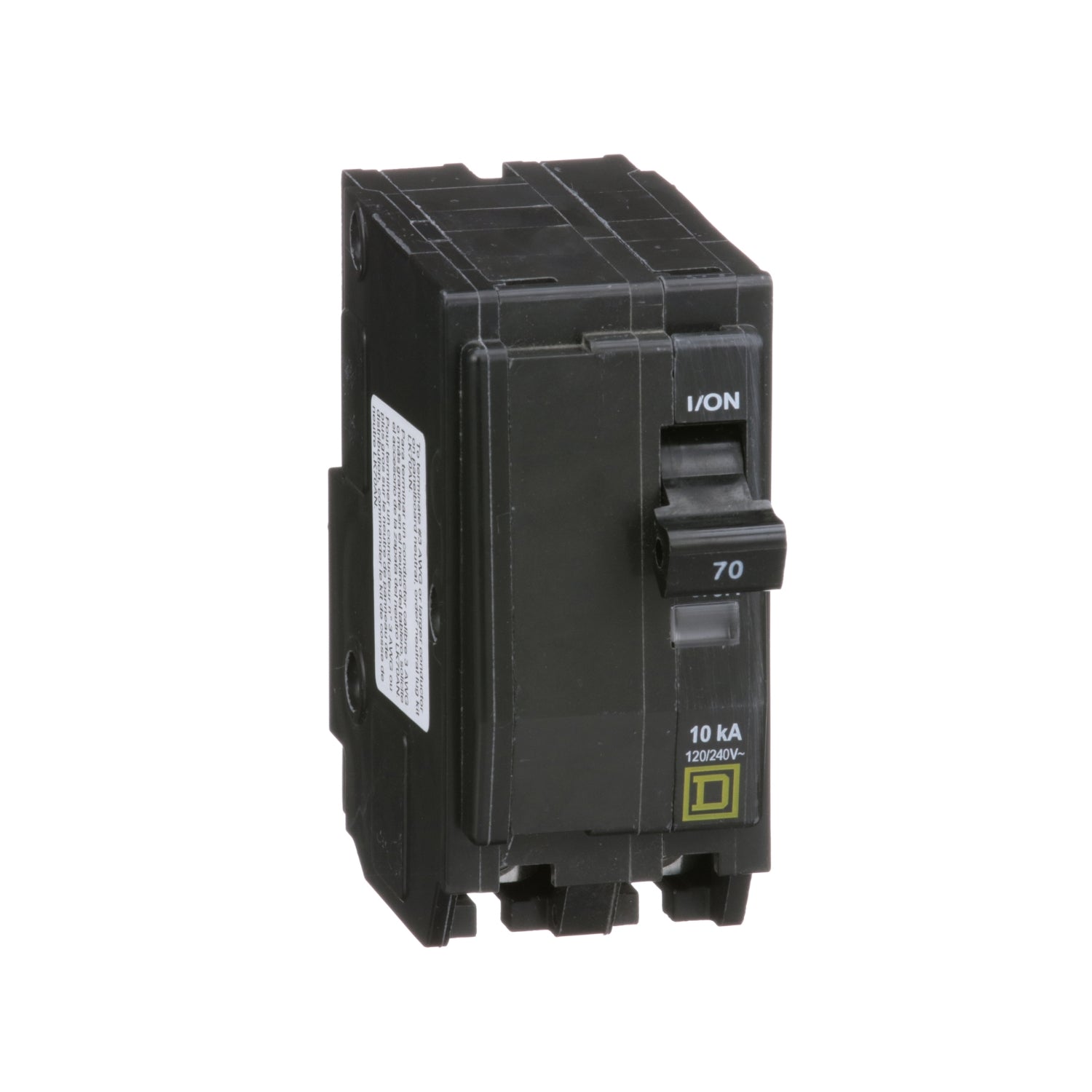

QO270 | Schneider Electric QO Series 70A 120/240V 2-Pole Thermal Magnetic Circuit Breaker
- Regular price
- $32.00
- Sale price
- $32.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO270
Description
The Schneider Electric QO270 is a 70-amp miniature circuit breaker designed for dependable protection in 120/240-volt single-phase electrical systems. Its thermal-magnetic trip mechanism provides accurate overload and short-circuit interruption, making it suitable for residential and light commercial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QO270 |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 70 A |
| Connection Type | Box Lug |
| Dimensions | 2.91 in L × 1.5 in W × 3 in H |
| Frame | QO |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug-On / Plug-In |
| Number of Poles | 2 |
| Phase | 1 |
| Temperature Rating | 40°C (104°F) |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| Voltage Rating | 120/240 VAC |
| Wire Size | 8 to 2 AWG |
| Application | Residential & Light Commercial Load Centers |
Information About QO270
The QO270 is a two-pole circuit breaker from Schneider Electric’s QO Series engineered for reliable branch-circuit protection in single-phase systems up to 120/240 volts. Its 70-amp rating supports higher-capacity residential and light commercial loads, while the thermal-magnetic trip unit provides balanced protection against overloads and short-circuit events. The breaker installs easily using a plug-on mounting system into QO load centers, and its box lug terminals accommodate wire sizes from 8 to 2 AWG for secure conductor termination. With a 10 kA interrupting rating and compact QO frame, the QO270 is well suited for environments requiring durable, space-efficient circuit protection.
Key Features
- 70-Amp High-Capacity Rating: Supports larger single-phase loads such as subpanels, HVAC equipment, and high-demand appliances.
- Thermal-Magnetic Trip Mechanism: Provides dependable response to both sustained overloads and instantaneous fault conditions.
- Two-Pole Construction: Ensures simultaneous disconnection of both legs of a 120/240-volt system for enhanced safety.
- Plug-On Mounting: Enables quick installation and secure engagement in Schneider Electric QO load centers.
- 10 kA Interrupt Rating: Effectively clears significant fault currents to protect wiring and connected equipment.
- Box Lug Terminations: Accommodates 8–2 AWG conductors for strong, reliable electrical connections.
- Compact QO Frame Design: Fits within standard panelboard spaces while maintaining robust electrical performance.
- 40°C Temperature Rating: Suitable for typical indoor electrical environments found in residential and light commercial buildings.
The QO270 delivers the reliability and precision required for protecting high-capacity 120/240-volt branch circuits in residential and light commercial electrical systems.
