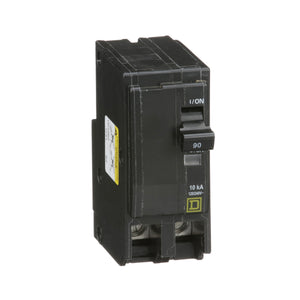

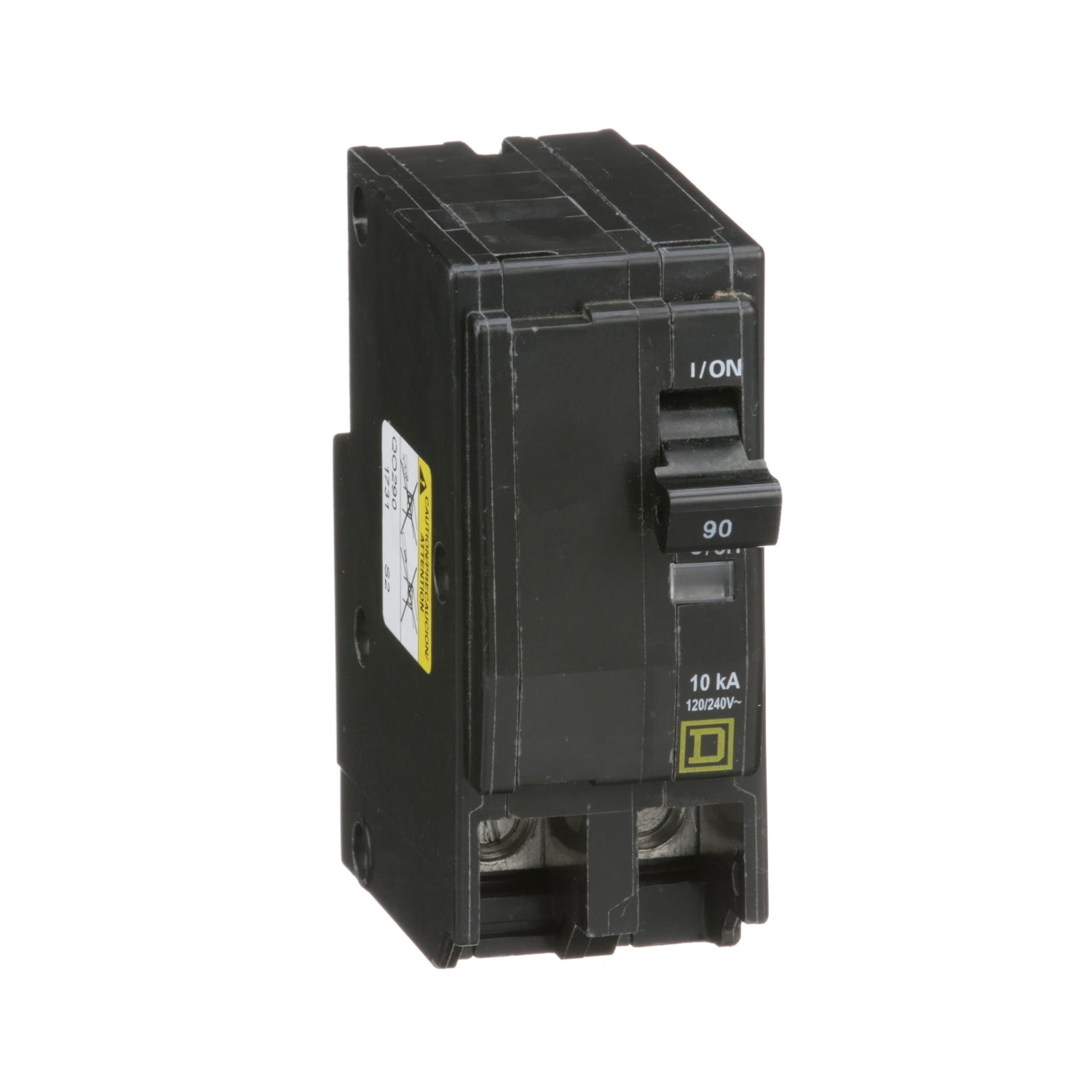

QO290 | Schneider Electric Mini Circuit Breaker
- Regular price
- $130.00
- Sale price
- $130.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO290
Description
The Schneider Electric QO290 Mini Circuit Breaker, part of the QO Series, operates at 120/240V and is rated for 90A. It features a 2-pole design, providing thermal magnetic protection with LI (Long-Time and Instantaneous) functions. This plug-in breaker has an AIC rating of 10kA@240V and suits single-phase systems.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO290 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage | 90 Amp |
| Applications | HACR rated |
| Circuit Breaker Type | Standard |
| Conductor Size | 4-2/0 AWG |
| Current | 90 Amp |
| Interrupt Rating | 10 kAIC |
| Line Rated Current | 90 A |
| Mounting Type | Plug-in |
| Number of Poles | 2 Pole |
| Operating Temperature | 40 Adegrees C |
| Short Circuit Current | 10 kA |
| TC Connection | Box lugs |
| Type | Miniature circuit-breaker |
| Voltage | 120 Volt |
| Wire Size | AWG 4...AWG 2/0 copper or aluminium |
Information About QO290
The QO290 by Schneider Electric is a robust miniature circuit breaker designed for residential and light commercial applications, ensuring reliable protection against overloads and short circuits. With a current rating of 90 amps and an interrupt rating of 10 kAIC, it is well-suited for HACR (Heating, Air Conditioning, and Refrigeration) rated systems, offering enhanced safety in electrical installations.
This two-pole circuit breaker is characterized by its plug-in mounting type, facilitating straightforward installation and maintenance. It operates effectively within a temperature range of up to 40 degrees Celsius, making it suitable for various environmental conditions. The QO290 accommodates wire sizes ranging from AWG 4 to AWG 2/0 for both copper and aluminum conductors, ensuring flexibility in wiring configurations.
Equipped with box lugs for secure connections and rated at 120 volts, this breaker supports the reliable distribution of electrical power while minimizing the risk of damage due to overcurrent events. Its design adheres to standard miniature circuit-breaker configurations, optimizing compatibility with existing electrical panels and setups.
Overall, the QO290 from Schneider Electric combines robust construction with versatile specifications, making it an ideal choice for safeguarding electrical circuits in diverse residential and light commercial settings.
