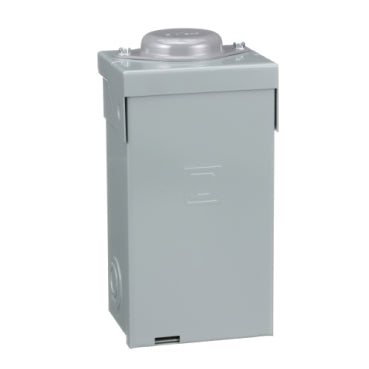

QO2L40RB | Schneider Electric Load Center
- Regular price
- $82.00
- Sale price
- $82.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO2L40RB
Description
The QO2L40RB is a Load Center designed for residential and industrial applications, part of the QO series. It features a 1-phase configuration with 2 spaces and 2 circuits, providing ample capacity for electrical distribution needs. Equipped with 40A fixed main lugs, this load center offers reliable power distribution.
Constructed with a NEMA 3R enclosure, it ensures protection against harsh outdoor conditions. QO Load Centers are engineered to accommodate various types of breakers, including ground fault interrupters, arc fault interrupters, and surge arresters, providing comprehensive protection for electrical systems, equipment, and personnel.
Technical Specifications
|
Part # |
QO2L40RB |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Convertible Mains (lugs) |
PoN |
|
|
Fixed |
|
Rated Current |
40 A |
|
Number of Spaces |
2 |
|
Max Short Circuit Current Rating |
65 kA |
|
Maximum Number of Single Pole Circuits |
2 |
|
Maximum Number of Tandem Breakers |
0 |
|
Number of Phases |
1 phase 3-wire |
|
Voltage Rating |
120/240 V AC |
|
Wire Size |
AWG 14...AWG 6 copper |
|
|
AWG 12...AWG 6 aluminium |
|
Ground Bar |
Grounding bar (ordered separately) |
|
Electrical Connection |
Lugs |
|
Busbar Material |
Tin plated aluminium: busbar |
|
Enclosure Material |
Welded galvannealed steel |
|
Surface Finish |
Baked enamel Gray |
|
Box Number |
1R |
|
Height |
9.37 in (238 mm) |
|
Width |
4.88 in (124 mm) |
|
Enclosure Rating |
NEMA 3R weatherproof enclosure |
|
Ambient Air Temperature for Operation |
23 °F (-5 °C) |
|
|
104 °F (40 °C) |
|
Product Certifications |
UL Listed |
Information About QO2L40RB
The QO2L40RB is a load center designed by Square D under the QO series, offering premium features suitable for residential and industrial applications. These load centers are engineered to safeguard electrical systems, equipment, and individuals. They accommodate QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters within their enclosure.
Available in both traditional and plug-on neutral configurations, QO Load Centers provide flexibility in installation. They come with three types of mains: main circuit breaker, main lugs, and generator panel, catering to diverse requirements. Options for single and three-phase configurations ensure compatibility with various electrical setups.
Constructed with tin-plated copper bus bars, the load centers ensure efficient power distribution while maintaining durability. The bus bars are shielded for added safety. Additionally, QO Load Centers offer versatility in installation, with options for indoor and outdoor enclosures.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
