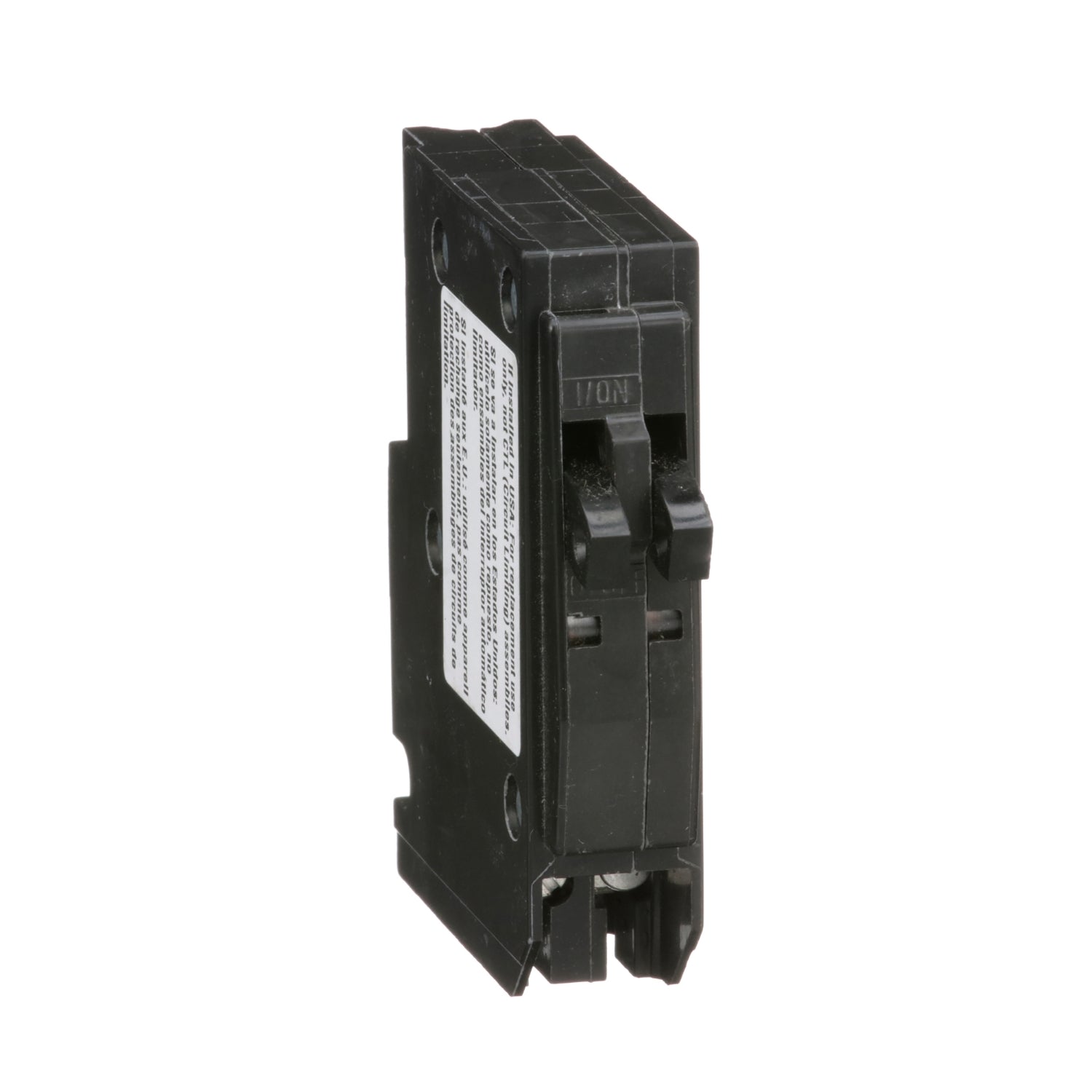

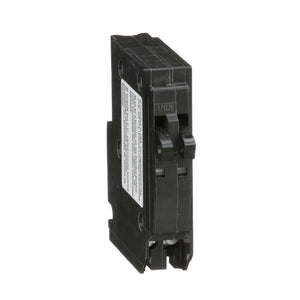

QO3020 | Schneider Electric Tandem Mini Circuit Breaker
QO3020 | Schneider Electric Tandem Mini Circuit Breaker
QO3020 | Schneider Electric Tandem Mini Circuit Breaker
    QO3020 | Schneider Electric Tandem Mini Circuit Breaker
QO3020 | Schneider Electric Tandem Mini Circuit Breaker

QO3020 | Schneider Electric Tandem Mini Circuit Breaker

Part #: QO3020 Manufactured by: Schneider Electric
Regular price
$142.00
Sale price
$142.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The QO3020 tandem mini circuit breaker, manufactured by QO, is designed to provide overcurrent protection and switching fo...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: QO3020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: QO3020

Description / Specifications

Description

The QO3020 is a Tandem Mini Circuit Breaker from the QO series, designed to offer overcurrent protection and switching capabilities for both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers ensure reliable operation with a trip-free toggle mechanism for quick make and break actions. Additionally, they incorporate a VisiTrip trip indication system, providing a visual cue when the breaker trips.

This specific QO tandem mini circuit breaker consists of one pole rated at 30A and another pole rated at 20A, suitable for 120/240VAC systems. With a breaking capacity of 10kA, it ensures effective protection against overloads and short circuits. The plug-in mounting design facilitates easy installation.



Technical Specifications

Part #

QO3020

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

QO

Current Rating

20 A

30 A



Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Tandem

Ratings

HACR rated

Electrical Connection

Box lugs

Interrupt Rating

10 kA 120/240 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening Torque

24.78 lbf.in (2.8 N.m)

Height

3.23 in (82 mm)

Width

0.75 in (19 mm)

Depth

2.91 in (74 mm)

Net Weight

0.34 lb(US) (0.154 kg)



Information About QO3020

QO3020 is a tandem mini circuit breaker manufactured by QO, designed for electrical systems requiring overcurrent protection and switching on AC and DC systems. It belongs to the QO range of products. This circuit breaker features a tandem configuration, consisting of one 1-pole breaker rated at 20A and another 1-pole breaker rated at 30A. It operates at a voltage of 120/240VAC.

The QO3020 tandem mini circuit breaker incorporates a thermal magnetic trip mechanism, ensuring efficient protection against overloads and short circuits. Its over center, trip-free toggle mechanism facilitates quick make and quick break actions, enhancing operational efficiency. Additionally, the breaker includes a VisiTrip trip indication feature, providing a visual alert when the breaker trips, indicating circuit interruption.

Manufactured with robust construction and reliability in mind, the QO3020 tandem mini circuit breaker is equipped with a variety of features. These include a positive handle indication for easy identification of operational status. Furthermore, it is compatible with a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, offering flexibility and customization options.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The QO3020 is a Tandem Mini Circuit Breaker from the QO series, designed to offer overcurrent protection and switching capabilities for both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers ensure reliable operation with a trip-free toggle mechanism for quick make and break actions. Additionally, they incorporate a VisiTrip trip indication system, providing a visual cue when the breaker trips.

This specific QO tandem mini circuit breaker consists of one pole rated at 30A and another pole rated at 20A, suitable for 120/240VAC systems. With a breaking capacity of 10kA, it ensures effective protection against overloads and short circuits. The plug-in mounting design facilitates easy installation.



Technical Specifications

Part #

QO3020

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

QO

Current Rating

20 A

30 A



Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Tandem

Ratings

HACR rated

Electrical Connection

Box lugs

Interrupt Rating

10 kA 120/240 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening Torque

24.78 lbf.in (2.8 N.m)

Height

3.23 in (82 mm)

Width

0.75 in (19 mm)

Depth

2.91 in (74 mm)

Net Weight

0.34 lb(US) (0.154 kg)



Information About QO3020

QO3020 is a tandem mini circuit breaker manufactured by QO, designed for electrical systems requiring overcurrent protection and switching on AC and DC systems. It belongs to the QO range of products. This circuit breaker features a tandem configuration, consisting of one 1-pole breaker rated at 20A and another 1-pole breaker rated at 30A. It operates at a voltage of 120/240VAC.

The QO3020 tandem mini circuit breaker incorporates a thermal magnetic trip mechanism, ensuring efficient protection against overloads and short circuits. Its over center, trip-free toggle mechanism facilitates quick make and quick break actions, enhancing operational efficiency. Additionally, the breaker includes a VisiTrip trip indication feature, providing a visual alert when the breaker trips, indicating circuit interruption.

Manufactured with robust construction and reliability in mind, the QO3020 tandem mini circuit breaker is equipped with a variety of features. These include a positive handle indication for easy identification of operational status. Furthermore, it is compatible with a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, offering flexibility and customization options.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
