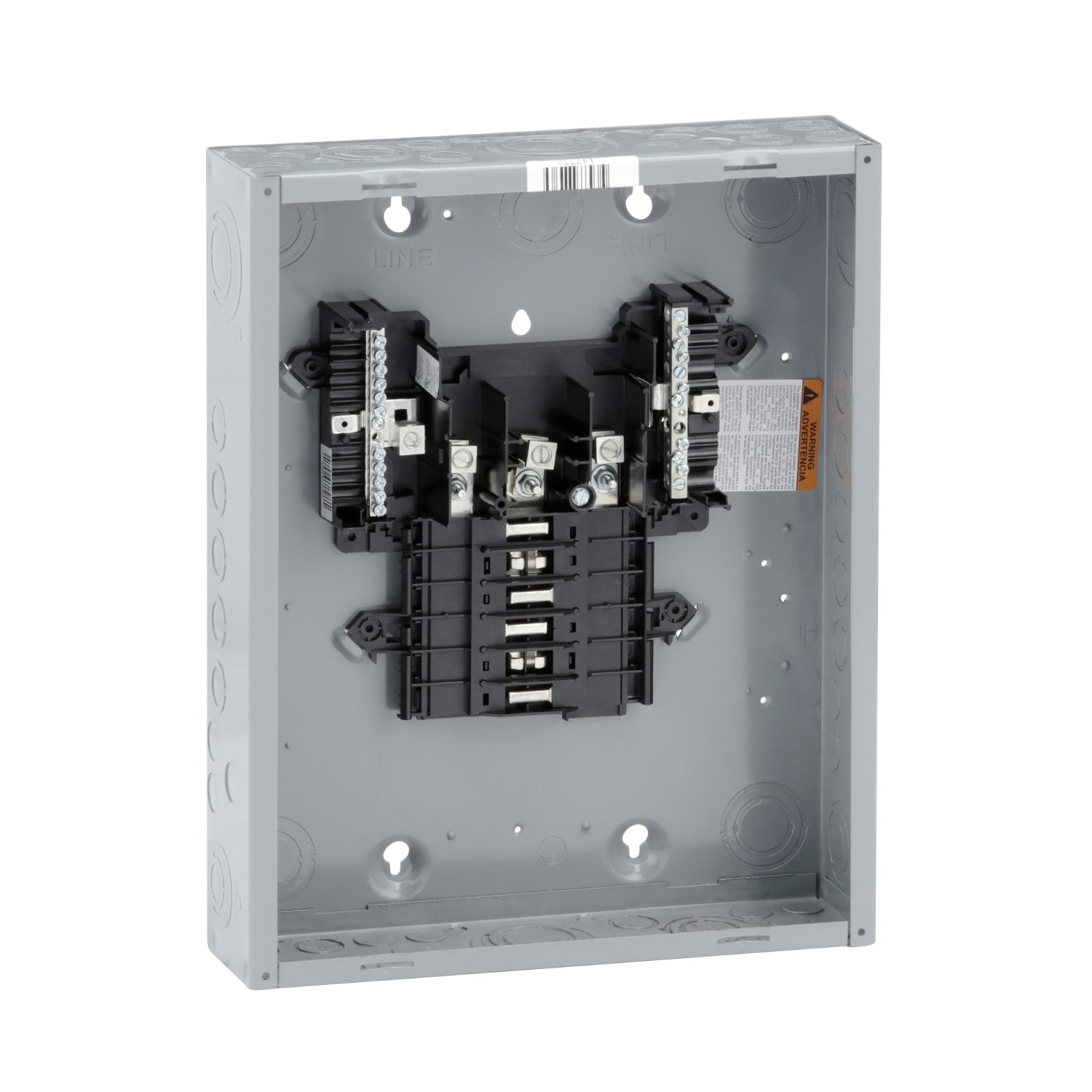

QO312L125G | Schneider Electric Load Center
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO312L125G
Description
The QO312L125G is a Load Center belonging to the QO series, designed for 3-phase electrical systems. It offers 12 spaces and 12 circuits, providing essential protection for residential and industrial electrical systems. Equipped with 125A fixed main lugs, it ensures reliable power distribution within its NEMA 1 enclosure. Additionally, this load center features a ground bar and holds UL certification, guaranteeing compliance with safety standards. QO Load Centers accommodate various breaker types including ground fault interrupters, arc fault interrupters, and surge arresters, catering to diverse application needs. Available in both traditional and plug-on neutral configurations, they support single and three-phase options.
Technical Specifications
|
Part # |
QO312L125G |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board Marketing Trade Name |
|
Subcategory |
QO |
|
Product Type |
Load Center |
|
Cover Type |
Order separately |
|
Tightening Torque |
Main lugs: 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
|
Tightening Torque |
Cover: 20 lb.in |
|
PoN Convertible Mains (lugs) |
Fixed Mains (lugs) |
|
Rated Current |
125 A |
|
Number of Spaces |
12 |
|
Max Short Circuit Current Rating |
65 kA |
|
Maximum Number of Single Pole Circuits |
12 |
|
Maximum Number of Tandem Breakers |
0 |
|
Number of Phases |
3 phase |
|
Wire Size |
AWG 6...AWG 2/0 aluminium/copper |
|
Ground Bar |
Grounding bar included (not installed) |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire |
|
Wiring Configuration |
4-wire |
|
Busbar Material |
Tin plated copper: busbar |
|
Enclosure Material |
Welded sheet steel |
|
Surface Finish |
Baked enamel Gray |
|
Box Number |
6 |
|
Height |
17.91 in (455 mm) |
|
Width |
14.25 in (362 mm) |
|
Enclosure Rating |
NEMA 1 indoor |
|
Ambient Air Temperature for Operation |
23 °F (-5 °C) |
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
|
Product Certifications |
UL Listed |
Information About QO312L125G
The QO312L125G is a Load Center manufactured under the QO series, designed to accommodate a variety of protective devices including QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters. These Load Centers are engineered to safeguard electrical systems, equipment, and individuals, making them suitable for both residential and industrial applications. Available in traditional and plug-on neutral configurations, they offer versatility to meet diverse installation requirements.
QO Load Centers are equipped with three main types: main circuit breaker, main lugs, and generator panel, providing flexibility in power distribution setups. They support both single and three-phase options to cater to different system configurations. The bus bars within these Load Centers are constructed from tin-plated copper and are shielded to enhance safety and performance.
Enclosure options include indoor and outdoor variants, providing adaptability to various installation environments. QO Load Centers facilitate the integration of a comprehensive range of accessories, ensuring compatibility with different system needs and configurations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
