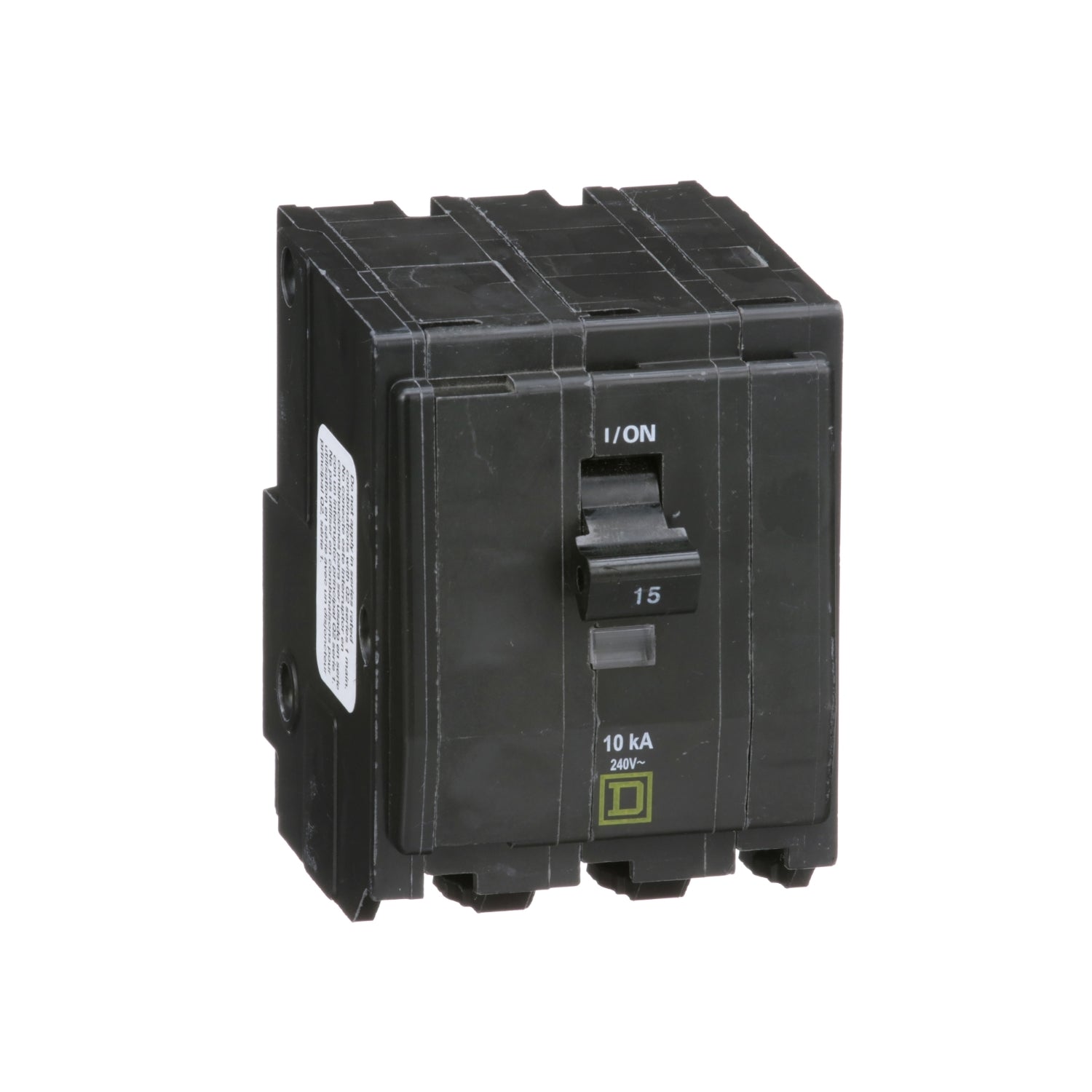

QO315 | Schneider Electric Mini Circuit Breaker
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO315
Description
Square D Miniature Circuit Breaker, 240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 2.25 in W x 2.91 in D Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO315 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 15 A |
| Connection type | Pressure Plate |
| Dimensions | 2.91 in L x 2.25 in W x 3 in H |
| Frame | QO |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Mounting type | Plug-On |
| Number of Poles | 3 |
| Phase | 3 |
| Temperature Rating (Degrees F) | 104, 40, 40 deg C |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| Voltage Rating | 240 VAC |
| Wire Size | 14 to 10 AWG, 14 to 8 AWG |
Information About QO315
The QO315 from Schneider Electric is a reliable Mini Circuit Breaker designed for residential and light commercial applications, providing essential circuit protection. With a 15 A amperage rating and a voltage rating of 240 VAC, it supports three-phase electrical systems.
Featuring a pressure plate connection type, the QO315 ensures secure and dependable electrical connections suitable for wire sizes ranging from 14 to 10 AWG for aluminum and 14 to 8 AWG for copper. Its compact dimensions of 2.91 inches in length, 2.25 inches in width, and 3 inches in height make it easy to install in electrical panels.
The QO315 employs a thermal magnetic trip mechanism, offering reliable protection against overloads and short circuits. It operates at a frequency rating of 50/60 Hz and has an interrupt rating of 10 kA, ensuring effective performance in interrupting fault currents and maintaining electrical system safety.
Designed for plug-on mounting, the QO315 facilitates straightforward installation and replacement in compatible Schneider Electric QO series panels. It operates efficiently within a temperature range of 104 degrees Fahrenheit (40 degrees Celsius), making it suitable for standard residential and light commercial environments.
The QO315 is part of Schneider Electric's standard type Mini Circuit Breakers, known for their durability, efficiency, and adherence to safety standards, making them a preferred choice for protecting circuits in residential and light commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
