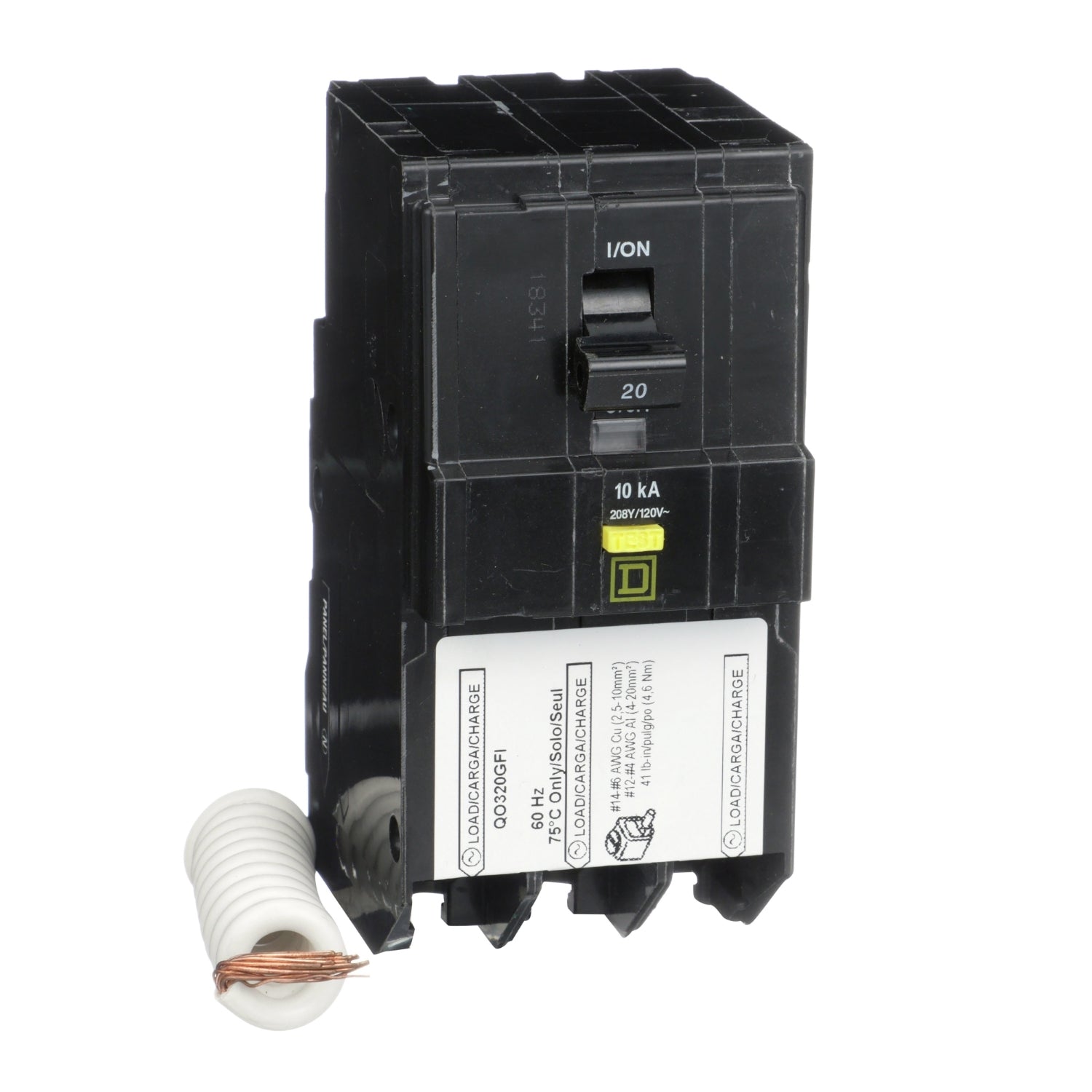

QO320GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO320GFI
Description
The QO320GFI is a miniature circuit breaker from the QO range, rated at 20A, 3 poles, and 208Y/120VAC. It has a 10kA interrupting capacity and uses plug-in mounting. This breaker features a thermal magnetic trip unit for overcurrent protection, offering both overload and short-circuit protection. It includes a 6mA ground fault protection with a pigtail.
Technical Specifications
|
Part # |
QO320GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
208Y/120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 208Y/120 V AC 50/60 Hz |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
|
AWG 12...AWG 8 aluminium |
|
Tightening torque |
40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) AWG 16...AWG 14) |
|
|
40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) AWG 12...AWG 4) |
|
Height |
104.65 mm (4.12 in) |
|
Depth |
73.91 mm (2.91 in) |
|
Width |
57.15 mm (2.25 in) |
Information About QO320GFI
The QO320GFI is a three-pole miniature circuit breaker from the QO series designed by Schneider Electric. QO and QOB thermal magnetic circuit breakers, available in one, two, and three poles, offer overcurrent protection and switching capabilities for both AC and DC systems. Featuring an over-center, trip-free toggle mechanism, these breakers ensure quick make and break actions with positive handle indication. They are equipped with VisiTrip trip indication, providing a clear visual signal when the breaker trips and interrupts the circuit. Various factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches are available for added functionality.
Specifically, the QO320GFI circuit breaker is rated for 20A at 208Y/120VAC. It features a 10kA breaking capacity and utilizes a plug-in mounting configuration. This model includes a 6mA ground fault protection mechanism type A with a pigtail connection. QO circuit breakers conform to UL standards under UL File E84967 and hold CSA certification under CSA Master Contract 153555, ensuring compliance with rigorous safety and performance standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
