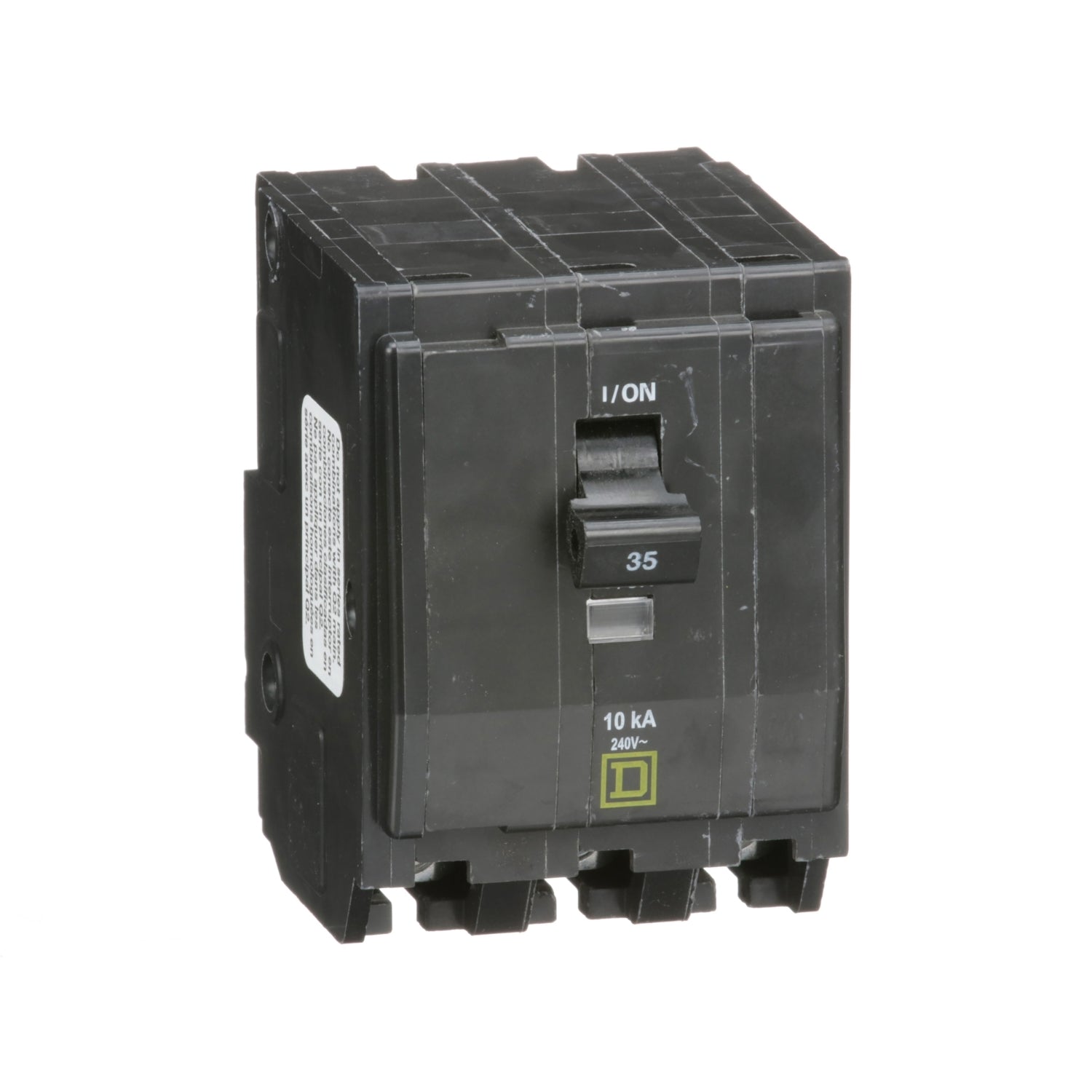

QO335 | Schneider Electric Mini Circuit Breaker
- Regular price
- $92.00
- Sale price
- $92.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO335
Description
The QO335 is a compact and versatile Mini Circuit Breaker from the QO series, designed to deliver reliable overcurrent protection and switching capabilities for both AC and DC systems. Featuring a robust thermal magnetic trip mechanism, QO and QOB circuit breakers incorporate an over center, trip-free toggle mechanism with quick-make, quick-break action for efficient operation. They include positive handle indication for clear status visibility.
Technical Specifications
|
Part # |
QO335 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
35 A |
|
Mounting Type |
Plug-in |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 8...AWG 2 copper or aluminium |
|
Tightening Torque |
40.71 lbf.in (4.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.81 lb(US) (0.367 kg) |
Information About QO335
The QO335 Mini Circuit Breaker, part of the QO series by Schneider Electric, offers robust thermal magnetic protection for both AC and DC systems. Available in one, two, and three pole configurations, QO circuit breakers feature an over center, trip-free toggle mechanism ensuring quick make and break actions with positive handle indication. They are equipped with VisiTrip indicators, providing visual alerts when the breaker trips to interrupt the circuit.
Designed for versatility, QO circuit breakers support various factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, enhancing their functionality in different applications. The QO335 model specifically is a 35A, 3-pole circuit breaker rated for operation at 120/240VAC. It offers a robust 10kA breaking capacity, ensuring reliable overcurrent protection under demanding conditions.
Installation is straightforward with its plug-in mounting design, facilitating easy integration into electrical panels without the need for complex wiring procedures. QO circuit breakers adhere to stringent safety standards, including UL Listing under UL File E84967 and CSA Certification under CSA Master Contract 153555, ensuring compliance with regulatory requirements and standards for electrical equipment.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
