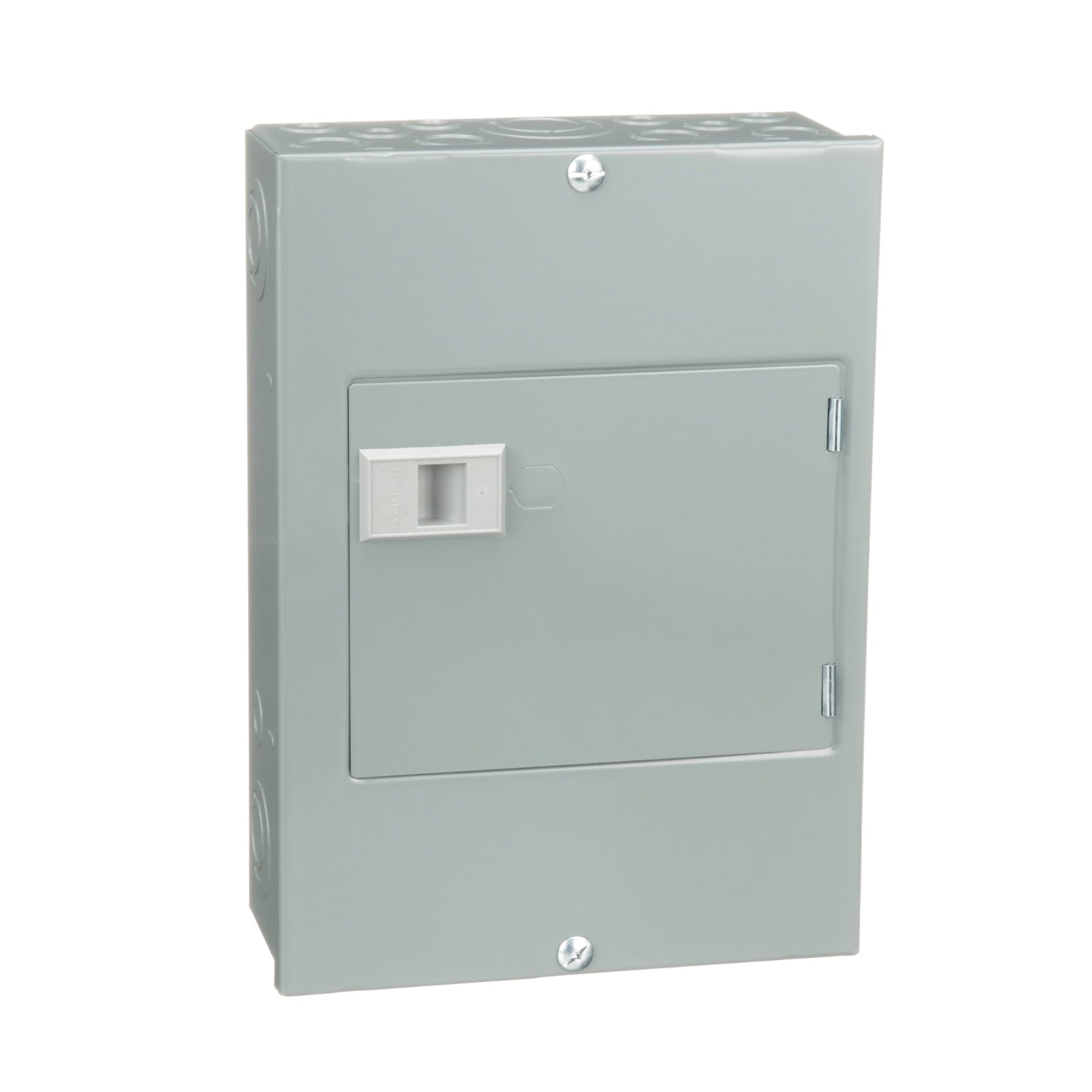

QO612L100DS | Schneider Electric Load Center, QO, 1 Phase
- Regular price
- $127.00
- Sale price
- $127.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO612L100DS
Description
The QO612L100DS Load Center from Schneider Electric's QO series is designed to provide comprehensive protection for electrical systems in residential and industrial settings. QO Load Centers accommodate QO breakers, ground fault interrupters (GFIs), arc fault interrupters (AFIs), and surge arresters, offering versatility in installation options. They are available in traditional and plug-on neutral configurations, supporting three types of mains: main circuit breaker, main lugs, and generator panels. Both single and three-phase configurations are available to meet varying power supply needs.
Featuring tin-plated copper bus bars with shielding, QO Load Centers ensure reliable performance and durability. They are offered in indoor and outdoor enclosures to suit different installation environments. This 1-phase load center specifically provides 6 spaces and supports up to 12 circuits. It is equipped with 100A fixed main lugs and housed in a NEMA 1 enclosure for enhanced safety and protection.
Technical Specifications
|
Part # |
QO612L100DS |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Marketing Trade Name |
QO |
|
Product Type |
Loadcentre |
|
Cover Type |
Surface cover with door |
|
Load Center Type |
Fixed Mains (lugs) |
|
Rated Current |
100 A |
|
Number of Spaces |
6 |
|
Max Short Circuit Current Rating |
10 kA |
|
Maximum Number of Single Pole Circuits |
12 |
|
Maximum Number of Tandem Breakers |
6 |
|
Number of Phases |
1 phase 3-wire |
|
Voltage Rating |
120/240 V AC |
|
Wire Size |
AWG 8...AWG 1 aluminum/copper |
|
Ground Bar |
Grounding bar (ordered separately) |
|
Electrical Connection |
Lugs |
|
Busbar Material |
Tin plated aluminum |
|
Enclosure Material |
Welded sheet steel |
|
Surface Finish |
Baked enamel grey |
|
Box Number |
4 |
|
Height |
12.56 in (319 mm) |
|
Width |
8.90 in (226 mm) |
|
Depth |
3.74 in (95 mm) |
Information About QO612L100DS
The QO612L100DS Load Center, part of the QO series, is designed to accommodate QO breakers, ground fault interrupters (GFIs), arc fault interrupters (AFIs), and surge arresters, facilitating comprehensive protection for electrical systems, equipment, and personnel. Suitable for both residential and industrial applications, QO Load Centers are available in traditional and plug-on neutral configurations, offering flexibility in installation.
This load center supports three main types: main circuit breaker, main lugs, and generator panel configurations, catering to varied electrical setup requirements. It operates on a single-phase system and provides 6 spaces with the capacity for up to 12 circuits. Featuring 100A fixed main lugs, it is housed in a NEMA 1 enclosure, ensuring robust protection in indoor environments.
Constructed with tin-plated copper bus bars that are shielded, the load center maintains reliable electrical conductivity while minimizing the risk of electrical faults. It supports a wide range of accessories, enhancing its adaptability to diverse application needs.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
