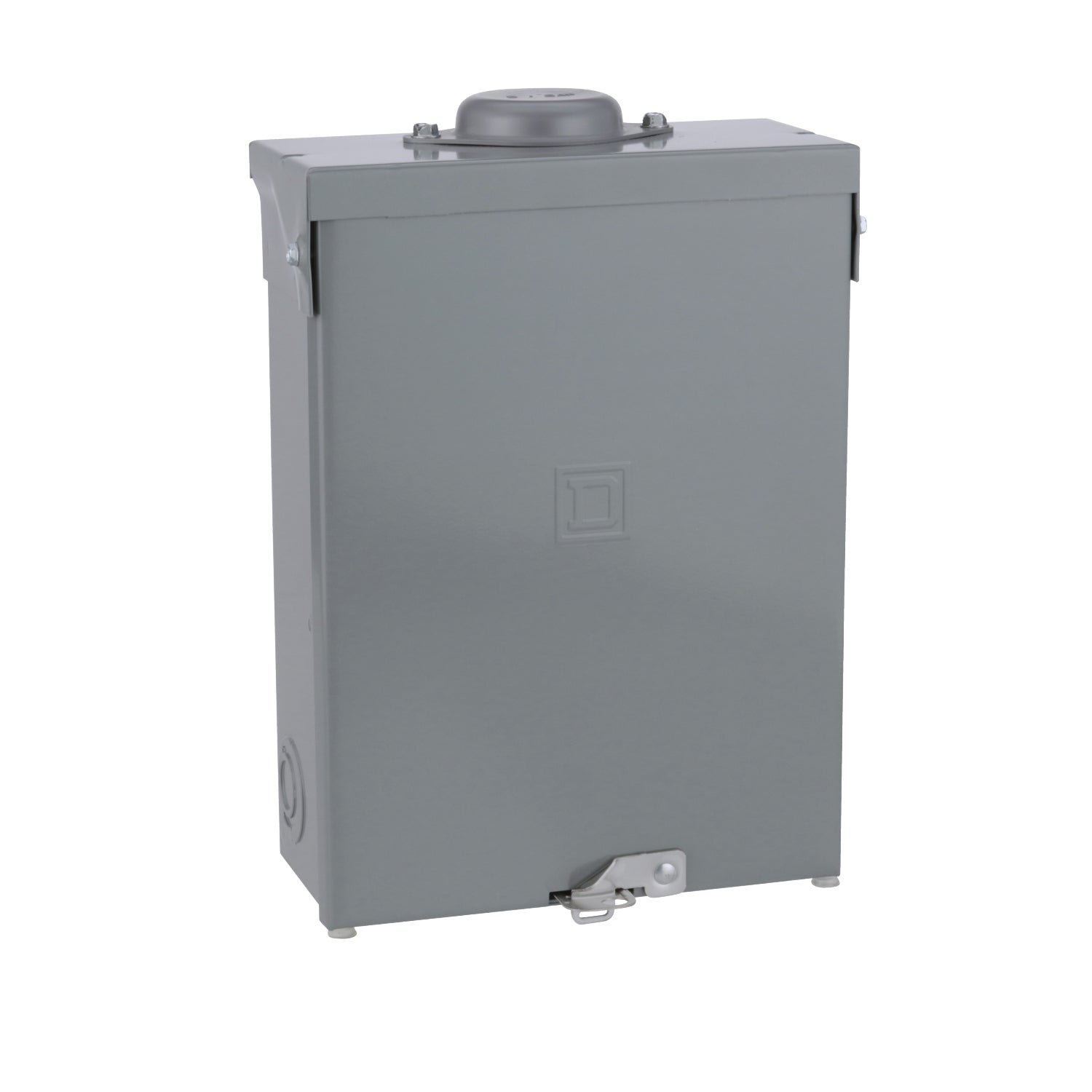

QO612L100RB | Schneider Electric Load Center
- Regular price
- $115.00
- Sale price
- $115.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QO612L100RB
Description
Square D QO Main Lug Loadcenter, 1-ph Fixed, 120/240 VAC, 100 A, 1 Pole, 50/60 Hz, 10 kA Interrupt, 12 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 6 Spaces, 8 to 1 AWG Wire, Bolt-On Mount, NEMA 3R, Galvanized Steel Housing, 8.89 in W x 4.27 in D x 12.64 in H.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QO612L100RB |
| Category | Circuit Breaker |
| Subcategory | Load Center/Panel Board |
| Amperage Rating | 100 A |
| Breaker Mounting | Panel |
| Breaker Type | QO |
| Dimensions | 8.89 in W x 4.27 in D x 12.64 in H |
| Enclosure Type | NEMA 3R |
| Frequency Rating | 50/60 Hz |
| Housing material | Galvanized Steel |
| Interrupt Rating | 10 kA |
| Mounting type | Bolt-On |
| Number of Circuits | 12 |
| Number of Poles | 1 |
| Number of Spaces | 6 |
| Type | 1-Phase Fixed |
| Voltage Rating | 120/240 VAC |
| Wire Size | 8 to 1 AWG |
| Wiring Configuration | 3-Wire |
Information About QO612L100RB
The QO612L100RB by Schneider Electric is a robust load center designed for residential and light commercial applications. It features a 100 ampere rating and accommodates QO type circuit breakers, offering reliable electrical distribution.
Measuring 8.89 inches in width, 4.27 inches in depth, and 12.64 inches in height, this panel is constructed from galvanized steel, providing durability and protection in outdoor environments with its NEMA 3R enclosure.
The load center supports 1-phase fixed configurations with a voltage rating of 120/240 volts AC and a frequency rating of 50/60 Hz, suitable for standard residential power requirements. It includes 12 circuits and 6 spaces for efficient breaker installation, accommodating wire sizes from 8 to 1 AWG.
With a bolt-on mounting type and an interrupting capacity of 10,000 amps (10 kA), the QO612L100RB ensures safe operation by effectively managing electrical faults. It is ideal for applications where space efficiency, reliability, and ease of installation are essential, making it a preferred choice for residential and light commercial electrical distribution needs.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
