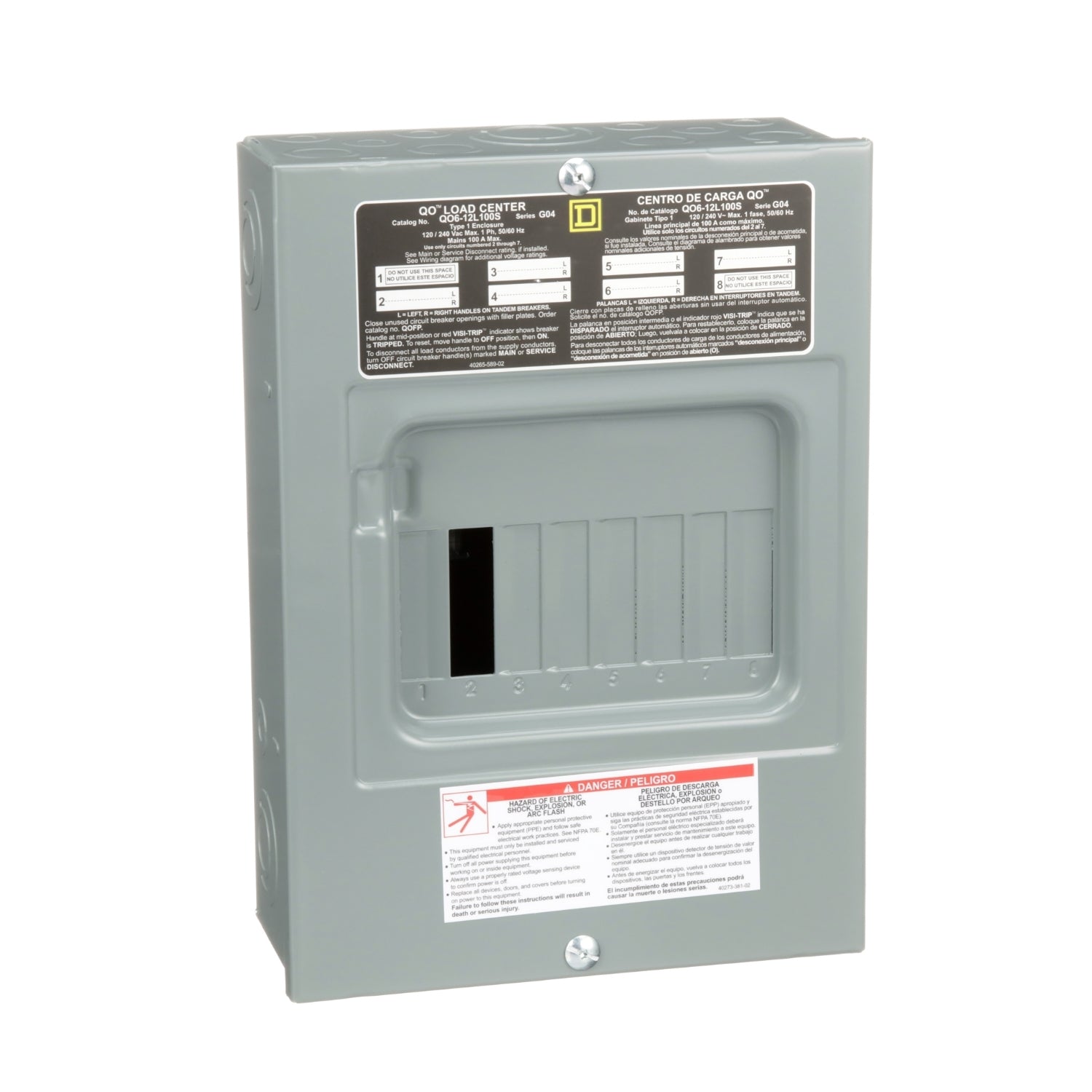

QO612L100S | Schneider Electric Load Center, QO, 1 Phase, 6 Spaces
- Regular price
- $64.00
- Sale price
- $64.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QO612L100S
Description
The QO612L100S is a load center designed to accommodate QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters, offering premium features for residential and industrial applications. It provides protection for electrical systems, equipment, and individuals.
Available in both traditional and plug-on neutral configurations, QO Load Centers offer three types of mains: main circuit breaker, main lugs, and generator panel, catering to diverse needs. They come in single and three-phase options, with tin-plated copper bus bars that are shielded for enhanced safety.
Technical Specifications
|
Part # |
QO612L100S |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Rated Current |
100 A |
|
Number of Spaces |
6 |
|
Max Short Circuit Current Rating |
10 kA |
|
Maximum Number of Single Pole Circuits |
12 |
|
Maximum Number of Tandem Breakers |
6 |
|
Number of Phases |
1 phase 3-wire |
|
Voltage Rating |
120/240 V AC |
|
Wire Size |
AWG 8...AWG 1 aluminium/copper |
|
Ground Bar |
Grounding bar (ordered separately) |
|
Electrical Connection |
Lugs |
|
Busbar Material |
Tin plated aluminium: busbar |
|
Enclosure Material |
Welded sheet steel |
|
Surface Finish |
Baked enamel Gray |
|
Box Number |
4 |
|
Height |
12.56 in (319 mm) |
|
Width |
8.90 in (226 mm) |
Information About QO612L100S
QO Load Centers are distinguished by their ability to accommodate QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters internally. Primarily designed for residential and industrial applications, they serve to safeguard electrical systems, equipment, and individuals. These load centers are available in both traditional and plug-on neutral configurations, offering versatility to suit various needs.
Three types of mains are accessible: main circuit breaker, main lugs, and generator panel, catering to diverse requirements. Single and three-phase options provide further flexibility. The bus bars, made of tin-plated copper, are shielded, ensuring efficient and safe operation. Enclosures, available for both indoor and outdoor use, enhance adaptability to different installation environments.
QO Load Centers facilitate the utilization of a comprehensive range of accessories, further enhancing their functionality and utility. The featured 1-phase load center comprises 6 spaces and accommodates up to 12 circuits, offering ample capacity for electrical installations. Equipped with 100A fixed main lugs, it provides reliable power distribution within a NEMA 1 enclosure, ensuring protection against environmental factors.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
