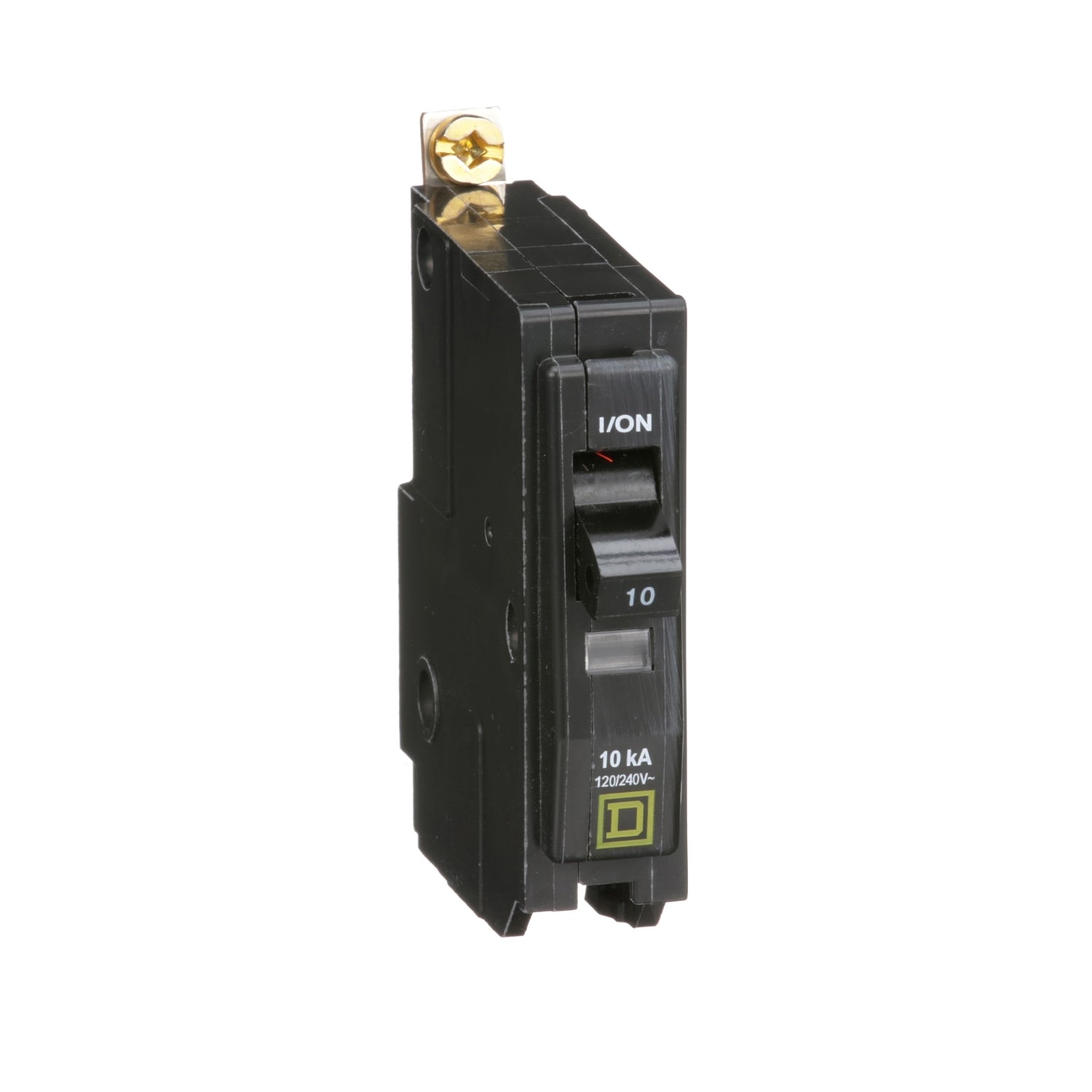

QOB110 | Schneider Electric QO 10A 1-Pole Bolt-On Miniature Circuit Breaker 120/240V
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOB110
Description
The Schneider Electric QOB110 is a QO series miniature circuit breaker designed for branch circuit protection and switching applications. This 1-pole breaker is rated at 10 A and operates at 120/240 V AC, using a thermal magnetic trip mechanism. It features bolt-on mounting and integrated VisiTrip indication for clear visual confirmation of circuit interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOB110 |
| Subcategory | Load Center Circuit Breaker |
| Product Range | QO Miniature Circuit Breaker |
| Current Rating | 10 A |
| Voltage Rating | 120/240 V AC, 120 V AC |
| Number of Poles | 1 |
| Mounting Type | Bolt-on |
| Circuit Breaker Type | Standard |
| Interrupt Rating | 10 kA at 120/240 V AC |
| Number of Panel Spaces | 1 |
| HACR Rated | Yes |
| Electrical Connection | Pressure plate |
| Wire Size Range | AWG 14–AWG 8 (Cu/Al) |
| Tightening Torque | 35.40 lbf·in (4 N·m) |
| Height | 2.99 in (76 mm) |
| Width | 0.75 in (19 mm) |
| Depth | 2.91 in (74 mm) |
| Weight | 0.29 lb (0.132 kg) |
Information About QOB110
The QOB110 is a Schneider Electric QO series miniature circuit breaker engineered for reliable overcurrent protection in residential and commercial electrical panels. It features a single-pole design with bolt-on mounting for secure installation in compatible QO load centers. The breaker uses a thermal magnetic trip mechanism combined with an over-center, trip-free toggle for consistent operation. It is commonly used in branch circuits where dependable protection, compact size, and clear trip indication are required.
Key Features
- QO Series Compatibility: Designed for use in Schneider Electric QO load centers and panelboards.
- 10 Amp Current Rating: Suitable for low-current branch circuit protection and control applications.
- Single-Pole Configuration: Supports 120 V and 120/240 V AC branch circuits.
- Thermal Magnetic Trip Mechanism: Provides combined overload and short-circuit protection.
- VisiTrip Indicator: Offers a visual indication when the breaker trips to simplify troubleshooting.
- Bolt-On Mounting Design: Ensures secure mechanical and electrical connection within the panel.
- Quick Make/Quick Break Operation: Delivers fast, positive switching with clear handle position indication.
The QOB110 delivers the reliability and precision required for branch circuit protection in Schneider Electric QO electrical distribution systems.
